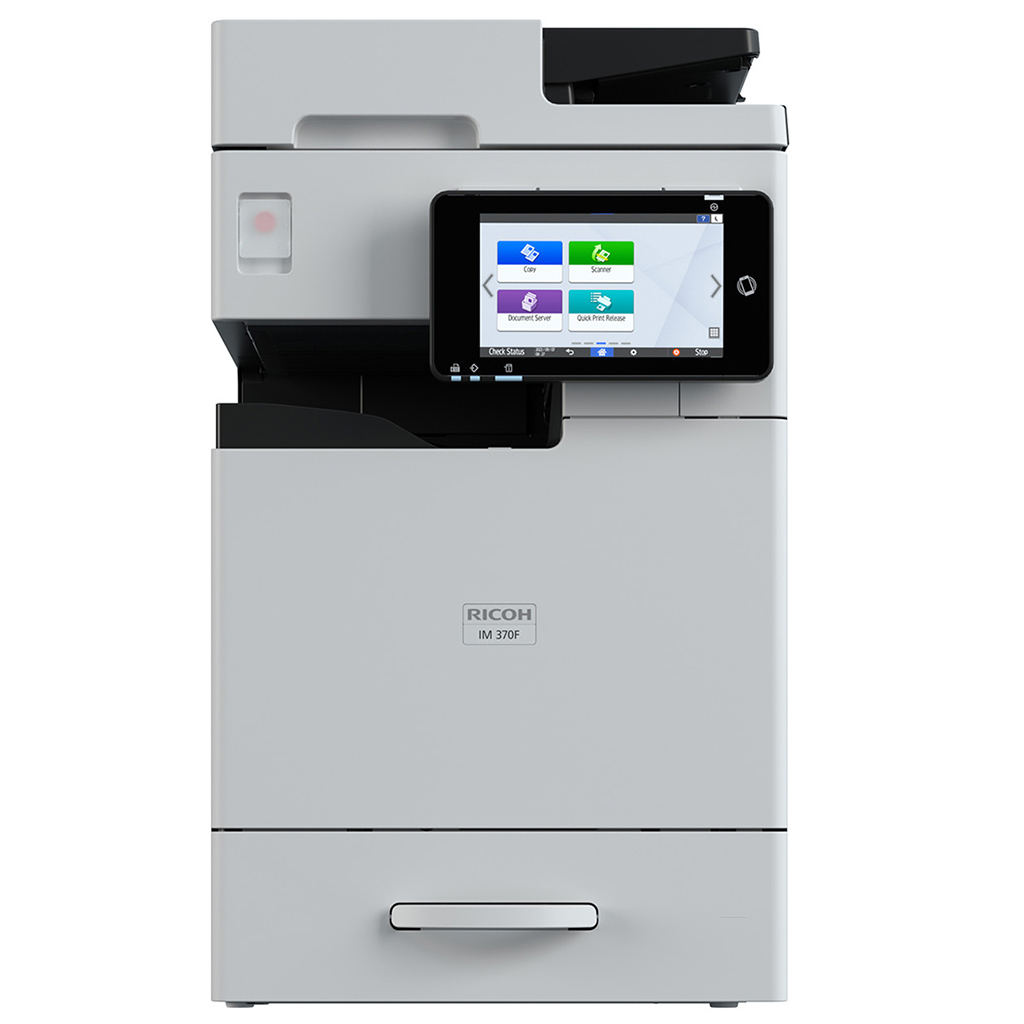

IM 370F A4 black and white multifunction printer

  • Prints up to 37 ppm
  • A3 capability
  • 7" Smart Operation Panel
  • RICOH Always Current Technology
配置您的設備

    Make it your own

    Do work your way by personalising and enhancing the capabilities of your MFP with applications and solutions readily available from the cloud with RICOH Smart Integration.

    Enhanced performance and productivity

    Experience the benefits of fast black and white print and colour scan speeds and enjoy the added convenience of A3 capabilities in a compact A4 form factor when needed.

    1. Reliable data protection
      A host of upgraded features, such as enhanced privileged account control and tighter integration with Windows and LDAP platforms, provide improved security.
    2. Smooth operation
      Latest generation Smart Operation Panel marries powerful features with fast and simple navigation for a smooth and productive user experience.
    3. RICOH Always Current Technology
      Download and install security and software updates directly to your device as they become available.
    4. Environmentally responsible
      The outer mainframe uses 17% post-consumer recycled materials while the toner bottles are made from 100% recycled plastics.

    Download PDF brochure

    Specifications

    功用
    Copy, print, scan, fax
    色彩
    No
    存儲
    eMMC 64 GB
    記憶體 - 標準
    6 GB (Mainframe 2 GB + Smart Operation Panel 4 GB)
    操作板面
    7" Smart Operation Panel
    實體尺寸（長闊高）—大型機
    374 x 493 x 640 mm
    重量—大型機
    41 kg
    標準輸入量（張）
    600
    最大輸入量（張）
    2,100
    標準輸出量（張）
    250
    最大輸出量（張）
    250
    紙張輸入配置 - 標準
    500-sheet paper input tray, 100-sheet bypass tray, duplex unit, 50-sheet SPDF
    紙張輸出配置 - 標準
    250 sheets—A4 LEF or smaller
    100 sheets—Larger than A4 LEF
    支援媒體
    Plain paper (type not displayed), recycled paper, special paper 1–2, colour paper, letterhead, pre-printed paper, OHP, label paper, envelope
    最大紙張尺寸
    A3—via bypass tray, SPDF
    媒體量
    52–216
    介面 - 標準

    Mainframe
    10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
    USB Host Type A—1 port
    USB Device Type B—1 port

    Smart Operation Panel

    Bluetooth 5.2
    USB Host Type A—1 port for USB Flash memory
    Optional USB Type A—1 port for NFC card reader


    介面 - 可選
    IEEE 802.11a/b/g/n (2.4 GHz, 5 GHz)—Wireless LAN
    Device Server Option Type M54—additional 10Base T/100Base TX/1000Base-T port
    網路協議 - 標準
    TCP/IP (IPv4, IPv6)
    影印速度

    Single document, multiple copies
    37 cpm—via platen
    37 cpm—via SPDF

    Multiple documents, single copy
    28 cpm—via SPDF

    首次影印時間
    4.7 seconds—via platen
    6.4 seconds—via SPDF
    影印解像度
    600 x 600 dpi—printing
    300 x 600 dpi—scanning, 200%
    600 x 600 dpi—scanning, 201%
    縮放範圍
    25%–400% in 1% steps
    雙面影印
    Supported
    書本影印
    Booklet, magazine, layout and booklet
    身份證影印
    Supported
    黑白列印速度
    37 ppm—A4 LEF, simplex
    28 ppm—A4 LEF, duplex
    首次列印時間
    3.8 seconds
    列印解像度
    1,200 x 1,200 dpi
    頁面描述語言

    Standard
    PostScript 3 emulation, PDF Direct emulation, PCL, MediaPrint TIFF

    Optional
    Genuine Adobe PostScript 3, IPDS

    印表機驅動程式
    PCL 5e, PCL 6, PostScript 3
    雙面列印
    Standard
    行動列印
    Yes
    從USB/SD列印
    Supported
    掃瞄速度

    A4 LEF, via SPDF, 200 dpi, 300 dpi
    46 ipm or faster—simplex
    92 ipm or faster—duplex

    掃瞄模式

    Scan to USB, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to Searchable PDF (embedded), Scan to Digitally Signed PDF
    Note: Optional OCR unit required for Scan to Searchable PDF.

    色彩掃瞄
    Standard
    掃瞄解像度
    100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
    Note: 1,200 dpi is only supported with TWAIN scanning.
    掃瞄至檔案類型
    Single-and multi-page TIFF
    Single-page JPEG
    Single- and multi-page PDF, PDF/A
    掃瞄至電子郵件
    Protocols
    SMTP gateway, TCP/IP

    Authentication
    SMTP authentication, POP before SMTP authentication

    Scan resolution
    100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

    Scan to email file types
    TIFF, JPEG, PDF, PDF-A, High Compression PDF, Encrypted PDF, Searchable PDF
    Note: Optional OCR unit required for Scan to Searchable PDF.
    掃瞄至資料夾

    Protocols
    SMB, FTP

    Security
    Client folder logon, encryption of logon name and password during transmission

    Scan resolution
    100 pi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

    Search for client folders
    Supported

    Scan to folder file types
    Searchable PDF, single-page JPEG, single-page PDF, single-page PDF/A, single-page TIFF, single-page high compression PDF, searchable PDF, multi-page multi page PDF/A, multi-page TIFF, multi-page high compression PDF

    TWAIN掃瞄

    Scan mode
    Standard, Photo, OCR, Filing

    Scan speed
    A4 LEF, 200 dpi, 300 dpi
    46 ipm—simplex
    92 ipm—duplex

    Scan resolution
    100–1,200 dpi

    傳真類型
    G3 fax, Internet fax, IP fax, LAN-Fax, Paperless fax, Direct SMTP fax
    傳真機電路
    PSTN, PBX
    傳真兼容性
    ITU-T (CCITT), G3
    傳真數據機速度
    2,400 bps–33.6 Kbps—G3, standard with automatic shift down
    傳真壓縮方法
    MH, MR, MMR
    傳真解像度
    200 x 100 dpi, 8 x 3.85 lines/mm—Standard Mode
    200 x 200 dpi, 8 x 7.7 lines/mm—Detail Mode
    8 x 15.4 lines/mm, 16 x 15.4 lines/mm—Super Fine Mode
    G3傳真傳送速度

    Approximately 3 seconds

    傳真SAF記憶體容量

    Standard
    4 MB—approximately 320 pages

    Optional
    60 MB—approximately 4,800 pages

    傳真記憶體備份
    1 hour
    快速撥號
    2,000 numbers
    數據覆寫保安系統（DOSS）- 標準
    Yes—optional HDD unit required
    加密功能
    Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
    eMMC encryption
    認證
    User authentication—Windows and LDAP via Kerberos, Basic, User Code
    802.1x wired authentication
    Wireless LAN security (WEP, WPA2, 11i)
    IPv6
    Quota setting
    WiFi Protected Setup (WPS) support
    Windows
    Windows 8.1
    Windows Server 2012
    Windows Server 2012 R2
    Windows 10
    Windows Server 2019
    Windows 11
    Windows Server 2022
    Macintosh
    OS X Native v10.15 or later—PostScript 3 only
    UNIX
    Sun Solaris—10
    HP-UX—11.x, 11iv2, 11iv3
    Red Hat Linux—Enterprise, v5, v6
    SCO OpenServer—5.0.7, 6.0
    IBM AIX—v7.1, v7.2
    SAP
    Environment—R/3, S/4
    Platforms—SAP R/3 (release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
    Page description language—PCL
    Character sets—Latin-1, Latin-2, Unicode
    Supported features—Available for the printing of all SAP document types (SAPScript, Smartforms, ABAP)
    Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5, MSI, USPS POSTNET, EAN/UPC
    OCR fonts—OCR A, OCR B
    標準
    @Remote Embedded
    Web Image Monitor
    可選
    RICOH Streamline NX v3
    GlobalScan NX
    Enhanced Locked Print NX v2 and FlexRelease Server v2
    FlexRelease CX
    Card Authentication Package v2 and Enterprise Server v2
    Device Manager NX Lite and Accounting
    Printer Driver Packager NX
    RICOH @Remote Connector NX
    RICOH Print Management Cloud

    手機應用程式
    RICOH Smart Device Connector
    電源
    220–240 V, 50/60 Hz—Asia Pacific
    110 V, 60 Hz—Taiwan
    耗電量
    1,780 W—maximum power, guaranteed
    528.8 W—printing, nominal
    26.4 W—Ready Mode, nominal
    0.45 W—Energy Saver Mode (Sleep Mode), nominal
    典型用電量
    0.38 kWh
    預熱時間
    32 seconds or less—Quick Mode
    60 seconds or less—Without Quick Mode
    恢復時間
    8.8 seconds or less—Energy Saver Mode (Sleep Mode)
    環保標籤
    Thai Green Label Scheme, Hong Kong Energy Efficiency Labelling Scheme
