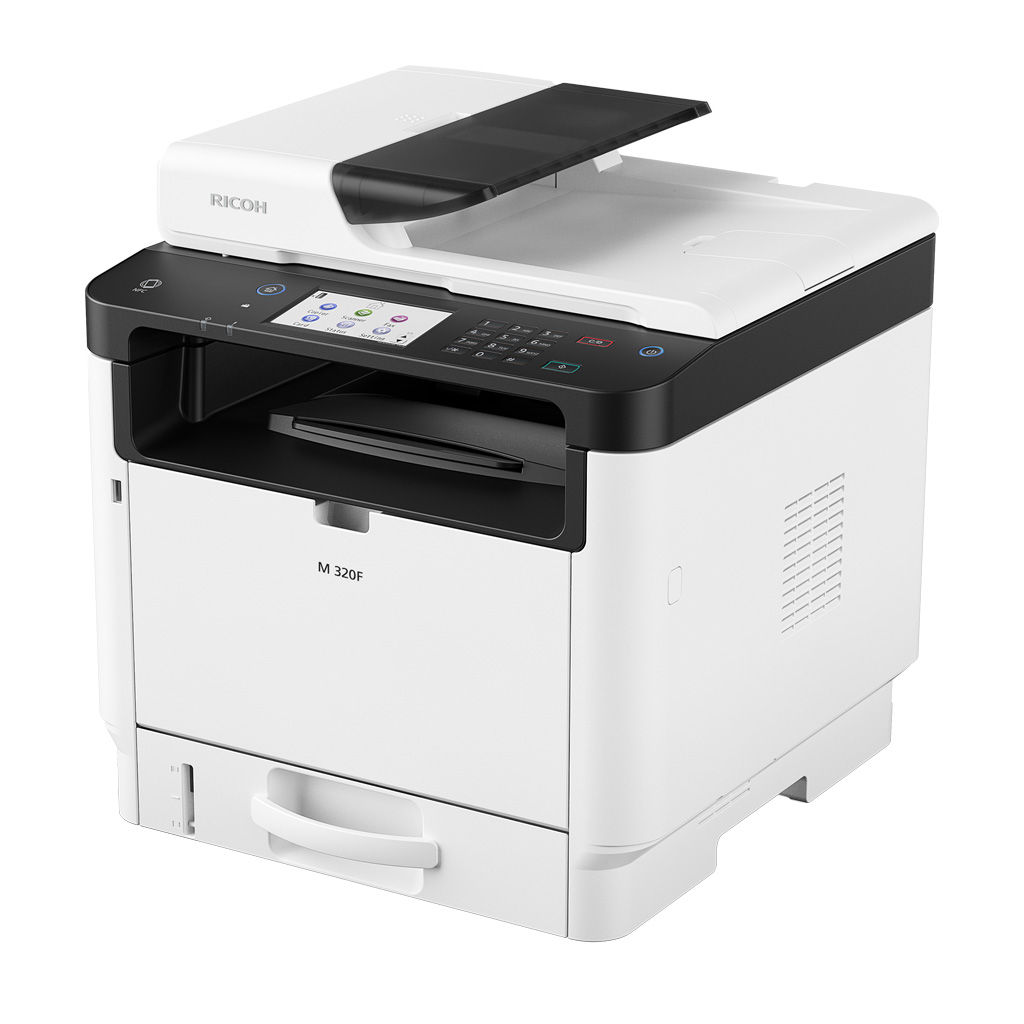

M 320F A4 black and white multifunction printer

  • Copy, print, scan, fax
  • Prints up to 32 ppm
  • Optional dual band Wi-Fi
  • High-yield starter cartridge
配置您的設備
Related Links
Intelligence at work
Combine high performance with low operating costs and robust security with a printer engineered to meet your workflow demands and security needs.

Productivity you can count on

These mono laser printers combine quality, speed and reliability, making them ideal for your small to medium professional business.

Your data – protected

Robust security layers have been added to keep your data secure. Network encryption ensures safe transmission of data while the Locked Print function prevents the unauthorised viewing of selected documents you need to keep confidential.


  1. Easy operation
    This compact fax-enabled 4-in-1 multi-function printer is easy to operate with its large colour touchscreen panel as well as smart device print capabilities via Mopria®, AirPrint® and RICOH Smart Device Connector.
  2. Keep workflows moving
    The high-yield All-in-One print cartridge prints an impressive up to 7,000 pages.
  3. Handle more with flexible media outputs
    Get attention with compelling text and images at up to 1,200 x 1,200 dpi on a wide range of media.
  4. More options
    Take advantage of the optional WiFi capability and 250-sheet optional second paper tray.

Download PDF brochure

Specifications

功用
Copy, print, scan, fax
色彩
No
記憶體 - 標準
32 MB ROM
256 MB RAM
操作板面
4.3" touch panel
實體尺寸（長闊高）—大型機
405 x 392 x 420 mm
重量—大型機
18 kg
標準輸入量（張）
300
最大輸入量（張）
550
標準輸出量（張）
50
最大輸出量（張）
50
紙張輸入配置 - 標準
250-sheet paper tray, 50-sheet bypass tray, duplex unit, 35-sheet ARDF
紙張輸出配置 - 標準
50-sheet face-down internal output tray
支援媒體

Standard tray
Thin paper, thick paper 1, thick paper 2, plain paper, recycled paper, colour paper, pre-printed paper, pre-punched paper, letterhead, bond paper, cardstock, labels

Bypass tray
Thin paper, thick paper 1, thick paper 2, plain paper, recycled paper, colour paper, pre-printed paper, pre-punched paper, letterhead, bond paper, cardstock, labels, envelopes

Optional paper bank
Thin paper, thick paper 1, plain paper, recycled paper, colour paper, pre-printed paper, pre-punched paper, letterhead

最大紙張尺寸
A4
媒體量
52–162
介面 - 標準
10Base-T/100Base-Tx (Ethernet)
USB 2.0 Type B x 1—rear
USB 2.0 Type A x 2—1x rear, 1x front
NFC tag
介面 - 可選
IEEE 802.11b/g/n/ac (Wireless LAN) + Wi-Fi Direct
網路協議 - 標準
TCP/IP
影印速度
A4 SEF, single document, multiple copies
32 cpm—platen glass, 600 dpi
14 cpm—platen glass, 1,200 dpi
6 cpm—ARDF
首次影印時間
13 seconds or less—platen glass
16 seconds or less—ARDF
影印解像度

Scanning
600 x 600 dpi; default—platen glass
300 x 600 dpi—ARDF

Copying
Windows
600 x 600 dpi, 1,200 x 600 dpi, 1,200 x 1,200 dpi—half speed

Macintosh
600 x 600 dpi

Linux
600 x 600 dpi, 1,200 x 1,200 dpi—half speed

縮放範圍
25%–400% in 1% steps—600 x 600 dpi via platen glass, 25%–400% in 1% steps—300 x 600 dpi via ARDF
放大比例
122%, 141%, 200%, 400%
縮放比例
93%, 82%, 71%, 50%
雙面影印
Supported
身份證影印
Supported
黑白列印速度
Simplex
32 ppm—600 x 600 dpi
14 ppm—1,200 x 1,200 dpi

Duplex
13 ppm—600 x 600 dpi
7 ppm—1,200 x 1,200 dpi
首次列印時間
7.1 seconds or less
列印解像度
1,200 x 1,200 dpi
頁面描述語言
PCL 5e, PCL 6, PostScript3 emulation
印表機驅動程式
PCL 5e, PCL 6, PostScript3 emulation
雙面列印
Standard
行動列印
AirPrint, Mopria®, RICOH Smart Device Connector
掃瞄速度

Via platen glass
Black and white
145 mm/second—300 x 300 dpi
36 mm/second—600 x 600 dpi

Colour
48 mm/second—300 x 300 dpi
12 mm/second—600 x 600 dpi

Via ARDF
Black and white
64 mm/second, 13 ipm—600 x 300 dpi

Colour
22 mm/second, 4.5 ipm—600 x 300 dpi

掃瞄模式
Scan to email, Scan to folder, Scan to FTP, Scan to USB, TWAIN scanning
色彩掃瞄
Supported
掃瞄解像度

Standard
1,200 x 1,200 dpi—platen glass
600 x 600 dpi—ARDF
19,200 x 19,200 dpi—TWAIN
Maximum optical resolution is 1,200 dpi

Default
600 x 600 dpi—platen glass
300 x 600 dpi—ARDF

掃瞄至電子郵件

Authentication
SMTP authentication, POP3 before SMTP

Scan resolution
Platen glass
300 x 300 dpi (default), 600 x 600 dpi

ARDF
300 x 300 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF

Multi-page
TIFF, PDF

掃瞄至資料夾
Authentication
SMTP authentication, POP before SMTP authentication

Resolution
300 x 300 dpi

Scan to folder file types
Single-page
TIFF, JPEG, PDF

Multi-page
TIFF, PDF
TWAIN掃瞄

Scan speed
12 ipm—black and white
9 ipm—colour

Scan mode
True colour, greyscale, black and white

Scan resolution
Platen glass
75–19,200 dpi
Note: Maximum 19,200 dpi is selectable with software processing.

ARDF
75–600 dpi

傳真類型
PC Fax, LAN-Fax
傳真機電路
PSTN, PABX
傳真數據機速度
33.6 Kbps–2,400 bps—with automatic shift down
傳真壓縮方法
MH, MR, MMR
傳真解像度
Standard
200 x 100 dpi—8 x 3.85 lines/mm

Fine, Photo
200 x 200 dpi—8 x 7.7 lines/mm
G3傳真傳送速度
Approximately 3 seconds—MMR, ITU-T #1 chart
傳真記憶體備份
Maximum 50 jobs maximum, 100 pages with ITU#1 standard
快速撥號
8 (20 digits for name, 40 digits for numbers)
認證
User code authentication available with Locked Print
Wireless LAN security—WEP 64-bit, WEP 128-bit and AES, TKIP/AES, WPA
Network user authentication
Secure Print
Windows
Windows 8.1, Windows 10, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Macintosh
Mac OS 10.10–11
標準
Web Image Monitor
Smart Organizing Monitor
可選
Streamline NX—device management functions only
Device Manager NX
@Remote—limited functions
Printer Driver Packager NX
手機應用程式
RICOH Smart Device Connector
電源
220–240 V, 50/60 Hz, 4.3 Amps
耗電量
1,025 W—maximum power
520 W—printing
65.7 W—Ready Mode
0.87 W or less—Energy Saver Mode (Sleep Mode)
典型用電量
0.423 kWh
預熱時間
30 seconds or less
環保標籤
Hong Kong Energy Saving Label
