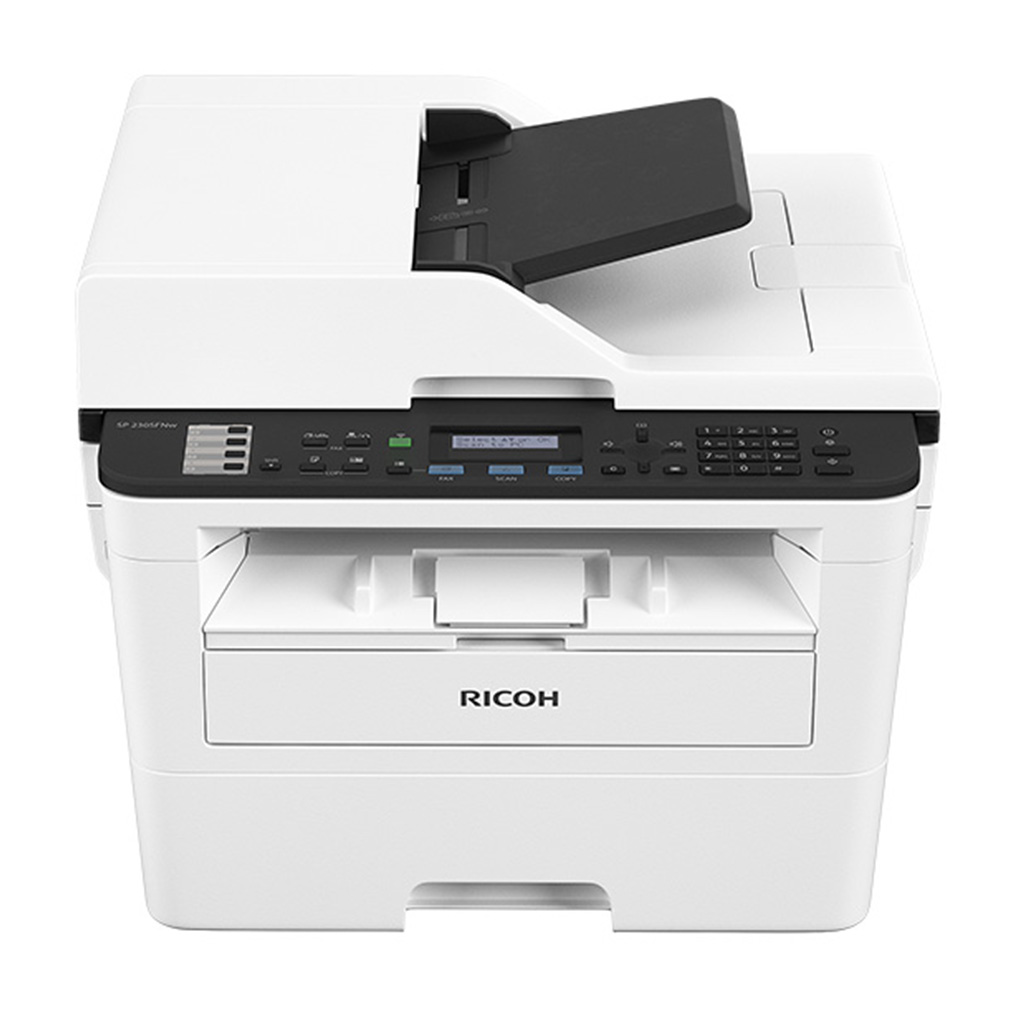

SP 230SFNw A4 black and white MFP

  • Copy, print, scan, and fax
  • Prints up to 30 ppm
  • Mobile printing
  • Quiet operation

A compact workhorse for the busy workplace

The SP 230SFNw is a compact 4-in-1 solution, created to make your work life easier. With fast 30ppm print speed, automatic 2-sided printing and colour scanning as standard, all managed through a simple interface, it’s a low maintenance printer that delivers fast results. Featuring a separate drum and high yield toner, the SP 230SFNw reduces upkeep spend – offering lower cost per page for added economy. Built with both wired and wireless connectivity, faxing, colour scanning, printing and copying capabilities, you can get the documents you need instantly, in high quality.

  1. Compact and Robust
    Compact in size and provide quiet operation, leading to greater efficiency and user productivity especially in smaller office environments
  2. Excellent productivity
    High-quality 1,200 x 1,200 dpi resolution
  3. Easy to use
    Easy mobile printing via Wi-Fi Direct, Mopria®, and AirPrint® support
  4. Economical and eco-friendly
    Low Typical Electricity Consumption (TEC) and Energy Star v2.0 certified
Download PDF brochure

Specifications

功用
Copy, print, scan, fax
色彩
No
記憶體 - 標準
256 MB
操作板面
2-line LCD
實體尺寸(長闊高)—大型機
410 x 399 x 319 mm
重量—大型機
11.8 kg or less
標準輸入量(張)
251
最大輸入量(張)
251
標準輸出量(張)
120
最大輸出量(張)
120
紙張輸入配置 - 標準
250-sheet paper tray, 1-sheet bypass tray, 50-sheet ADF
紙張輸出配置 - 標準
120-sheet face-down output tray
支援媒體
Thin paper, plain paper, thick paper, thicker paper, recycled, bond paper, label, envelope
最大紙張尺寸
A4
媒體量
60–230
介面 - 標準
USB 2.0
10Base-T/100Base-Tx (Ethernet)
IEEE 802.11b/g/n (Wireless LAN)
網路協議 - 標準
TCP/IP, IPv4
影印速度
A4 SEF, single document, multiple copies
30 cpm
首次影印時間

Platen glass
10 seconds or less

ADF
11 seconds or less

影印解像度
1,200 x 1,200 dpi—platen glass
600 x 600 dpi—ADF
縮放範圍
25%–400% in 1% steps
放大比例
104%, 141%, 200%,
縮放比例
97%, 94%, 91%, 85%, 83%, 78%,70%, 50%
雙面影印
Yes
身份證影印
Supported
黑白列印速度
30 ppm—single-sided
7.5 ppm—duplex
首次列印時間
8.5 seconds or less—from Ready Mode, 17.5 seconds or less—from Sleep Mode
列印解像度
600 x 600 dpi—default, 300 x 300 dpi, 1,200 x 1,200 dpi, 2,400 x 600 dpi
印表機驅動程式
GDI
雙面列印
Yes
行動列印
Yes
掃瞄速度

Black and white, A4, 200 dpi, 300 dpi
22.5 ipm
36 mm/second—600 x 600 dpi

Colour, A4, 200 dpi, 300 dpi
7.5 ipm

掃瞄模式
Scan to folders, Scan to searchable PDF, TWAIN scanning
色彩掃瞄
Supported
掃瞄解像度
100 dpi, 200 dpi—default, 300 dpi, 600 dpi
掃瞄至檔案類型

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF
Single- and multi-page high compression PDF
Single-and multi-page PDF/A

掃瞄至資料夾
Security
Secure PDF

Resolution
100 dpi, 150 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi
TWAIN掃瞄
Scan mode
Auto, text, photo, receipt

Scan speed—A4, 200 dpi, 300 dpi
22.5 ipm—black and white
7.5 ipm—colour

Scan resolution
1,200 x 1,200 dpi—platen glass
600 x 600 dpi—ADF

Image adjustment
Brightness, contrast

Supported operating systems
Windows Server 2008, Windows 7, Windows 8.1, Windows 10, Windows Server 2012/R2, Windows Server 2016
傳真類型
Super G3
傳真機電路
PSTN, PBX
傳真數據機速度
33.6 Kbps with automatic shift down
傳真壓縮方法
MH, MR, MMR, JBIG
傳真解像度
Horizontal
203 dpi—8 dots/mm—standard, fine, super fine, photo

Vertical
98 dpi—3.85 dots/mm—standard
196 dpi—7.7 dots/mm—fine, photo
392 dpi—15.4 dots/mm—super fine
G3傳真傳送速度
Approximately 2.5 seconds
傳真SAF記憶體容量
16 MB
加密功能
SSL communication, SMTP over SSL/TLS, SNMP v3, Encrypted PDF Mode, Wireless LAN—WEP, WPA, WPA2
Windows
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows 8.1
Windows Server 2012
WIndows Server 2012 R2
Windows 10
Windows Server 2016
Macintosh
OS X Native—10.11 or later
電源
220–240 V, 50/60 Hz, 4.6 Amps or less
耗電量
1,104 W—maximum power
440 W—operating power
42 W or less—Ready Mode
6.2 W or less—Energy Saver Mode (Sleep Mode)
典型用電量
1,232 Wh
預熱時間
28 seconds or less
節能模式

1 minute default shift time—Energy Saver Mode (Sleep Mode)

恢復時間

From Energy Saver Mode (Sleep Mode)
11 seconds or less

環保標籤
Blue Angel Mark (BAM)
