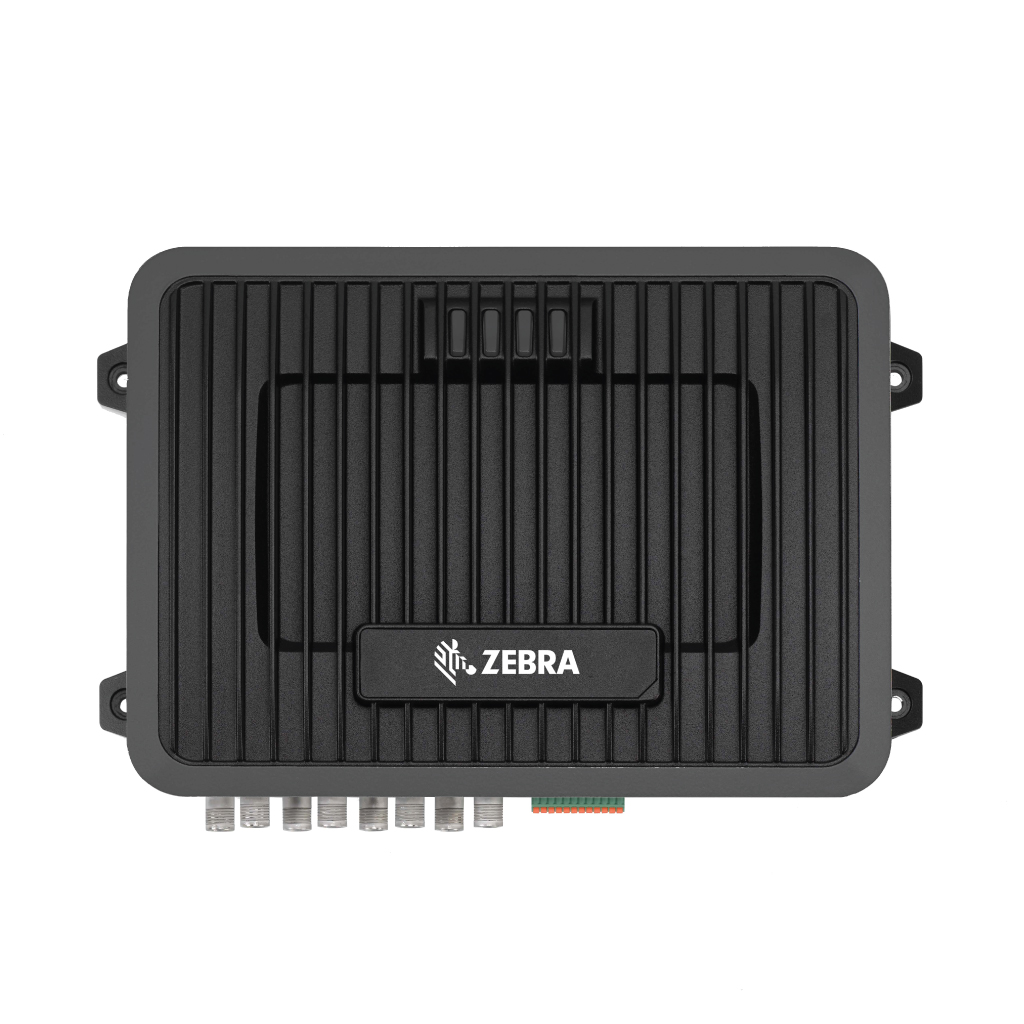

FX9600 Barcode Scanner

  • Fixed mount RFID reader with high reading performance
  • Ideal for incoming and outgoing goods, inventories, etc.
  • Robust aluminum die cast housing, meets IP53 and MIL-STD-810G standards
  • Barcode Reader, Bracode RFID

  1. Top-of-the-Line Performance
    Exceptionally high RF sensitivity delivers the greatest accuracy and longer read ranges, even in dense RF environments with challenging materials. With the most power in its class, support the highest throughput and your sophisticated software applications.
  2. Unrivaled Deployment Simplicity
    Host embedded applications directly on the FX9600. With support for PoE and PoE+, there’s no need to run power drops to each reader—and with PoE+ or a 24V power supply, even long cable runs won’t reduce available RF power.
  3. The Industry's Best TCO
    Designed for tough environments, the FX9600 handles damp dusty work areas, extreme heat and subzero temperatures. The eight-port model can cover more dock doors and portals with fewer readers, lowering investment, deployment and management costs.

Download PDF brochure



Specifications

Physical Characteristics

Dimensions:
10.75 in. L x 7.25 in. W x 2.0 in. D
27.3 cm L x 18.4 cm W x 5.0 cm D
Weight:
Approx. 4.4 lbs/2.13 kg
Housing Material:
Die-cast aluminum, meets IP53 standards
Visual Status Indicators:
Multicolor LEDs: Power, Activity, Status and Applications

User Environment
Processor: Texas Instruments AM3505 (600 MHz)
Memory: Flash 512 MB; DRAM 256 MB
Operating System: Linux
Firmware Upgrade: Web-based and remote firmware upgrade capabilities
Network Services: DHCP, HTTPS, FTPS, SFPT, SSH, HTTP, FTP, SNMP and NTP
Operating Temp: -4° to +131° F/-20° to +55° C
Storage Temp: -40° to +158° F/-40° to +70° C
Sealing: IP53
Connectivity

Communications :10/100 BaseT Ethernet (RJ45); USB Host and Client (Type A and B)*; Serial (DB9)
General Purpose I/O
4 inputs, 4 outputs, optically isolated (Terminal Block)
