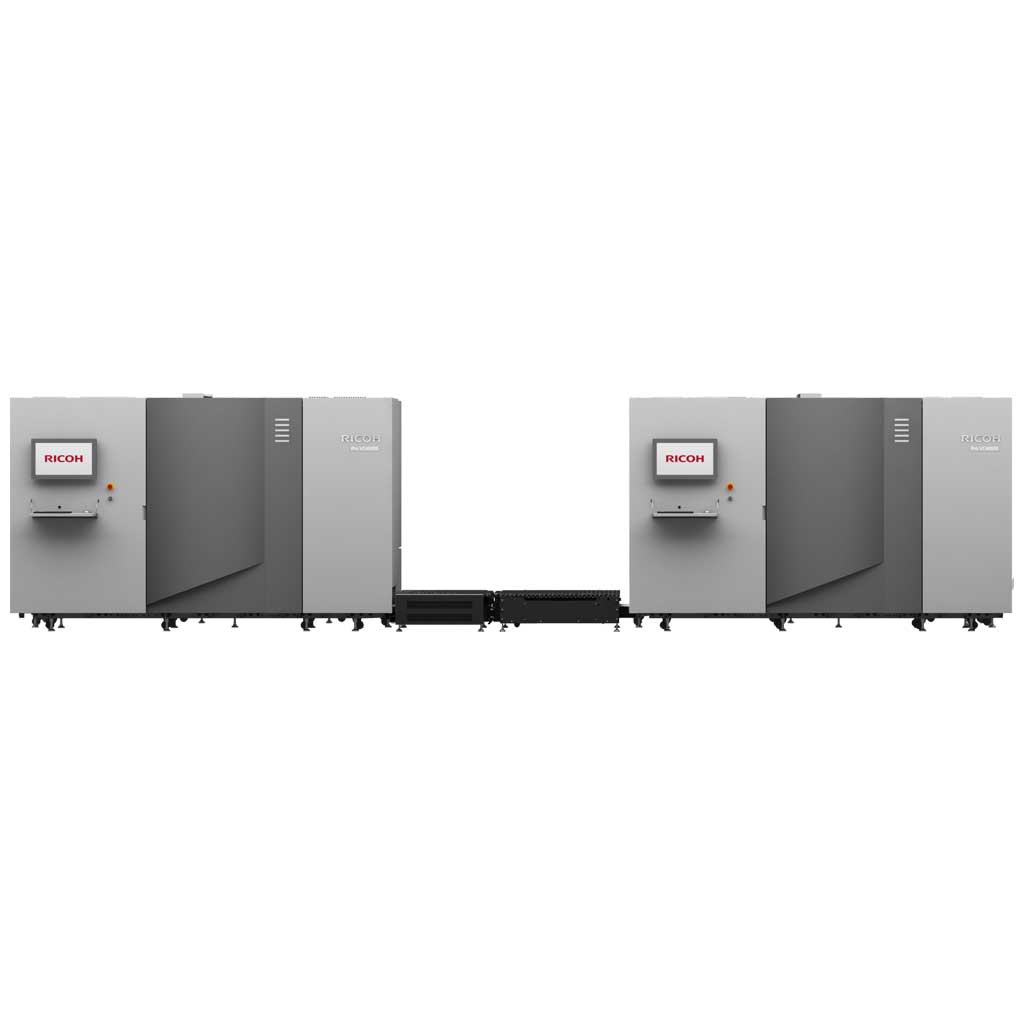

Pro VC40000 Continuous feed production printer

  • Prints up to 180 metres per minute—600 x 400 dpi
  • 600 x 400 dpi, 600 x 450 dpi, 600 x 600 dpi
  • Piezo Drop-on-Demand inkjet printheads—dynamic variable-drop size technology produces up to three different drop sizes
  • 4-colour (CMYK)—MICR ink option available

Consistent high quality results

Key features such as the latest aqueous inks, printheads with dynamic variable drop size, 600 dpi resolution, tight web, and advanced front and back page registration enable the Pro VC40000 to produce vivid, compelling materials that capture attention.

Simplified colour management

Produce the results your customers require every time with all the necessary tools to create your own profiles and help you understand how to get the most from the system. Ricoh's colour management experts can also assist with colour matching, colour calibration, staff training, and more.

  1. Expand your horizons
    Build a foundation for growth that enables you to attract new customers while strengthening current relationships.
  2. Power up your productivity
    Improve productivity and throughput so you can meet tight turnaround times as well as take on more jobs.
  3. Operate with confidence
    The Pro VC40000 is part of a continuous feed inkjet family that has demonstrated exceptional dependability in the most demanding production print environments for years.
  4. Rely on our expertise
    Ricoh's consultative approach and expertise ensure that you are making the right investment to enable your success.

Specifications

기능
Print
컬러
Yes
프린터 컨트롤러 - 옵션
Ricoh TotalFlow R600A Digital Front End
Note: The Ricoh TotalFlow R600A controller is a mandatory option.
장치 구성
Base unit (2 units per configuration)
2 print engines per duplex system in I (inline) or H configuration
물리적 크기 (WxDxH)-기기 본체
3,240 x 1,870 x 1,971 mm—base unit
무게 - 기기 본체
2,750 kg—base unit
용지 출력 구성 - 제3사
Pre- and post-processing
Multiple partners provide a variety of unwind, rewind, cut, fold, dynamic perforation, vision systems and inline processing, including a solution for books
지원하는 미디어
Uncoated, Ink Jet Treated, Ink Jet Coated
최대 용지 크기
Length: 101.6–1371.6 mm, Width: 165–520 mm
미디어 무게(g/m2)
40–250
용지 경로
Tight web
Web width—520.7 mm
컬러 출력 속도
4 colours, 2-bit, 2-up duplex
50 mpm, 100 mpm, 120 mpm, 180 mpm at 600 x 600 dpi—Black Enhanced and Monochrome modes
120 mpm, 150 mpm at 600 x 450 dpi
타겟 볼륨
Up to 40 million impressions/month
츨력 테크놀로지
Piezo Drop-on-Demand
Dynamic variable drop size
잉크 타입
Pigment, Dye and MICR
컬링 방법
Radiant
잉크 구성
4-colour CMYK
프린트헤드
Drop-on-Demand Piezo printhead
출력 해상도
Up to 600 x 600 dpi
전체흐름
Ricoh TotalFlow R600A Digital Front End

Industry leading colour management control
Enhanced impositioning tool
JDF/JMF enabled
Graphical user interface with remote access support

Data Stream Support
PostScript, PDF (APPE), PDF/VT, IPDS

Job Submission
FTP, IPP, LPR, Raw Port, Operator Console, Virtual Printer/Hot Folder Support

Graphical User Interface
Display on each print engine
Login by Role: Admin, Operator, Maintenance, or Customisable
Highly customisable user interface layout by role
Graphical Printer and Supplies Status
Operator Messages
Paper Catalogue/Paper Setup

Job Management
Graphical Job Ticketing/Job Preview – Native JDF
- Banner, Operator Comments, Sides Printed, Copies, Rotate, Reduce/Enlarge, Image Alignment, Special Marks
Job Imposition
Job Queue Management
- Submit, Suspend, Hold, Process Next, Delete Job
View Jobs
- Job Status: Active, Inactive, Stored, All Jobs, Job History

Colour Management
ICC Profile Support Enhanced Colour Management by Side and Object Type
Device Link Support
Spot colour dictionaries (Pantone, Toyo, DIC, and HKS)
CMR Support (AFP/IPDS)
안전 표준

ISO 12100
ISO 13849-1
EN 60204-1
EN 1010-1
EN 1010-2
EN 60950-1
UL60950-1
CAN/CSA C22.2 No.60950-1
JIS C 6950-1
IEC60950-1

전자기 호환성(EMC) 표준
EN 61000-6-2
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
FCC Part15 Subpart B (Class A)
DOC ICES-003 Class A
VCCI (Class A)
KN61000-6-2
KN11 (KN61000-6-4)
작동 환경
Operating temperature
18–24° C

Operating humidity
40–60%
