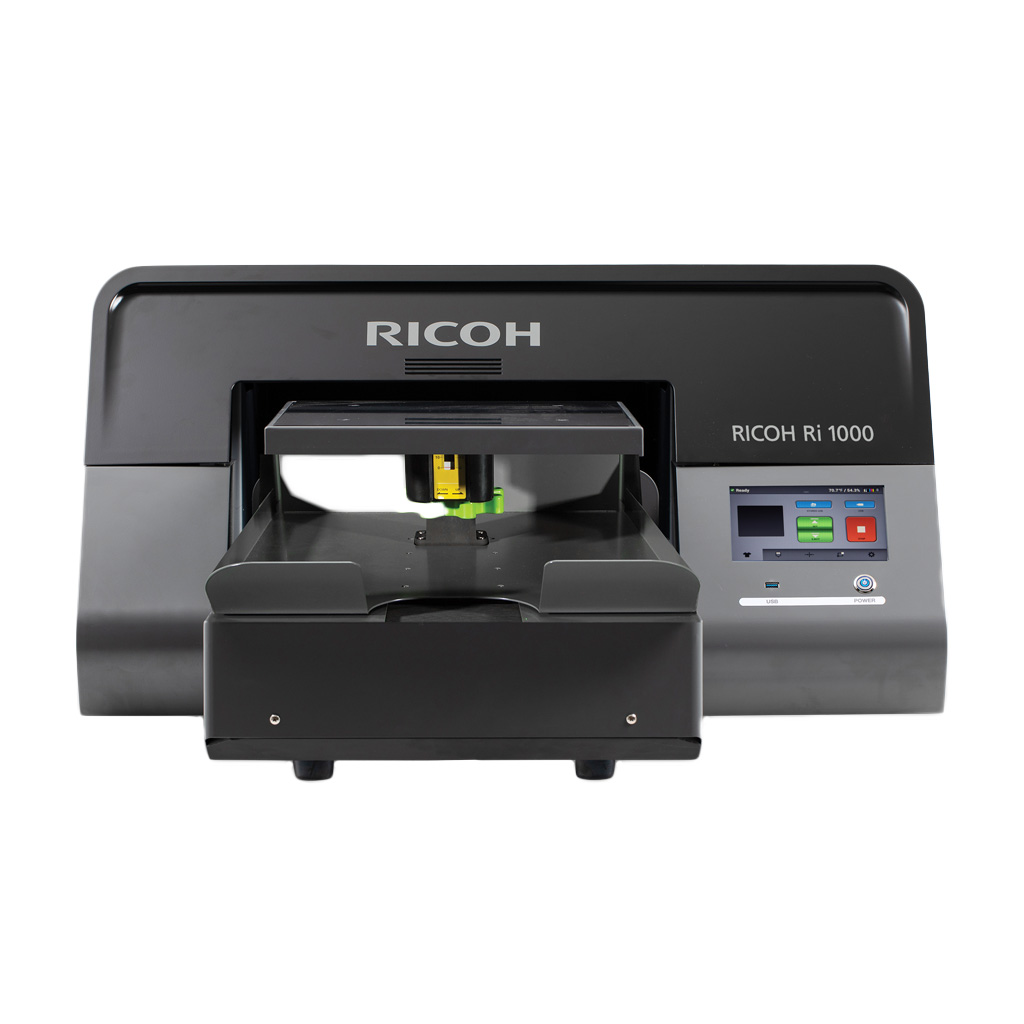

RICOH Ri 1000 Direct to Garment printer

1,200 x 1,200 dpi
7-inch touchscreen panel
Supports white ink
Optional platens

High performance with impressive print speed

RICOH Ri 1000 provides the perfect combination of smart technology, fast print speeds, and high output quality, enabling customers to expand their garment decoration portfolio. Versatile and productive, it uses Ricoh’s variable drop size inkjet technology and CMYK + white pigment inks to print high resolution graphics onto light and dark coloured fabrics. It supports cotton and polyester and can be used to personalise T-shirts, tote bags and other merchandise.

High quality output
The industrial-grade printheads used are durable and robust, providing accurate and consistent prints on every application
Excellent productivity
Automatically detects the thickness of the garment, ensuring the table height is set precisely each time to save time and increase productivity
Easy to use and maintain
Maintenance functions such as intelligent auto clean, white ink agitation, and continuous monitoring of ink supply and air levels are all automated
Quick-change platens and a range of size options
Available in multiple styles and offer the flexibility to print in sizes up to 406 x 508 mm

Download PDF brochure

Specifications

기능: Garment print
컬러: Yes
CPU: 2.0 GHz or faster
메모리 - 표준: 2 GB or more
오퍼레이션 패널: 7" touchscreen display
장치 구성: Desktop

물리적 크기 (WxDxH)-기기 본체: 862 x 1,325 x 480 mm
물리적 크기 (WxDxH)-기타: 49.8 x 40.6 x 3.3 cm— RICOH Large Platen Type G1
45.7 x 32.0 x 3.3 cm— RICOH Medium Platen Type G1
33.0 x 26.6 x 3.3 cm— RICOH Small Platen Type G1
무게 - 기기 본체: 110 kg
무게 - 기타: 4.1 kg— RICOH Large Platen Type G1
3.2 kg— RICOH Medium Platen Type G1
2.3 kg— RICOH Small Platen Type G1
최소 필요 공간: 200 mm—front
50 mm—left
500 mm—right (ink slot side)
50 mm—rear

월간 평균 사용량: 375 sheets
월간 최대 사용량: 2,000 sheets
기기 수명: 30,000 sheets or 5 years whichever comes first
듀티 사이클: 30,000 sheets
PM 사이클: 1.5–2 years/10,000 sheets
MCBC: 1,899 sheets
유지보수: Maximum 60 minutes maintenance time/1 person

소모품 용량

Ink cartridge yield—standard
1,088 sheets—CMYK
84 sheets—W1,W2

Ink cartridge yield—high yield
2,724 sheets—CMYK
208 sheets—W1,W2

Ink cartridge capacity
200 ml—standard
500 ml—high yield

Cleaning cartridge capacity
200 ml

Waste ink bottle
300 sheets

외관 취급

Substrates
Cotton, blend ratio 50–100%

Applications
T-shirt, tote bag, sweatshirt, polo shirt, hat, towel, handkerchief, bib

Garment thickness
30 mm max—without frame
4 mm max—with frame

Garment thickness sensor
Available

Garment types
Standard
Spectra USA, Spectra T-shirt 3100–148 g/m²

RecommendedToms/heavy-weight T-shirt 00085-CVT—190 g/m²
Toms/tote bag—404 g/m²
Toms/tote bag—270 g/m²
Toms/tote bag—135 g/m²

Platen type
Dress

Platen sizes
406.4 x 508 mm/16” x 20”—large
320 x 457.2 mm/12.6” x 18”—medium
266.7 x 330.2 mm/10.5” x 13”—small

Table height adjustment
0–30 mm manual adjustment
3 mm/360º adjustment pitch
1.5 kg maximum load

인터페이스 - 표준: USB Flash memory
10/100 Base-T Ethernet (AutoMDI/MDI-X)

컬러 출력 속도

4-Colour (4C)

155 seconds—High Image Quality Mode
95 seconds—Standard Mode
60 seconds—High Speed Mode

4C + White

260 seconds—High Image Quality Mode
205 seconds—Standard Mode
140 seconds—High Speed Mode

Note: Print speeds based on 10"x 8" at 25º C through the entire process—push start button, table moves forward, ink purged, printing, table moves back.

츨력 테크놀로지

Inkjet

잉크 타입

Water-based garment ink

잉크 구성

CMYKWW

프린트헤드

4 Ricoh Piezo ink heads
192 nozzles in 8 lines
6 colours

출력 해상도

600 x 1,200 dpi / 8-pass—High Speed Mode (W)
600 x 600 dpi / 8-pass—Standard Mode (4C)
600 x 600 dpi / 4-pass—High Image Quality Mode (4C)

최대 출력 가능 영역

406.4 x 508 mm

기타 출력 기능

Pre-treatment
PowerBright Pre-treatment Liquid (Dupont P5002)

Post-treatment
Heat press
100 seconds/180^oC—4-colour
90 seconds/165^oC—4-colour + white

Windows: Windows 7 or later

표준: AnaRIP

전원

200–240 V, 50–60 Hz (±3 Hz)

소비 전력

20 W—standby
100 W—maximum, operating

소음 수준

40 dB—standby
67 dB—operating

환경 표준

Ricoh GPP
RoHS
REACH
Directive 94/62/EC
Directive 2006/66/EC
WEEE

안전 표준

IEC62368-1
IEC60950-1
Low Voltage Directive EN62368-1
Ricoh Product Safety Standards

전자기 호환성(EMC) 표준

EN 55032 Class A
EN 55024
EN 61000-3-2, EN 61000-3-3
EN 62311
AS/NZS CISPR 32

작동 환경

Temperature
15–32º C

Humidity
45–80% RH
