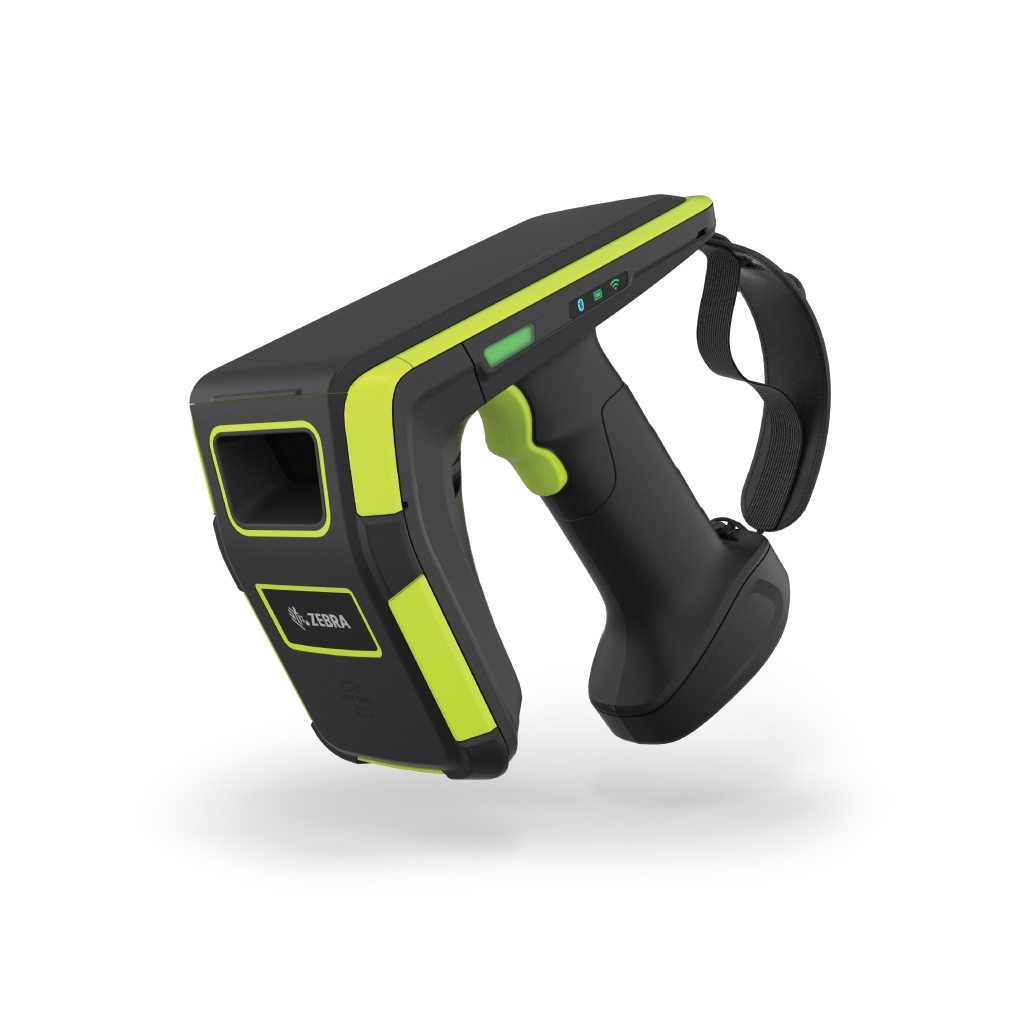

RFD90 Ultra-Rugged UHF RFID Sleds

  • With 1,300+ tag reads per second, a 75-foot read range, and impressive battery capacity.
  • Test for drops up to 6 feet (1.8 meters) onto concrete surfaces
  • Operate temperature range of -4°F to 131°F (-20°C to 55°C).
  • Barcode Reader, Barcode RFID

  1. Ultra-Rugged Ergonomic Design
    Engineered to withstand harsh conditions, these ultra-rugged sleds are dust-proof, sprayproof, waterproof, and tested for drops up to 6 feet (1.8 meters) onto concrete surfaces and boast an extended operating temperature range of -4°F to 131°F (-20°C to 55°C). Superior ergonomics contribute to worker comfort and productivity
  2. Industry-Leading Performance
    Enable rapid inventory counts and increase workflow accuracy with a standard read range of 22 feet (6.7 meters) or extended range of 75 feet (22.9 meters). The ultra-accurate item-finder mode helps workers locate critical items quickly and easily. And with a 7,000 mAh battery, RFD90 Sleds keep going hour after hour.
  3. Flexible and Future-Proof
    Integrated Wi-Fi 6 capability allows for easy over-the-air (OTA) device management, while Bluetooth 5.3 and NFC tap-to-pair make it easier than ever to connect to current and future Zebra mobile computers and third-party smartphones. Zebra eConnex™ adaptors allow you to mount a broad selection of rugged Zebra mobile computers, while the Otter Box universe adaptor provides support for many third-party smartphones.

Download PDF brochure



Specifications

Physical Characteristics

Dimensions:
RFD9030:
7.4 in. x 3.2 in. x 6.8 in.
189 mm x 83.4 mm x 173 mm
RFD9090:
9.8 in. x 3.8 in. x 6.8 in.
248 mm x 96.3 mm x 173 mm
Weight:
RFD9030 with SE4750MR: 25 oz./714 grams
RFD9030 with SE4850: 26.5 oz./751 grams
RFD9090 with SE4750MR: 26.8 oz./759 grams
RFD9090 with SE4850: 28.2 oz./799 grams
Notifications:
Bluetooth Status LED
Wi-Fi Status LED
Decode LEDs
Battery Status LED
Beeper
User Input: Tri-Function User Programmable Trigger

User Environment
RFID Engine: Zebra Proprietary Radio Technology
Fastest Read Rate: 1300+ tags/sec
Nominal Read Range:
RFD9030: ~22 ft./~6.7 m
RFD9090: ~75 ft./~22.9 m
'Quick-Release, Power Precision+ Li-Ion 7000 mAh battery
Operating Temp: -4°F to 131°F/-20°C to 55°C
Storage Temp: -40°F to 158°F/-40°C to 70°C
Drop Specifications: Multiple 6 ft./1.8 m drops to concrete
Sealing: IP65 (spray) and IP67 (submersion)
Connectivity

Host Connection:
Electronic 8-Pin Connection (eConnex™)
Bluetooth 5.3
USB Cable Cup
Host Computer:
Zebra mobile computers and tablets
3rd-party smartphones and tablets
Windows-based PCs
