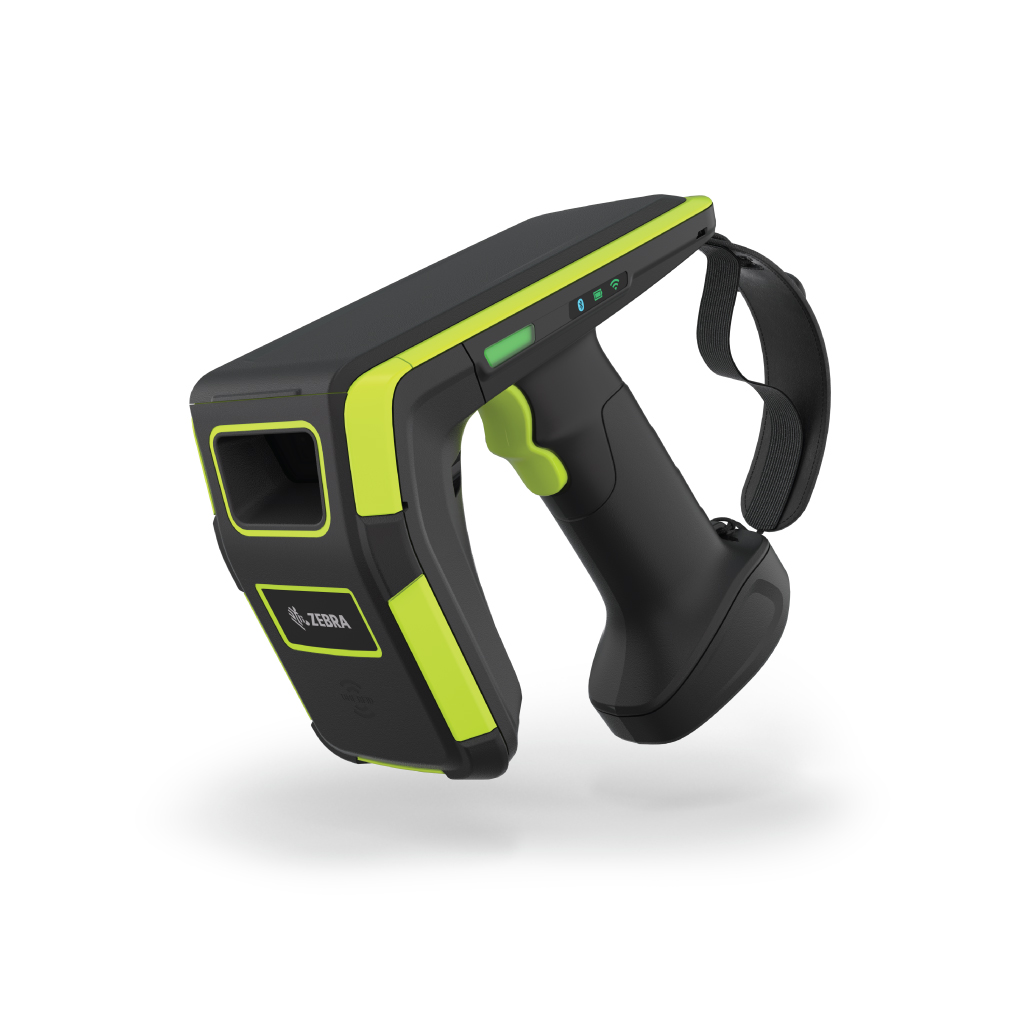

RFD90 Ultra-Rugged UHF RFID Sleds

With 1,300+ tag reads per second, a 75-foot read range, and impressive battery capacity.
Test for drops up to 6 feet (1.8 meters) onto concrete surfaces
Operate temperature range of -4°F to 131°F (-20°C to 55°C).
Barcode Reader, Barcode RFID

Related Links

RFD40

Unparalleled efficiency outperforms the competition

Keep your supply chain moving and track assets and
inventory. Adapt to new and emerging technologies with
these ultra-rugged sleds that connect to current and future
Zebra mobile computers and 3rd-party smartphones. Wi-Fi 6
enables easy over-the-air (OTA) device management.

Ultra-Rugged Ergonomic Design
Engineered to withstand harsh conditions, these ultra-rugged sleds are dust-proof, sprayproof, waterproof, and tested for drops up to 6 feet (1.8 meters) onto concrete surfaces and boast an extended operating temperature range of -4°F to 131°F (-20°C to 55°C). Superior ergonomics contribute to worker comfort and productivity
Industry-Leading Performance
Enable rapid inventory counts and increase workflow accuracy with a standard read range of 22 feet (6.7 meters) or extended range of 75 feet (22.9 meters). The ultra-accurate item-finder mode helps workers locate critical items quickly and easily. And with a 7,000 mAh battery, RFD90 Sleds keep going hour after hour.
Flexible and Future-Proof
Integrated Wi-Fi 6 capability allows for easy over-the-air (OTA) device management, while Bluetooth 5.3 and NFC tap-to-pair make it easier than ever to connect to current and future Zebra mobile computers and third-party smartphones. Zebra eConnex™ adaptors allow you to mount a broad selection of rugged Zebra mobile computers, while the Otter Box universe adaptor provides support for many third-party smartphones.

Download PDF brochure

Specifications

Physical Characteristics: Dimensions:
RFD9030:
7.4 in. x 3.2 in. x 6.8 in.
189 mm x 83.4 mm x 173 mm
RFD9090:
9.8 in. x 3.8 in. x 6.8 in.
248 mm x 96.3 mm x 173 mm
Weight:
RFD9030 with SE4750MR: 25 oz./714 grams
RFD9030 with SE4850: 26.5 oz./751 grams
RFD9090 with SE4750MR: 26.8 oz./759 grams
RFD9090 with SE4850: 28.2 oz./799 grams
Notifications:
Bluetooth Status LED
Wi-Fi Status LED
Decode LEDs
Battery Status LED
Beeper
User Input: Tri-Function User Programmable Trigger
User Environment: RFID Engine: Zebra Proprietary Radio Technology
Fastest Read Rate: 1300+ tags/sec
Nominal Read Range:
RFD9030: ~22 ft./~6.7 m
RFD9090: ~75 ft./~22.9 m
'Quick-Release, Power Precision+ Li-Ion 7000 mAh battery
Operating Temp: -4°F to 131°F/-20°C to 55°C
Storage Temp: -40°F to 158°F/-40°C to 70°C
Drop Specifications: Multiple 6 ft./1.8 m drops to concrete
Sealing: IP65 (spray) and IP67 (submersion)
Connectivity: Host Connection:
Electronic 8-Pin Connection (eConnex™)
Bluetooth 5.3
USB Cable Cup
Host Computer:
Zebra mobile computers and tablets
3rd-party smartphones and tablets
Windows-based PCs
