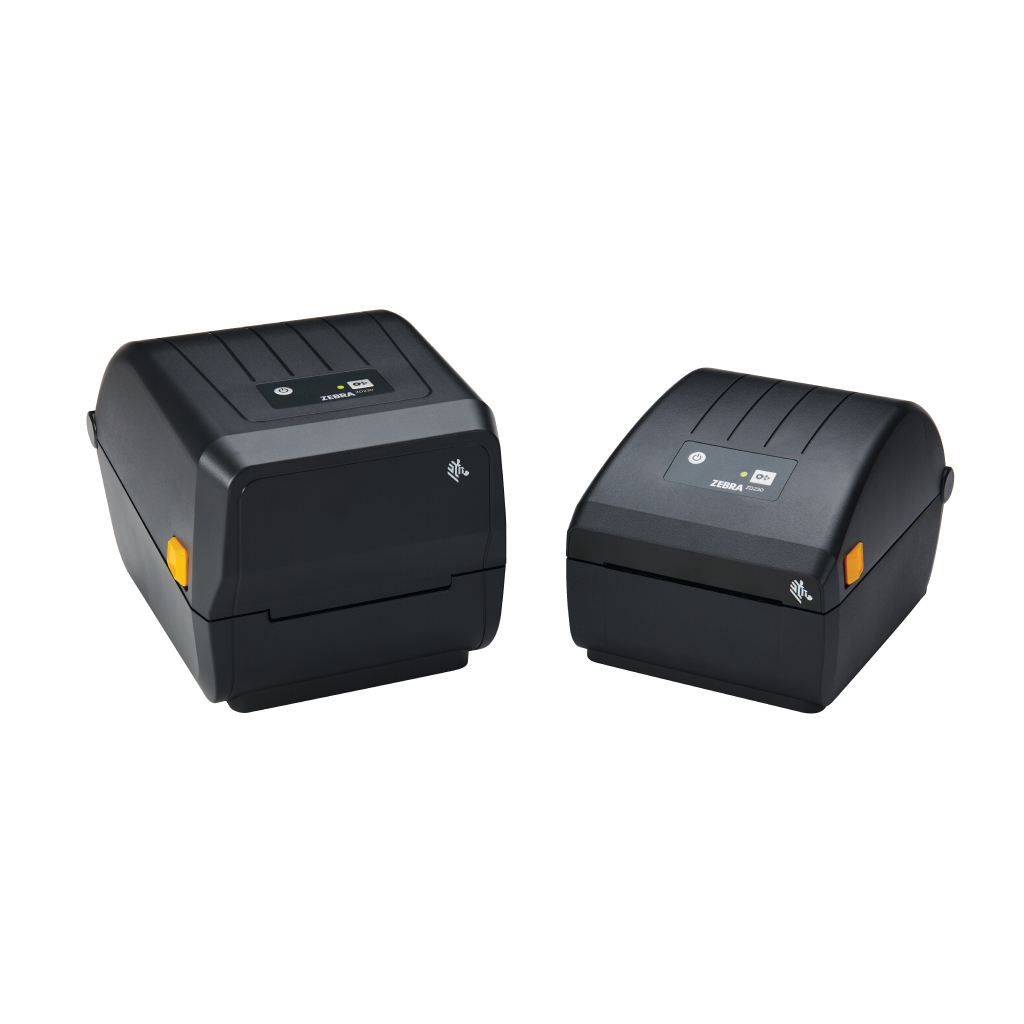

ZD230 Desktop Printer

  • Suitable for small and medium-sized industrial applications
  • Support printing volumes 1,000 pieces per day
  • Support more ribbon and label sizes
  • Barcode Printer, Label Printer

  1. Get Printing Quickly
    The ZD230 is simple to install and begin printing—right out of the box. USB connectivity allows for universal interoperability. Easily replace legacy printers using ZPL, EPL or non-Zebra command languages. And media changes are expedited with Zebra’s Open ACCESS™ clamshell design. It is ideal for use in transportation and logistics, light manufacturing, retail and healthcare applications to print a variety of tickets, tags, passes, labels and receipts.
  2. Basic Features for Simple Operation
    This 4-inch printer produces labels quickly, at 4 in. per second, to keep your workflows moving. Increased memory allows you to store more fonts and graphics. A single LED indicator and single button for feed/pause make it easy to operate and identify printer status. Choose from direct thermal or thermal transfer models and add an optional factory-installed peeler. The ZD220 features Print DNA™ Basic, a core set of software applications and capabilities to deliver a cost-effective and dependable print experience.
  3. Backed by Zebra’s Worldwide Service and Support
    Access repair support services, live-agent technical support and software support quickly anywhere around the globe through Zebra and its trusted network of more than 10,000 partners. Zebra OneCare™ provides enhanced coverage that exceeds standard warranty for normal wear and tear, priority repair turnaround times at the depot and more—all for a tiny fraction of the cost of a single repair.

Download PDF brochure



Specifications

Physical Characteristics

Dimensions:
Thermal Transfer:
10.5 in. L x 7.75 in. W x 7.5 in. H
267 mm L x 197 mm W x 191 mm H
Direct Thermal:
8.6 in. L x 6.9 in. W x 5.9 in. H
220 mm L x 176 mm W x 151 mm H
Weight:
Thermal Transfer:
3.7 lbs./1.7 kg
Direct Thermal:
2.5 lbs./1.1 kg

Connectivity

Communication: USB 2.0

Printer Specifications

Printing system: Direct thermal or thermal transfer
Resolution:
203 dpi/8 dots per mm
Memory:
128 MB Flash; 128 MB SDRAM
Maximum Print Width:
4.09 in./104 mm
Maximum Print Speed:
4 in./102 mm per second

Media Characteristics

Maximum Media Width:
39.0 in./991 mm
Media Roll Size:
5.00 in./127 mm outer diameter
Media Thickness:
0.003 in. (0.08 mm) min.; 0.0075 in. (.1905 mm) max. (tear-off mode only)
Media Types:
Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, and wristbands
