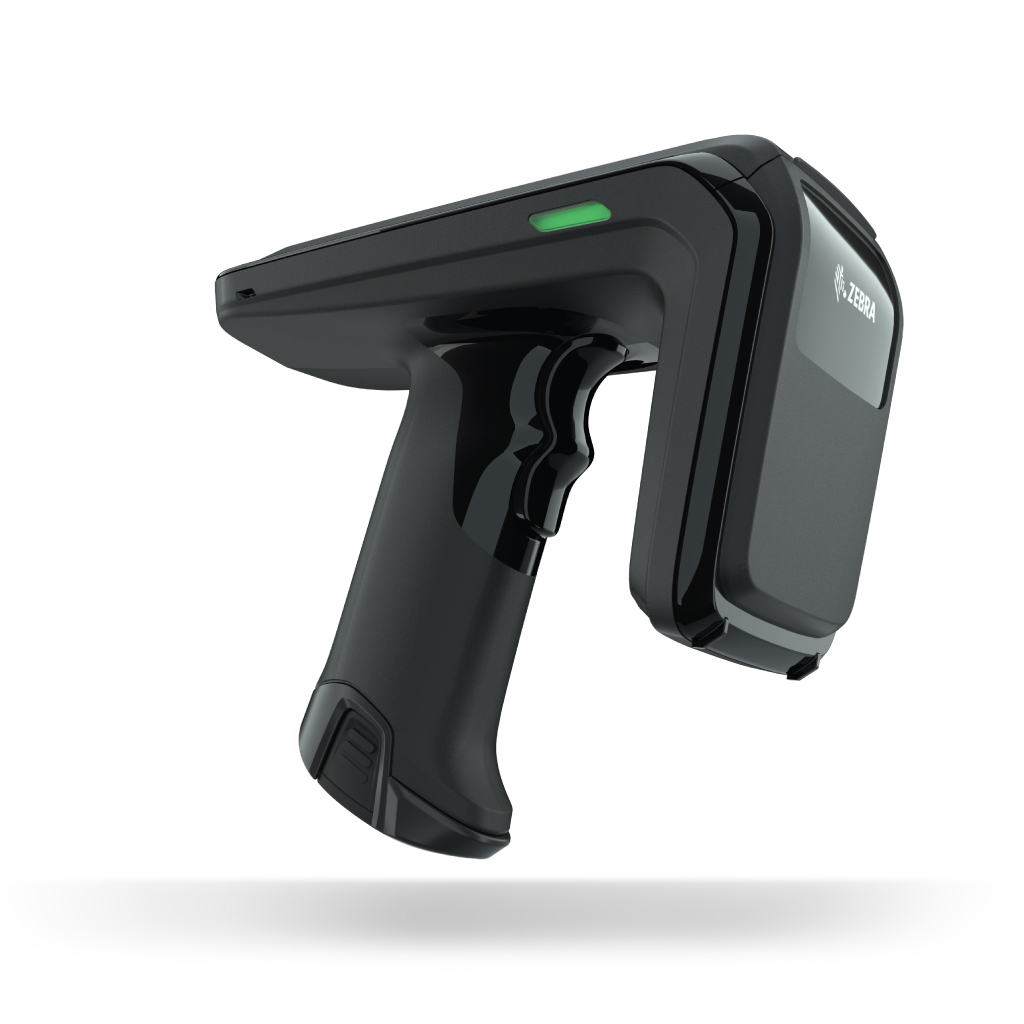

RFD40 UHF RFID Sleds

UHF RFID reader for Zebra mobile computers
Compatible with various devices such as TC21/TC26, EC50/EC55, Windows PCs and more
Over 20 feet reading range and extra-accurate item search mode
Barcode Reader, Barcode RFID

Related Links

RFD90

Faster, Smarter, Future proof.

Gain the edge and efficiency you need with the
RFD40 UHF RFID Sleds. Decrease time spent on
cycle-counting with an industry-best 1300+ tag
reads per second, improved ergonomics and increased
battery capacity

Next Generational Connectivity
eConnex™ technology allows for snap-and-go pairing. Bluetooth™ 5.3 capability supports Zebra mobile computers. An adaptor compatible with the Otter Box universe ecosystem allows support for a wide variety of smartphones.
Efficiency with Staying Power
Industry-best 1300+ tag reads per second and optimized read range, workers can tackle cycle counting and inventory with this RFID powerhouse. The RFD40 Premium Plus model provides scanning functionality for the most challenging barcodes.
Connect and Go
Integrated Wi-Fi 6 capability allows for easy over-the-air (OTA) device management, while Bluetooth 5.3 and NFC tap-to-pair make it easier than ever to connect to Zebra mobile computers and third-party smartphones.

Download PDF brochure

Specifications

Physical Characteristics: Dimensions:
5.94 in. H x 3.3 in. W x in. 6.5 in. L
15.1 cm H x 8.4 cm W x 16.65 cm L
Weight: 19.1 oz./ 541 grams (sled with battery)
Notifications: Decode LEDs, Battery Status LED, Beeper
User Input: Tri-Function User Programmable Trigger
User Environment: Operating Temp: -10°C to 50°C/14°F to 122°F
Storage Temp: -40°C to 70°C/-40°F to 158°F
Drop Specifications: Multiple 5 ft./1.5 m drops to concrete
Sealing: IP54
Connectivity: Host Connection:
eConnex™ (Electric 8-pin Connection)
USB-C Cable
USB Cable Cup
Host Computer:
Zebra mobile computers and tablets
Windows-Based PCs
