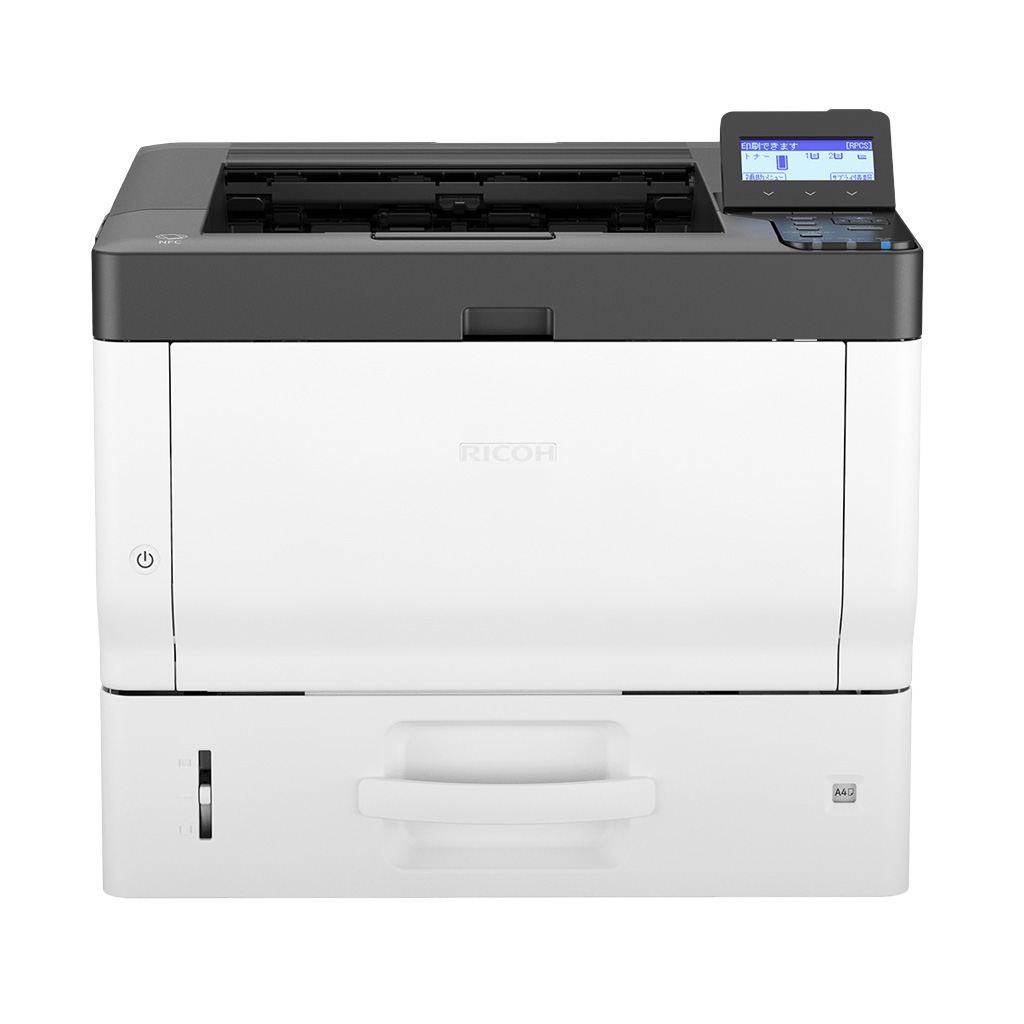

P 502 A4 black and white printer

  • Envelope and label printing
  • Prints up to 43 ppm
  • Standard PostScript 3 and PDF Direct
  • RICOH Smart Device Connector

Compact and Durable

Ricoh’s leading LED printer maintains exceptional speed, quality and reliability throughout long runs. Its powerful Intel 1.3 GHz processor effortlessly processes complex jobs and eliminating bottlenecks, the printer delivers its first pristine 1,200 x 1,200 dpi print in under 5 seconds. Multi-page document sets are produced at a blistering 43 pages per minute.

  1. Excellent performance
    Maximum input capacity of 2,100 sheets with optional paper banks provide longer uninterrupted print runs.
  2. High quality output
    Maximum 1,200 x 1,200 dpi print resolution ensures sharp and crisp text every time.
  3. Reliable and easy to use
    Compact footprint enables devices to be installed in almost any location—from office desks to under retail shop counters.
  4. Security in our DNA
    DataOverwriteSecurity System (DOSS) keeps hard drive contents protected, making all confidential data unrecoverable by overwriting latent digital images after all print, scan and copy jobs.
Download PDF brochure

Specifications

功用
Print
色彩
No
存儲
320 GB—optional
記憶體 - 標準
2 GB
操作板面
4-line LCD
實體尺寸(長闊高)—大型機
375 x 412 x 311 mm
重量—大型機
19.3 kg
標準輸入量(張)
600
最大輸入量(張)
2,100
標準輸出量(張)
250
最大輸出量(張)
250
紙張輸入配置 - 標準
500-sheet paper input tray, 100-sheet bypass tray, duplex unit
紙張輸出配置 - 標準
250-sheet face-down paper output tray
支援媒體
Plain paper (type not displayed), recycled paper, special paper 1–2, colour paper, letterhead, pre-printed paper, OHP, label paper, envelope
最大紙張尺寸
A4
媒體量
52–256
介面 - 標準

10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
USB 2.0
USB Host 2.0

介面 - 可選
One of these can be installed:
USB Device Server (additional Ethernet/Gigabit Ethernet port)
IEEE 802.11a/b/g/n (Wireless LAN)
IEEE 1284
網路協議 - 標準
TCP/IP (IPv4, IPv6)
黑白列印速度
43 ppm—A4 LEF, simplex
37 ppm—A4 LEF, duplex
首次列印時間
4.3 seconds or less
列印解像度
1,200 x 1,200 dpi
頁面描述語言

Standard
PCL 5e, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Genuine Adobe PostScript 3, PDF Direct from Adobe, XPS Direct Print, IPDS

Note: HDD option is required if the IPDS option is installed.
印表機驅動程式
PCL 5e, PCL 6, PostScript 3
雙面列印
Standard
行動列印
Yes
數據覆寫保安系統(DOSS)- 標準
Yes—with optional HDD
加密功能
HDD encryption—with optional HDD
Authentication password encryption
認證
User authentication—Windows and LDAP via Kerberos, Basic, User Code
802.1x wired authentication
Wireless LAN security (WEP, WPA2, 11i)
IPv6
Quota setting
WiFi Protected Setup (WPS) support
Windows
Windows 7
Windows 8.1
Windows Server 2008
Windows Server 2008 R2
Windows Server 2012
Windows Server 2012 R2
Windows 10
Windows Server 2016
Macintosh
OS X Native v10.10 or later—PostScript 3 only
UNIX
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise, v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2
SAP
Environment—R/3, S/4
Platforms—SAP R/3 (release versions 3.0 and above), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
Page description language—PCL
Character sets—Latin-1, Latin-2, Unicode
Supported features—Input/output bin, Duplex, Resolution, Collation, EconoMode/Toner saving, Page protect, Auto tray change/Opt tray select ,User authentication
Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5, MSI, USPS POSTNET, EAN/UPC
OCR fonts—OCR A, OCR B
IBM
iSeries/AS/400—Using OS/400 Host Print Transform
標準
@Remote Embedded
Web Image Monitor
可選
RICOH Streamline NX v2 and v3
Enhanced Locked Print NX v2 and FlexRelease Server v2
FlexRelease CX
Card Authentication Package v2 and Enterprise Server v2
Device Manager NX Lite and Accounting
Printer Driver Packager NX
Device Manager NX Pro and Enterprise
RICOH @Remote Connector NX
手機應用程式
Smart Device Connector
電源
220–240 V, 7 Amps, 50/60 Hz—Asia Pacific
110 V, 12 Amps, 60 Hz—Taiwan
耗電量
1,260 W or less—maximum power, guaranteed
597 W—printing, nominal
79.6 W—Ready Mode, nominal
0.63 W—Energy Saver Mode (Sleep Mode), nominal
典型用電量
0.54 kWh
預熱時間
13 seconds or less
節能模式
1 minute; default shift time—Energy Saver Mode (Sleep Mode)
恢復時間
10 seconds or less—Energy Saver Mode (Sleep Mode)
環保標籤
Thai Green Label Scheme, Hong Kong Energy Efficiency Labelling Scheme, Blue Angel Mark (BAM)
