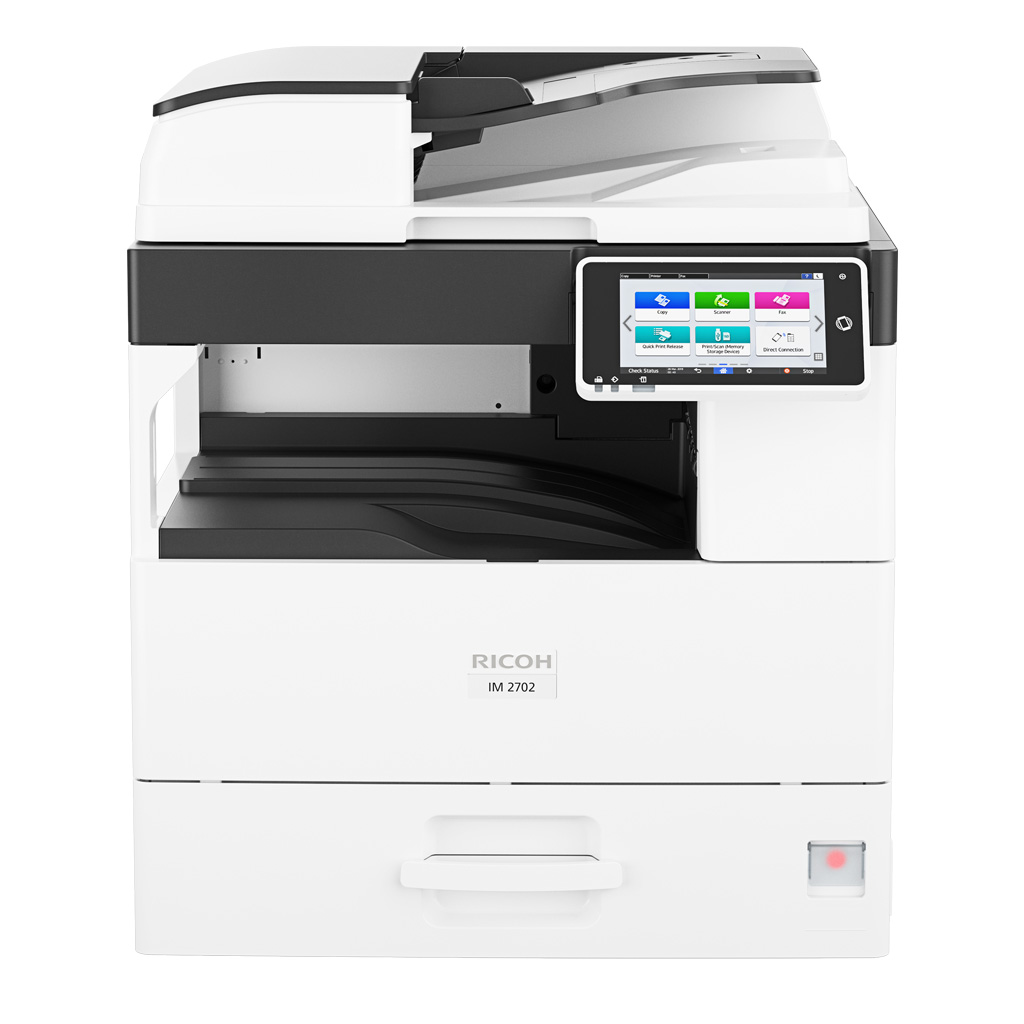

IM 2702 A3 black and white multifunction printer

  • Copy, print, scan, optional fax
  • Prints up to 27 ppm
  • 7" Smart Operation Panel
  • Mobile printing
配置您的設備
Related Links
Realistically affordable
The new intelligent A3 mono multifunction printer to empower your workplace

The new intelligent A3 mono multifunction printer to empower your workplace

RICOH IM 2702 is a budget friendly device that comes with a host of improved features, making it easier to use and connect to, while at the same time increase productivity. It offers a fast print speed at 27 pages per minute, larger standard paper tray, as well as a new generation 7” Smart Operation Panel.

  1. Easy setup and maintenance
    Preassembled PCDU simplifies the process of setting up the device without requiring the support of a technician
  2. Smart operation
    Print or scan documents easily from mobile devices via the Ricoh Smart Device Connector app
  3. Solutions friendly
    Support for cloud workflow applications which connect the device to external cloud services and third-party apps via the RICOH Smart Integration platform
  4. Security in our DNA
    Document confidentiality can be maintained by suspending print jobs, and only be released when authentication is done at the device
Download PDF brochure

Specifications

功用
Copy, print, scan, optional fax
色彩
No
存儲
Not available
記憶體 - 標準
4 GB—2 GB mainframe + 2 GB Smart Operation Panel
操作板面
7" colour touch operation panel
實體尺寸（長闊高）—大型機
587 x 581 x 677 mm—depth including the input tray
重量—大型機
46.5 kg or less
標準輸入量（張）
600
最大輸入量（張）
1,600
標準輸出量（張）
250
最大輸出量（張）
250
紙張輸入配置 - 標準
500-sheet paper input tray, duplex unit, 100-sheet bypass tray, 100-sheet ARDF
紙張輸出配置 - 標準
250-sheet face-down output tray
支援媒體

Standard paper input tray
Thin paper, Plain paper 1, Plain paper 2, Recycled, Colour Paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock

Bypass tray
Thin paper, Plain paper 1, Plain paper 2, Recycled, Colour paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock, Thick paper 1, Thick paper 2, Label paper, OHP, Envelope

Optional paper banks
Plain paper 1, Plain paper 2, Recycled, Colour paper, Special paper, Middle thick paper, Printed paper, Preprinted paper, Prepunched paper, Letterhead, Bond paper, Cardstock

最大紙張尺寸
A3
媒體量
52–216
介面 - 標準

Mainframe
10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
IEEE802.11a/b/g/n (Wireless LAN)
USB2.0-Device (Type-B)
USB2.0-Host

Smart Operation Panel
IEEE 802.11 ac/a/b/g/n (Wireless LAN)
Bluetooth 4.2
SD card slot—SDHC memory card
USB Host Type A—for USB Flash memory
USB Host Type A—1 port for USB keyboard, card reader, or camera
USB Host Type mini B—for NFC card reader
microSD card slot—for service engineer access
NFC tag

網路協議 - 標準
TCP/IP
影印速度
27 cpm
首次影印時間
6.5 seconds or less
影印解像度
300 x 600 dpi (default), 600 x 600 dpi
縮放範圍
25–400%
放大比例
115%, 122%, 141%, 200%, 400%
縮放比例
93%, 82%, 71%, 50%, 25%
雙面影印
Standard
書本影印
Not supported
身份證影印
Supported
黑白列印速度
27 ppm
首次列印時間
6.5 seconds or less
列印解像度
600 x 600 dpi
頁面描述語言
Standard
PCL 5e, PCL 6, PostScript 3
印表機驅動程式
Standard
PCL 5e, PCL 6, PostScript 3 emulation
雙面列印
Standard
行動列印
AirPrint, Mopria®
從USB/SD列印
Supported
掃瞄速度
50 ipm
掃瞄模式
Scan to email, Scan to folder (SMB), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to USB/SD
色彩掃瞄
Standard
掃瞄解像度
100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi
掃瞄至檔案類型

Single- and multi-page TIFF
Single- and multi-page PDF
Single-page JPEG (greyscale)
Single- and multi-page high compression PDF

掃瞄至電子郵件

Protocols
SMTP gateway, POP

Authentication
SMTP authentication, POP before SMTP authentication

Scan resolution
100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi, 600 x 600 dpi

Scan to email file types
JPEG, PDF—true colour, greyscale
TIFF, PDF—black and white

掃瞄至資料夾

Protocols
SMB

Security
LanMan1.0, NTLMv1/v2, GSS API

Resolution
100 x 100 dpi, 200 x 200 dpi (default), 300 x 300 dpi, 400 x 400 dpi,  600 x 600 dpi

Search for client folders
By name and ID

Scan to file types
JPEG, PDF—True colour, greyscale
TIFF, PDF—black and white

TWAIN掃瞄

Scan mode
True colour, greyscale, black and white

Scan resolution
100–1,200 dpi
Note: 1,200 dpi scanning is supported only for A5 and smaller paper size.

傳真類型
G3 fax, LAN-Fax—optional
傳真機電路
PSTN
傳真兼容性
ITU-T (CCITT), G3—maximum 1 line
傳真數據機速度
2,400 bps–33.6 Kbps with automatic shift down
傳真壓縮方法
MH, MR, MMR
傳真解像度
200 x 100 dpi—8 x 3.85 lines/mm
200 x 200 dpi—8 x 7.7 lines/mm
G3傳真傳送速度
3 seconds approximately—ITU-T No. 1 chart, TTI off, MFT off
傳真SAF記憶體容量
4 MB
快速撥號
400 numbers
加密功能

Authentication password

認證
User authentication—Windows and LDAP via Kerberos, basic, user code
802.1x wired authentication
Quota setting/Account limit
Windows
PCL 6, PostScript 3
Windows Server 2008
Windows Server 2008 R2
Windows 7
Windows Server 2012
Windows 8.1
Windows Server 2012 R2
Windows 10
Windows Server 2016
Windows Server 2019
Macintosh
OS X Native v10.11 or later—PostScript 3 only
UNIX
Sun Solaris—10
HP-UX—11.x, 11iv2, 11iv3
Red Hat Linux—Enterprise v4, v5, v6
SCO OpenServer—5.0.7, 6.0
IBM AIX—6.1, 7.1, 7.2
標準
@Remote Embedded
Web Image Monitor
可選

Card Authentication Package
Device Manager NX
Enhanced Locked Print NX and FlexiServer
GlobalScan NX (from May 2019, firmware upgrade necessary for devices manufactured prior)
Printer Driver Packager NX
Smart Operation Panel Designer v1.43 or newer

電源
220–240 V, 50/60 Hz, 8 Amps
耗電量
1,550 W or less—mainframe, maximum power
500 W or less—printing
113 W or less—Ready Mode
55 W or less—Low Power Mode
1 W or less—Energy Saver Mode (Sleep Mode)
典型用電量
1,309 Wh
預熱時間
25 seconds—Quick Mode
65 seconds—Normal Mode
節能模式
30 minutes shift time—to Low Power Mode
1 minute shift time—to Energy Saver Mode (Sleep Mode)
恢復時間

10 seconds or less—from Low Power Mode
13 seconds or less—from Energy Saver Mode (Sleep Mode)

環保標籤
Blue Angel Mark (BAM)
