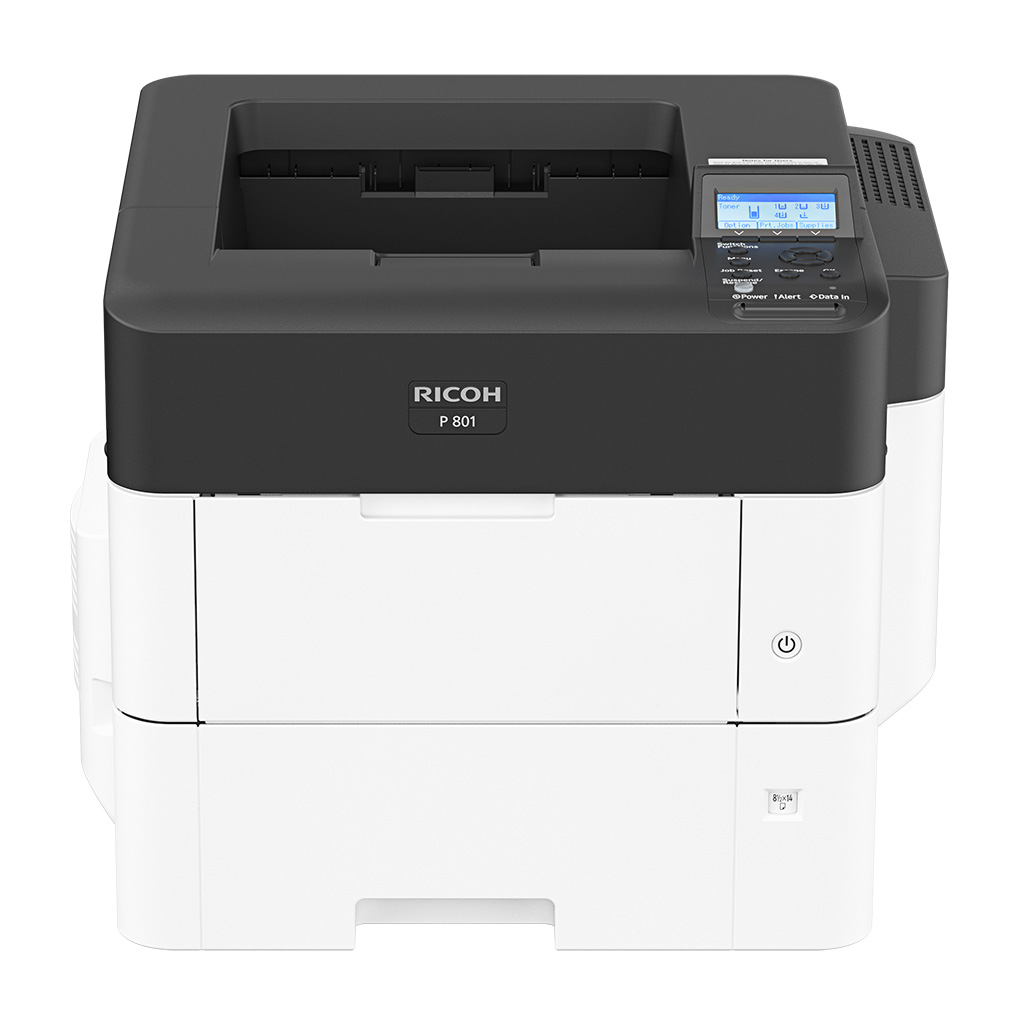

P 801

P 801

The P 801 provides fast prints speeds up to 60 ppm and delivers crisp 1,200 x 1,200 output.

Easy feature navigation is provided by a 4-line LCD panel, while PostScript 3 and PDF Direct emulation as standard allow customers to produce professional documents accurately out of the box.

Budget conscious customers will find this printer attractive because of the 11,000-page starter toner cartridge and a high-yield toner that offers up to 40,000 pages per cartridge.

The P 801 also has low Typical Electricity Consumption (TEC) values that make it affordable to operate.

Up to four optional paper feed units can be added to bring the maximum input capacity to 2,600 sheets, making these printers ideal for large printing jobs.

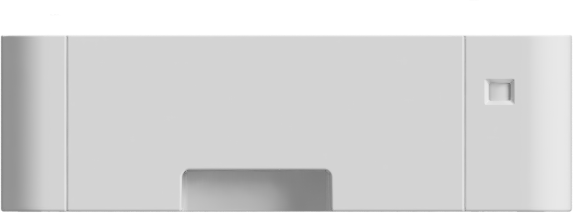

Paper Feed Unit PB1160

Optional 1-tray paper feed unit that increases the paper capacity of the device.

Capacity: 500 sheets
Paper size: B6–A4
Paper weight: 64–120 g/m2
Dimensions (W x D x H) : 380 x 410 x 121 mm
Weight: 4 kg or less

Paper Feed Unit PB1160
Caster Table Type M40

Provides a base with casters (wheels) to easily move the device on a floor standing configuration.

Dimensions (W x D x H): 778 x 808 x 64 mm—with stabiliser feet; 380 x 410 x 64 mm—without stabiliser feet
Weight: 11 kg or less

Caster Table Type M40
PostScript 3 Unit Type P19
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
IPDS Unit Type M40
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
XPS Direct Print Option Type M40
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
Hard Disk Drive Option Type P8
The 320 GB Hard Disk Drive (HDD) is required for Locked/Hold/Stored Print. Data Overwrite and Encryption are available when the HDD is installed.
IEEE 1284 Interface Board Type M19
Allows users of older PC technology to connect to the latest printers and MFPs and access advanced printing features.
Notes:
Cannot be installed with IEEE 802.11 Interface Unit Type M24,Device Server Option Type M37
IEEE 802.11 Interface Unit Type M24
Enables WiFi connectivity and wireless printing.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,Device Server Option Type M37
Device Server Option Type M37
An interface board used to add an extra Ethernet port to the device. Once installed, users can connect two Ethernet cables simultaneously—one to the device's Gigabit Ethernet port and one to the Gigabit Ethernet port of USB Device Server Option.
Notes:
Cannot be installed with IEEE 1284 Interface Board Type M19,IEEE 802.11 Interface Unit Type M24
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.

Standard inclusions

  • 4-line LCD display
  • Mobile printing
  • PostScript3 emulation
  • 500-sheet input tray
  • 100-sheet bypass tray

Current configuration

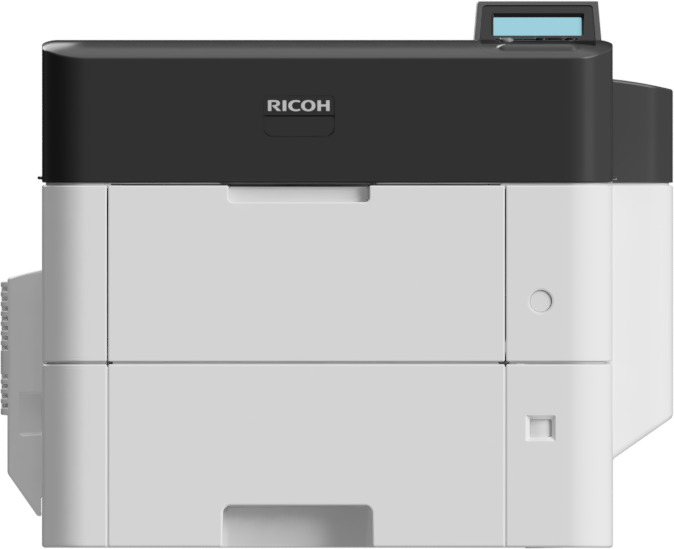

P 801
443 mm x410 mm x366 mm (W x D x H)
18 kg
Selected Options:
    P 801
