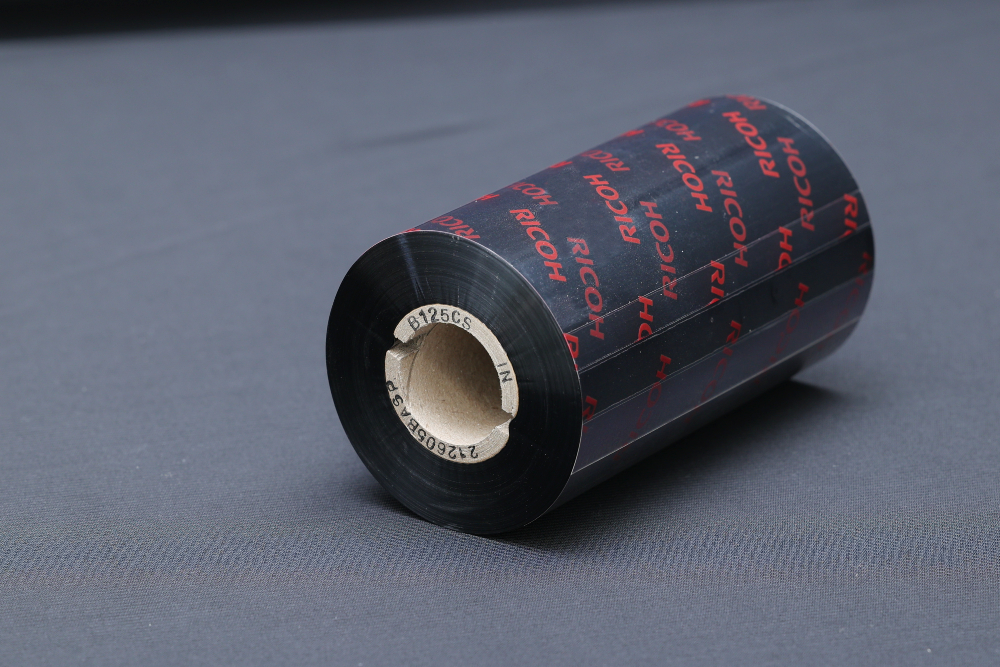

Ribbon B125CS Economical Resin

  • Good scratch and smear resistance
  • High sensitivity and high resolution
  • Suitable for a variety of applications
  • Applicable to a wide range of paper and film materials

Ribbon Properties

  • Total ribbon thickness: < 9μm
  • Polyester film thickness: 4.7μm ± 0.3μm
  • Tearing resistance: > 200N/mm²

Download Datasheet    Request sample roll

 Application



B125CS Durability


Storage Condition

Usage conditions: 5 to 35°C at 30 to 85% of relative humidity.

Storage conditions: Keep indoors avoiding high temperature, high humidity, direct sunlight.

Storage life: 24 months after production.



Printed Image Durability

 TESTSRESULT

 Smear

 ANSI 3.0B or more, or heat 100°C (Smear with cardboard)
Scratch

 ANSI 3.0B or more, or 1500 back and forwards with a rubbing tester
Water resistance ANSI 3.5A or more
Alcohol resistanceANSI C or more

***The above data represents product averages, allowing for industry accepted variances. These products should be tested in the end-use conditions to ensure that they meet the requirements of the specific application. Specifications may change without notice.
