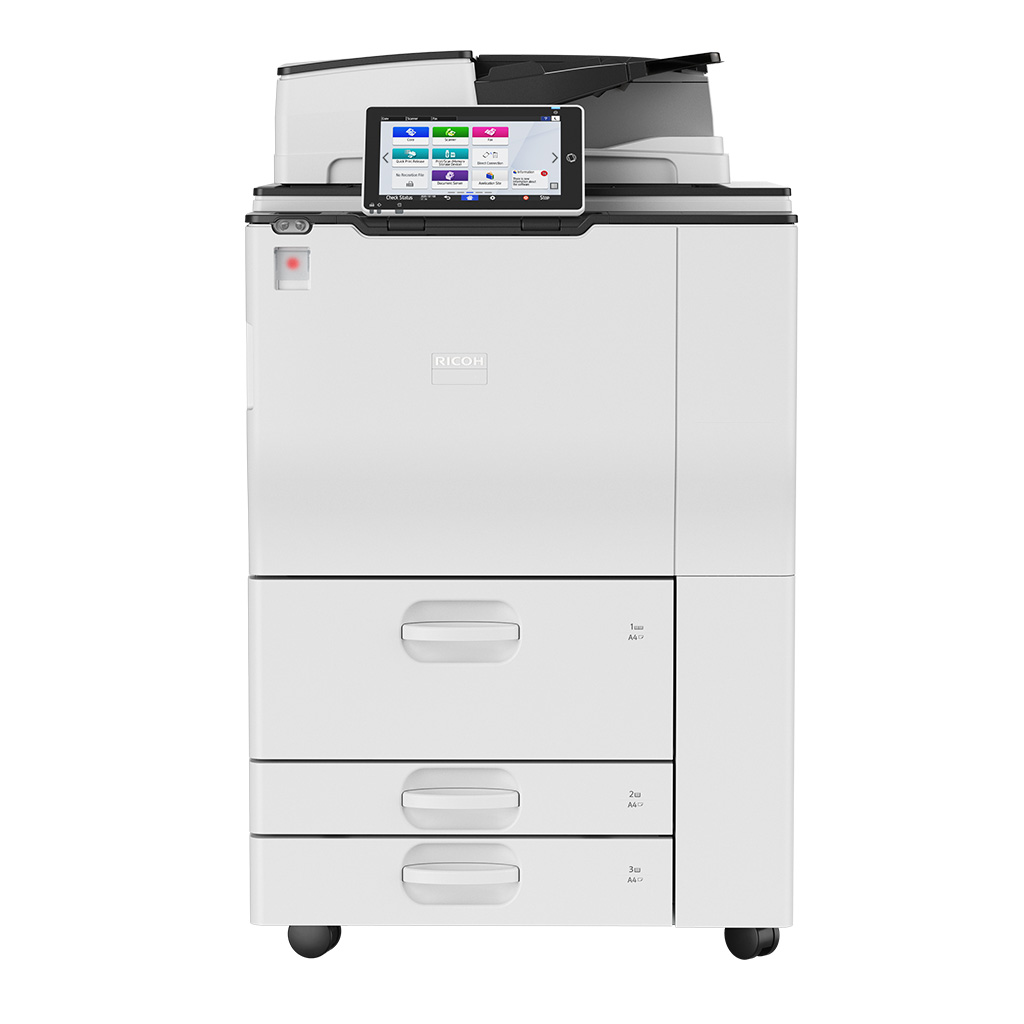

    IM 7000 A3 black and white multifunction printer

    • Copy, print, scan, optional fax
    • Prints up to 70 ppm
    • 8,700-sheet max input
    • RICOH Always Current Technology

    Work smart with instant support

    Automated upgrades, RICOH Intelligent Support* and RemoteConnect Support mean less reliance on service calls and more rapid solutions provided remotely. IT managers can even use the Remote Panel Operation Tool in-house to address fleet issues.

    *When enabled, internet connection required.

    Professional prints and quick & secure document transfers

    Send invoices, contracts and statements digitally and securely. Simply scan documents to email or fax using data encryption, and require user authentication for an extra layer of security. When it comes to professional hardcopy documents like reports and brochures, choose from a wide range of finishing options including hole punching, folding, sorting and stapling. Access all this functionality from your smartphone or tablet for better time management.


    1. Fast scanning speeds
      Send 220 black & white and 240 colour scans per minute effortlessly.
    2. Versatile paper choices
      Print on paper stock from weights as thin as 52g/m2 or as thick as 300g/m2.
    3. No waiting around on prints
      First print ready in under 5 seconds.
    4. Digitise your hardcopies in editable file formats
      Simply scan to convert cumbersome paper documents into ever ready Excel, Word or PDF documents.

    Download PDF brochure


    Specifications

    기능
    Copy, print, scan, optional fax
    보관
    320 GB
    메모리 - 표준
    4 GB—2 GB mainframe + 2 GB Smart Operation Panel
    오퍼레이션 패널
    10.1-inch Smart Operation Panel (G2.5)
    물리적 크기 (WxDxH)-기기 본체
    690 x 883 x 1,161 mm
    무게 - 기기 본체
    200 kg
    표준 용지입력 용량(매수)
    4,300
    최대 용지입력 용량(매수)
    8,700
    최대 용지출력 용량(매수)
    3,500
    용지 입력 구성 - 표준
    1,550-sheet x 2 tandem tray, 2 x 550-sheet paper input trays, 100-sheet bypass tray, 220-sheet SPDF, Duplex unit
    지원하는 미디어

    Plain paper1, recycled paper, colour paper 1–2, special paper, letterhead, bond paper, tracing paper, label, plain paper 1–2, middle thick, thick paper 1–4

    1—Not displayed as paper type

    최대 용지 크기
    A3
    미디어 무게(g/m2)
    52.3–300
    인터페이스 - 표준
    Mainframe
    10Base-T/100Base-TX/1000Base-T (Gigabit Ethernet)
    USB 2.0 Host Type A—2 ports
    USB 2.0 Device Type B—1 port

    Smart Operation Panel
    IEEE 802.11 b/g/n (Wireless LAN)1
    Bluetooth 4.22
    SD Card Slot—SDHC memory card
    USB Host Type A—USB Flash memory
    USB Host Type A—1 port for USB keyboard (optional)2
    USB Host Type mini B—for NFC card reader (optional)2
    NFC Tag2

    1—Limited printing for a peer-to-peer mobile device via RICOH Smart Device Connector
    2—Cannot be used for printing
    인터페이스 - 옵션

    IEEE 1284
    IEEE 802.11 a/b/g/n (Wireless LAN)
    Device Server Option Type M37 (additional NIC port)
    Copy Connector Type M25

    네트워크 프로토콜 - 표준
    TCP/IP (IPv4, IPv6)
    복사 속도
    70 cpm
    첫 복사 시간
    3.2 seconds
    복사 해상도
    600 x 600 dpi—scanning
    1,200 x 1,200 dpi—printing
    확대 범위
    25%–400% in 1% steps
    확대 비율
    400%, 200%, 141%, 122%, 115%
    축소 비율
    93%, 82%, 75%, 71%, 65%, 50%, 25%
    양면 복사
    Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
    책 복사
    Booklet, magazine, layout, and booklet
    ID카드 복사
    Supported
    흑백 출력 속도
    70 ppm
    첫 출력 시간
    4.7 seconds or less
    출력 해상도
    300 x 300 dpi, 600 x 600 dpi, 1,200 x 1,200 dpi
    페이지 설명 언어(PDLs)

    Standard
    PCL 5e, PCL 6, PostScript3 emulation, PDF Direct emulation

    Optional
    Adobe PostScript 3, Adobe PDF Direct, XPS, IPDS

    프린터 드라이버

    PCL 6, PostScript3 emulation

    양면 출력
    Standard
    모바일 프린팅
    RICOH Smart Device Connector
    USB/SD에서 인쇄
    Supported
    스캔 속도
    Via SPDF
    120 ipm—simplex
    240 ipm—duplex
    스캔 방법
    Scan to USB/SD, Scan to email, Scan to folder (SMB, FTP), Scan to URL, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF (embedded)
    컬러 스캐닝
    Standard
    스캔 해상도
    100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
    Note: Maximum scan size for 1,200 dpi is A5.
    스캔 to 타입
    Single- and multi-page TIFF
    Single-page JPEG
    Single- and multi-page PDF, PDF/A
    Single- and multi-page High-Compression PDF
    스캔 to 이메일

    Protocols
    SMTP gateway, TCP/IP

    Authentication
    SMTP authentication, POP before SMTP authentication

    Scan resolution
    100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

    Scan to email file types
    Single-page
    TIFF, JPEG, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

    Multi-page
    TIFF, PDF, PDF/A, High-Compression PDF, Encrypted PDF, Searchable PDF

    Note: Optional OCR unit is required to support scanning to a searchable PDF.

    스캔 to 폴더

    Protocols
    SMB, FTP, WSD (Web Services on Devices for Scanning)

    Security
    Client folder logon, transmission encryption of logon name and password

    Resolution
    100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

    Search for client folders
    SMB—browsing directly to the designated folder
    FTP—by folder name

    Scan to folders file types
    Single-page
    TIFF, JPEG, PDF, PDF/A, High-Compression PDF

    Multi-page
    TIFF, PDF, PDF/A, High-Compression PDF

    TWAIN 스캐닝
    Scan mode
    Standard, Photo, OCR, Filing

    Scan resolution
    100–1,200 dpi
    Note: Maximum scan size for 1,200 dpi is A5.
    팩스 타입
    G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
    팩스 회로
    PSTN, PBX
    팩스 호환성
    ITU-T (CCITT), G3—maximum 3 lines
    팩스 모뎀 속도
    2,400 bps–33.6 Kbps—G3, standard with automatic shift down
    팩스 압축 방법
    MH, MR, MMR, JBIG
    팩스 해상도

    Standard Mode
    200 x 100 dpi—8 x 3.85 lines/mm

    Detail Mode
    200 x 200 dpi—8 x 7.7 lines/mm

    Super Fine Mode
    400 x 400 dpi—8 x 15.4 lines/mm
    400 x 400 dpi—16 x 15.4 lines/mm

    Note: Super fine mode is supported with the optional SAF memory.

    G3 팩스 전송 속도
    2 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
    3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
    팩스 SAF 메모리 용량
    Standard—4 MB, approximately 320 pages
    With optional SAF memory—60 MB, approximately 4,800 pages
    팩스 메모리 백업
    1 hour
    단축번호
    2,000 numbers
    데이터 덮어쓰기 보안 시스템(DOSS) - 표준
    Yes
    데이터 덮어쓰기 보안 시스템(DOSS) - 옵션
    Type M19—available for customers who require their devices to comply with ISO 15408 Common Criteria certification
    암호화
    PDF, Secure print encryption
    Authentication password encryption
    Encryption of data sent via Scan to email and Fax forwarding (S/MIME)
    인증
    802.1x wired authentication
    IEEE 802.11i security (WEP, WPA)
    IPv6
    Quota setting/Account limit
    User authentication—Windows and LDAP via Kerberos, basic, user code
    User code authentication
    Wi-Fi Protected Setup (WPS) support
    Windows
    Windows 7
    Windows Server 2008
    Windows Server 2008 R2
    Windows 8.1
    Windows Server 2012
    Windows Server 2012 R2
    Windows 10
    Windows Server 2016
    Windows Server 2019
    Macintosh
    OS X Native v10.12 or later—PostScript 3 only
    Unix
    Sun Solaris—10
    HP-UX—11.x, 11iv2, 11iv3
    Red Hat Linux—Enterprise v4, v5, v6
    SCO OpenServer—5.0.7, 6.0
    IBM AIX—6.1, 7.1, 7.2
    SAP
    Environment—R/3, S/4
    Platform—SAP R/3 (Release versions 3.0 and higher), SAP R/3 Enterprise, mySAP ERP (2004 and higher), SAP HANA
    Page Description Language (PDL)—PCL
    Character set—Latin-1, Latin-2, Unicode
    Barcode fonts—Code 128, Code 39, Code 93, Codabar, 2 of 5 interleaved/Industrial/Matrix, MSI, USPS Postnet, UPC/EAN
    OCR fonts—OCR A, OCR B
    Other supported features—Input/Output Bin, Duplex, Stapling, Punching, Resolution, Collation, EconoMode / TonerSaving, Smoothing, Page Protect, Auto Tray Change/Optional Tray Select, User Authentication
    표준
    @Remote Embedded
    Web Image Monitor
    옵션
    @Remote
    Streamline NX v3
    Global Scan NX
    Card Authentication Package
    Enhanced Locked Print NX
    Device Manager NX Lite
    Device Manager NX Accounting
    Printer Driver Packager NX
    @Remote Connector NX
    모바일 어플리케이션
    RICOH Smart Device Connector
    전원
    220–240 V, 8.5 A, 50/60 Hz
    소비 전력
    1,900 W or less—maximum power
    1,140 W or less—operating power
    400 W or less—Ready Mode
    163 W or less—Low Power Mode
    0.6 W or less—Energy Saver Mode (Sleep Mode)
    일반 전기 소비량(TEC)
    1.326 kWh
    예열시간
    20 seconds or less
    전력 절약 모드
    1 minute shift time—Energy Saver Mode (Sleep Mode)
    1 minute shift time—Low Power Mode
    복구 시간
    20 seconds—Energy Save Mode (Sleep Mode)
    10 seconds—Low Power Mode
    기타 환경 특징
    Eco-friendly indicator, Energy Saver Timer
