130LHB 250μm Facestock Direct Thermal Paper

  • Intense heat resistance
  • High resistance to UV-light
  • High resolution
  • Top and back barrier coated for high reliability

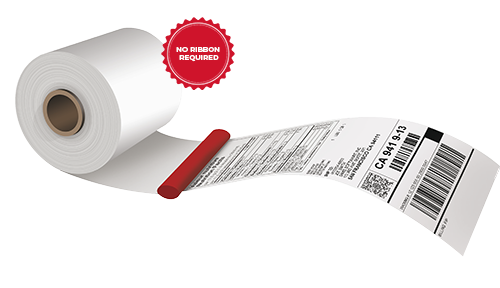

Ricoh Direct thermal paper no ribbon requiredRicoh Direct Thermal Paper (No ribbon required)
 1    Paper Quality Characteristics
Item UnitSpecificationTest Method
 Basis weight g/m2233 ±20JIS P-8124
 Thickness μm250 ±22JIS P-8118
 Tensile strength MDN/15mm147 min JIS P-8113
 CD N/15mm78 min
 Tear strength MDN1.50 min JIS P-8116
 CDN1.80 min
 Whiteness
%70 minJIS P-8123
2    Preservation
ItemUnitSpecificationTest Method
 Oil ResistanceImage 1.20 min40°C,Dry,15h
Background 0.25 max
Heat ResistanceImage -1.20 min100°C,Dry,24h
Background-0.25 max
Water ResistanceImage-1.00 minRoom temperature,15h
Background-0.20 max
Moisture ResistanceImage-1.20 min
40°C,90% RH,24h
Background-0.20 max
Light ResistanceImage-1.20 min5klx,15h
Background-0.25 max
Plasticizer Resistance FaceImage -1.20 min 40°C,Dry,15h
Background -0.25 max

Restriction of Hazardous Substances



Material Safety Data Sheets



Forest Responsibility



BPA Free



Chemicals Standards


Applications suitable for:

Image Properties

ItemUnit SpecificationTest Method
Image color - BlackVisual inspection
Static maximum density -1.30 minMacbeth Densitometer
