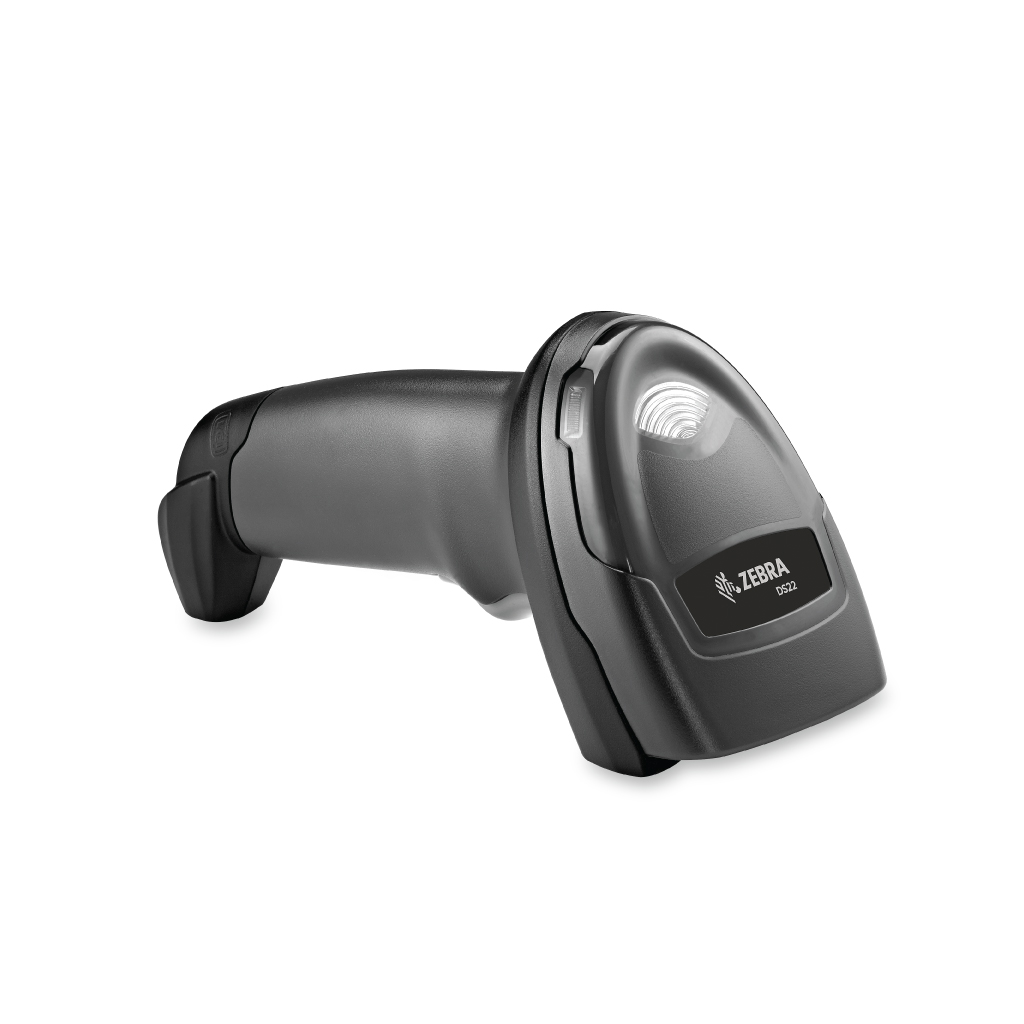

DS2208 DS2278 Barcode Scanner

  • Read 1D and 2D
  • Corded and cordless models
  • Multi-interface capabilities
  • Barcode Reader

  1. Easy to Use
    The DS2200 Series provides workers with best-in-class first time, every time scanning with point and shoot simplicity — regardless of barcode condition. And a Bluetooth™ model offers the easiest pairing on the planet and a guaranteed 14 hours of power
  2. Easy to Deploy
    Right out of the box, the scanner is configured for the applications you use every day, while auto-host detect cables automatically select the right host interface—just plug in the scanner and you’re ready to go.
  3. Easy to manage
    With the DS2200, you can easily control your scanners from a smartphone, tablet or PC. And the long-lasting 2400 mAh battery will most likely will never have to be replaced, eliminating the need to purchase and manage a spare battery pool.

Download PDF brochure



Specifications

Physical Characteristics

Dimensions:
Corded DS2208:
6.5 in. H x 2.6 in. W x 3.9 in. D
16.5 cm H x 6.6 cm W x 9.9 cm D
Cordless DS2278:
6.9 in. H x 2.6 in. W x 3.5 in. D
17.5 cm H x 6.6 cm W x 9.0 cm D
Presentation Cradle:
2.8 in. H x 3.7 in. W x 4.8 in. D
7.2 cm H x 9.4 cm W x 12.2 cm D
Weight:
Corded DS2208: 5.7 oz. / 161.6 g
Cordless DS2278: 7.5 oz. / 214 g
Presentation Cradle: 5.2 oz. / 151 g

Performance Characteristics
Motion Tolerance:  Up to 5 in./13 cm. per second for 13 mil UPC
Light Source: Aiming Pattern: Linear 624nm Amber LED
Illumination: 645nm Super-Red LEDs
Image Sensor: 640 x 480 pixels
User Environment
Operating Temperature:
DS2208/DS2278 Imagers:
32.0° to 122.0° F/0.0° to 50.0° C
Presentation Cradle:
32.0° to 104.0° F/0.0° to 40.0° C
Storage Temperature: -40.0° to 158.0° F/-40.0° to 70.0° C
Drop Specifications: Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Sealing: IP52
Connectivity

Supported Host Interfaces:
DS2208 : USB, RS232
DS2278 : Bluetooth

Power
Battery Capacity/Battery Type : 2,400 mAh Li-Ion Battery (DS2278)
