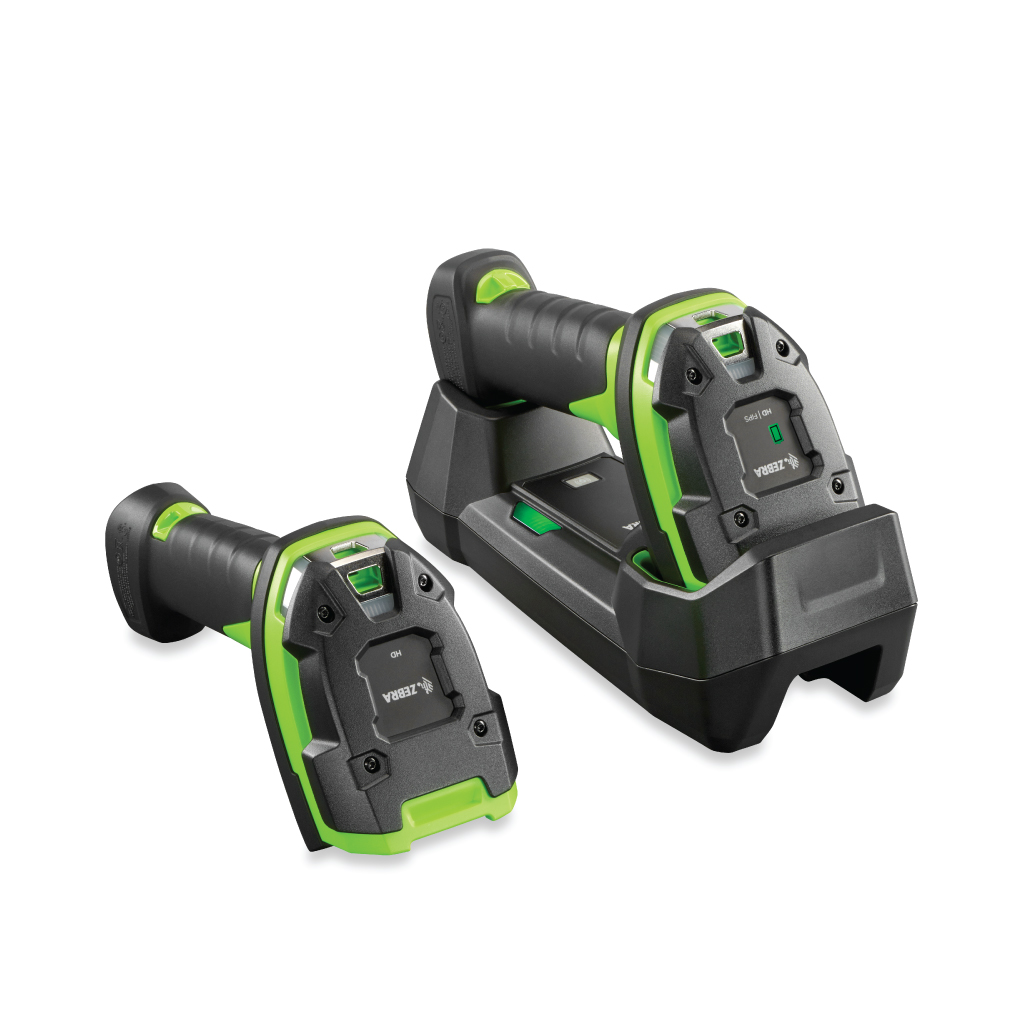

DS3608 DS3678 Ultra-Rugged Barcode Scanner

  • Ultra-rugged line of handheld scanners built to withstand extreme industrial environments
  • Can read barcodes from as close as a few inches to as far as 70 feet away
  • Highly resistant to destruction, dustproof, and waterproof according to IP65/IP68 standards
  • Barcode Reader, Barcode Scanner, Industrial Barcode Scanner

  1. Superior Performance
    We’ve packed the 3600 Series with our most advanced scanning technology. The result? Workers can dependably scan barcodes in any condition, as fast as they can pull the trigger, driving worker productivity and customer service to a new level.
  2. Ultra-rugged Design
    The ultra-rugged corded and cordless models are the only scanners in this class that are dust-tight, spray proof and waterproofed to IP68, with an IP65-sealed cradle for a complete rugged cordless solution.
  3. Unrivaled Manageability
    With our complimentary industry-best tools, managing these scanners couldn’t be easier. You can remotely configure and upgrade your scanners, format data properly for instant transmission into your business applications, monitor battery statistics and more.

Download PDF brochure



Specifications

Physical Characteristics

Dimensions:
DS3608 Corded: 7.3 in. H x 3.0 in. W x 5.2 in. D
18.5 cm H x 7.6 cm W x 13.2 cm D
DS3678 Cordless: 7.3 in. H x 3.0 in. W x 5.6 in. D
18.5 cm H x 7.6 cm W x 14.2 cm D
Weight:
DS3608 Corded: 10.9 oz./309 g
DS3678 Cordless: 14.5 oz./411 g

Performance Characteristics
Read: 1D, 2D, QR code
Scans per Full Charge: 100,000+
Illumination: Two (2) warm white light LEDs
Image Sensor: 1,280 x 960 pixels
User Environment
Operating Temperature:
Corded: -22° F to 122° F/-30° C to 50° C
Cordless: -4° F to 122° F/-20° C to 50° C
Storage Temperature: -40° F to 158° F/-40° C to 70° C
Drop Specifications:
DS36X8: Withstands multiple 10.0 ft/3.0 m drops to concrete at room temperature
DS3678: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C
DS3608: Withstands multiple 8.0 ft/2.4 m drops to concrete at -30° C to 50° C
Sealing: IP65 and IP68 per applicable IEC sealing specifications; FLB cradle: IP65
Connectivity

Supported Host Interfaces:
DS3608 : USB, RS232, Industrial Ethernet
DS3678 : Bluetooth

Power
Battery Capacity/Battery Type : PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
