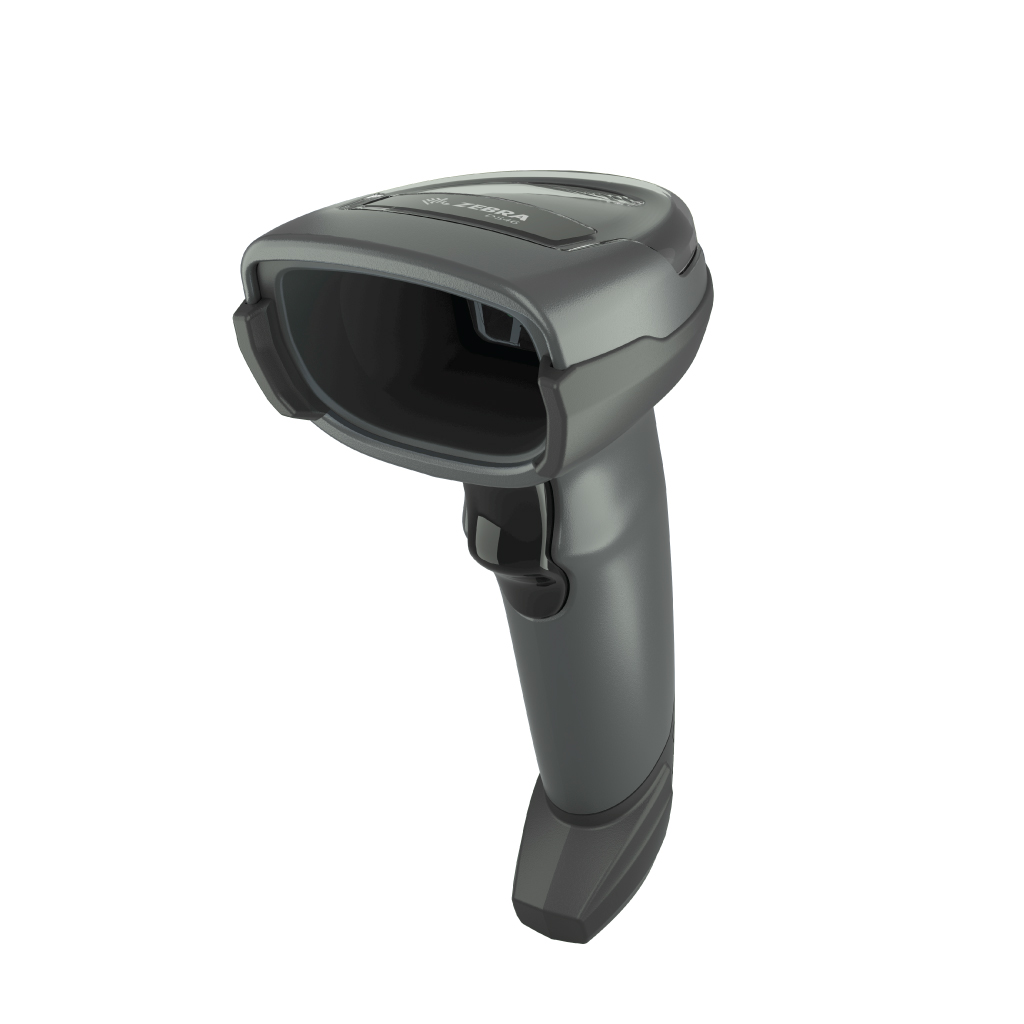

DS4608 DS4678 Barcode Scanner

  • Read 1D, 2D and OCR barcodes
  • Automatically read barcodes when placed on a stand
  • Suitable for use in shops, retail stores, warehouses and light manufacturing
  • Barcode Reader, Barcode Scanner

  1. Fastest Scanning Performance in Its Class
    Empower every associate and clinician to scan their best. An 800 MHz microprocessor, high-resolution megapixel sensor and Zebra’s exclusive PRZM Intelligent Imaging technology provide instant barcode capture on even the most challenging barcodes.
  2. Capture Virtually Any Barcode
    With an industry-leading scan range and bright aim dot, it’s easy for checkout associates to scan items in a shopper’s cart using the DS4600-SR. And the DS4600 Series for Manufacturing can also easily read tiny and dense barcodes printed on plastic and metal subcomponents, including laser-etched direct part marks.
  3. Made for everyday use
    The devices have an ergonomic design. They allow you to quickly switch between hand-held and presentation scanning. The mode adjusts automatically. The Zebra DS4600 barcode reader series is extremely robust. A double-sealed optical system protects the critical optical components. The hand-held scanners can withstand drops from a height of 1.8 m onto concrete and up to 2,000 tumbles. They are designed for everyday use and suitable for harsh environments.

Download PDF brochure



Specifications

Physical Characteristics

Dimensions:
Corded DS4608:
6.5 in H x 2.6 in W x 3.9 in D
16.5cm H x 6.7cm W x 9.8cm D
Cordless DS4678:
6.6 in H x 2.6 in W x 4.2 in D
16.8cm H x 6.6cm W x 10.7cm D
Standard Cradle:
2.8 in H x 3.3 in W x 8.3 in D
7.1cm H x 8.4cm W x 21.1cm D
Presentation Cradle:
2.8 in H x 3.3 in W x 8.3 in D
7.1cm H x 8.4cm W x 21.1cm D
Weight:
Corded: 5.7 oz (161.9g)
Cordless: 7.9 oz (225g)
Standard Cradle: 7.1 oz (201.3g)
Presentation Cradle: 6.5 oz (184.3g)

Performance Characteristics
Read: 1D, 2D, QR code, OCR
Light Source: Aiming Pattern: circular 617nm amber LED
Illumination: 660nm red LEDs
Image Sensor: 1280 x 800 pixels

User Environment
Operating Temperature: +32.0F to +122.0F (0.0C to +50.0C)
Storage Temperature: -40.0F to +158.0F (-40.0C to +70.0C)
Drop Specifications:
Designed to withstand multiple drops at 6.0 ft (1.8m) to concrete
Sealing: IP52
Connectivity

Supported Host Interfaces:
DS4608 : USB, RS232
DS4678 : Bluetooth

Power
Type: Li-Ion with asset reporting
Capacity: 2,500 mAh\
Number of scans from full charge: 50,000
Charge times from empty to full:
2 hours 15 minutes over external 12V
4 hours 30 minutes over external 5V
3 hours over BC1.2 USB
7 hours 45 minutes over standard USB
