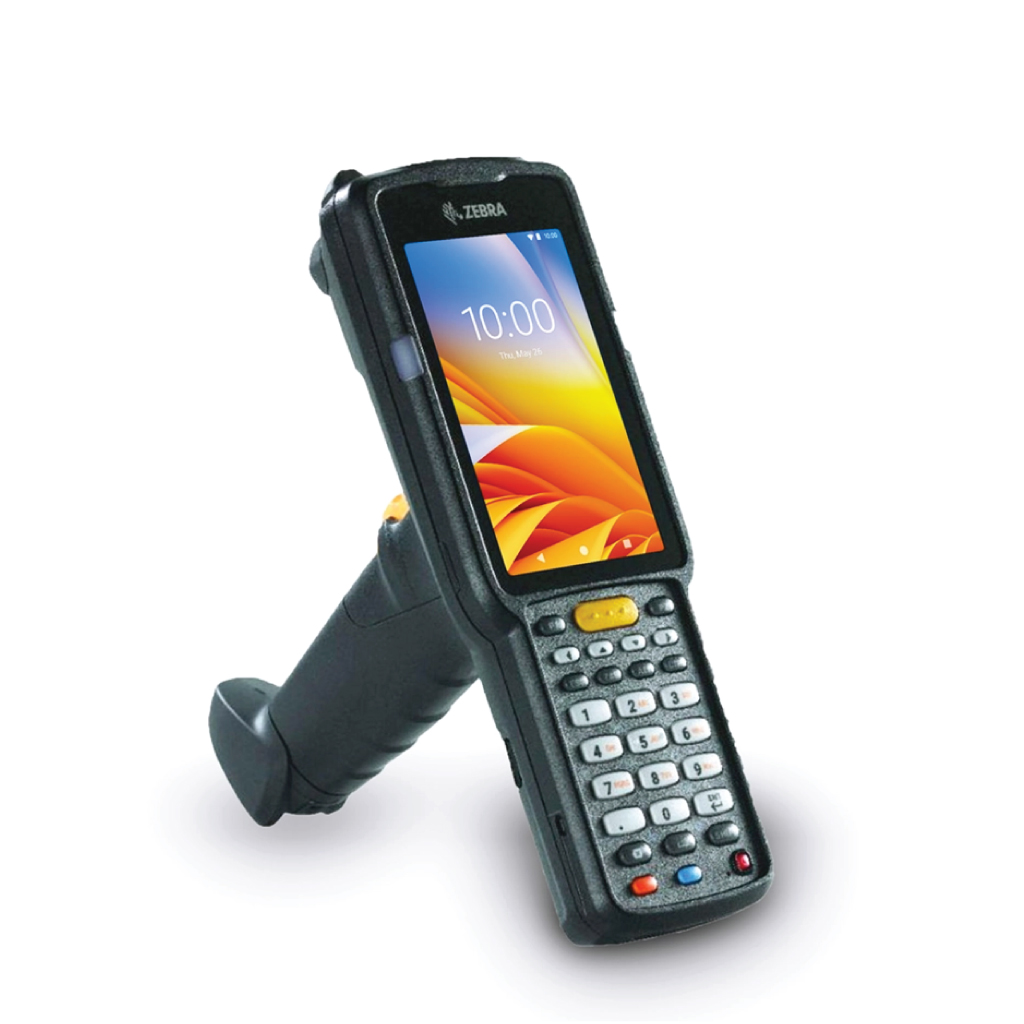

MC3300 Mobile Computer

  • Qualcomm® APQ8056 Processor, 1.8GHz Hex-Core
  • Large 4-inch screen
  • IP64 Multiple 5 ft./1.5 m drops to concrete
  • Handheld Mobile computer
Related Links
    The Easy Way to Power Your Business with Advanced Android Mobile Computing

    The highly successful MC33X Series is the lightweight,
    versatile,     key-based Android handheld computer that
    fits right at home in the warehouse, back of the store
    or the manufacturing floor.

    1. Multiple Form Factors
      How can you get greater productivity, efficiency and comfort from a mobile computer? The versatile MC33xx Series lets you select the right ergonomics for every use case. Choose between pistol grip, turret with rotating head, straight shooter 0º scan and 45º scan (turret and 45º scan available on MC3300x only)
    2. Rugged and Long Lasting
      The MC33xx Series is purpose-built for a wide variety of environments – with different levels of performance for drop, tumble and ingress protection. You can select the best device that is optimized for your use case needs
    3. World-class Data Capture
      Data capture is a key part of the day-to-day operation of the MC33xx Series. With its extensive selection of data capture options covering short, medium and long-range scanning, we have you covered from less than 3 in./7.62 cm all the way up to 70 ft./12.4 m

    Download PDF brochure

    Specifications

    Physical Characteristics

    Dimensions:
    MC3300x Straight Shooter (45° Scan and 0° Scan):
    7.96 in. L x 2.94 in. W x 1.35 in. D
    202.2 mm L x 74.7 mm W x 34.5 mm D

    MC3300x Turret/Rotating Head:
    8.79 in. L x 2.94 in. W x 1.35 in. D
    223.4 mm L x 74.7 mm W x 34.5 mm D

    MC3300x Gun/Pistol:
    7.96 in. L x 2.94 in. W x 6.45 in. D
    202.6 mm L x 74.7 mm W x 163.9 mm D

    Weight:
    MC3300x Straight Shooter (0° Scan): 15.7 oz./445 g
    MC3300x Turret/Rotating Head: 16.2 oz./460 g
    MC3300x Gun/Pistol: 18.4 oz./522 g
    MC3300x (45° Scan): 15.9 oz./450 g

    Display: 4 in. WVGA (800 x 480), LED backlight, color display

    Touch Panel: Corning® Gorilla® Glass touch panel with air gap; supports dual input mode with finger, gloved finger and stylus (conductive stylus sold separately)

    Expansion Slot: User accessible MicroSD card supports up to 2 TB

    Notifications: Audible tone; multi-color LEDs; haptic feedback

    Keypad: On-screen keypad and enterprise keyboard

    Audio: Three microphones with noise cancellation; vibrate alert; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; PTT headset (3.5 mm and Zebra USB-C) support; cellular circuit switch voice; HD voice; Super-wideband (SWB) and Full band (FB) audio; 3.5 mm audio jack only on WLAN SKUs

    Buttons: Programmable buttons for maximum flexibility: dual dedicated scan buttons, dedicated push-to-talk button, volume up/down buttons and trigger buttons of trigger handle via Back I/O.

    Performance Characteristics

    CPU: Qualcomm SnapdragonTM 660 octa-core, 2.2 GHz
    Operating System: Upgradeable to Android 14
    Memory: Worldwide: 4 GB RAM/32 GB Flash Memory
    China only: 4 GB RAM/16 GB Flash Memory

    User Environment
    Operating Temp: -4°F to 122°F/-20°C to 50°C
    Storage Temp: -40°F to 158°F/-40°C to 70°C
    Drop Specifications: Multiple 6 ft./1.8 m drops to concrete across the operating temperature range per MIL-STD-810G
    Sealing: IP64 per applicable IEC sealing specifications

    Connectivity
    Connectivity: TC53 WLAN, WPAN (Bluetooth) TC58 WWAN 5G
    SIM: User accessible MicroSD with 32GB SDHC and up to 512GB SDXC
    Data Capture

    Scanning:
    MC3300x Brick/Straight Shooter (0° Scan):
    SE965 1D, SE4720/SE4770 2D, SE4850 ERI

    MC3300x Turret/Rotating Head:
    SE965 1D Laser

    MC3300x Gun/Pistol:
    SE965 1D, SE4720/SE4770 2D, SE4850 ERI

    MC3300x (45° Scan):
    SE4770 2D


    Rear Camera:     13MP color camera with LED flash (optional on Straight Shooter and Turret configurations only)

    Power
    All models ship with rechargeable Li-Ion, 3.6V, 7000mAh PowerPrecision+ battery; full charge under five (5) hours; hot swap support with temporary WLAN/Bluetooth session persistence

    Backwards compatibility with MC3300 2740mAh
    (1X) and 5200mAh (2X) batteries
