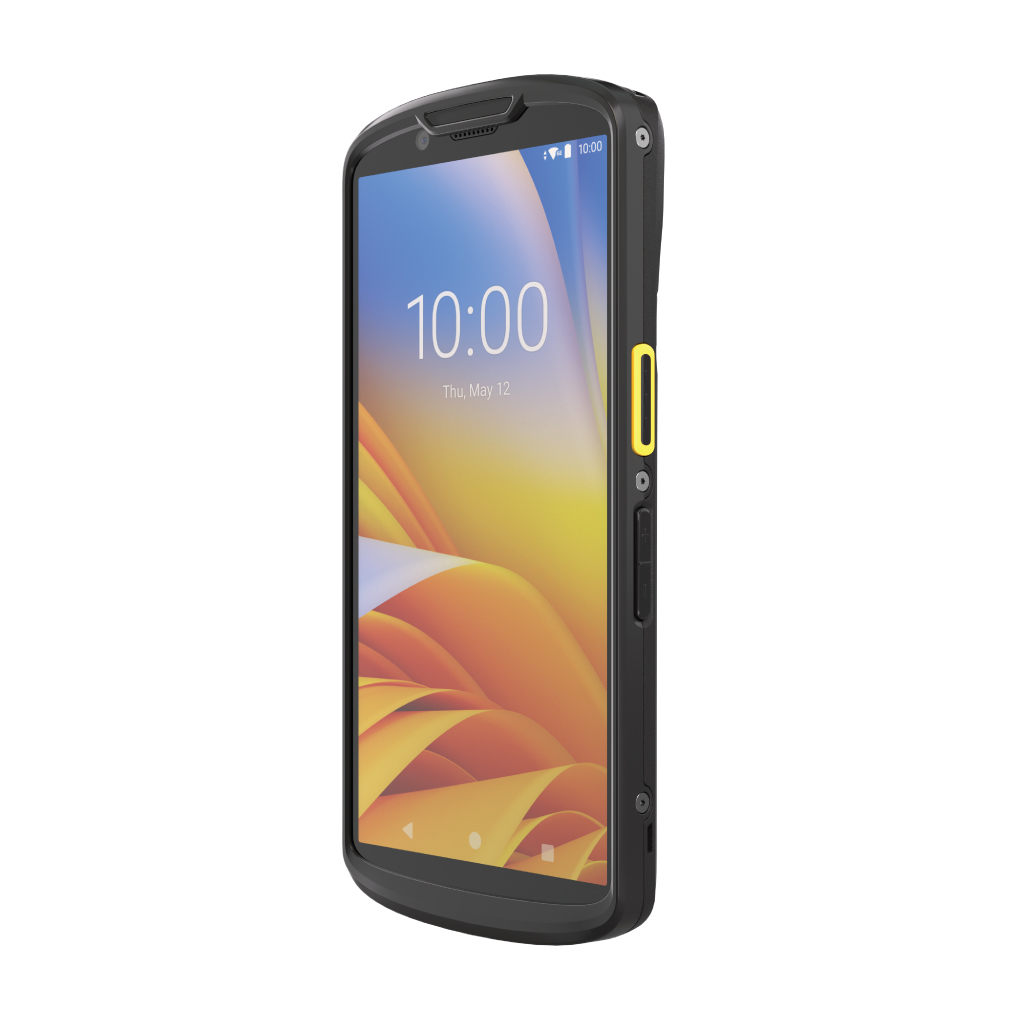

TC53 TC58 Mobile Computer

  • Industry-leading 6-inch advanced display
  • Lighter, thinner and tougher - Additive Molding first-of-its kind manufacturing and materials technology
  • Manage batteries with Zebra’s Power Precision+ standard 4400 mAh and extended 6600 mAh batteries
  • Handheld Mobile computer

  1. Blazing speed
    Get virtually instant response times in the most demanding applications with class-leading processing power, memory and storage — the next-generation Qualcomm® 6490 octa-core processor, up to 8 GB of RAM and 128 GB of Flash, plus a 2 TB MicroSD card slot.
  2. All the latest wireless connections
    Give your workers the fastest speeds with Wi-Fi 6E and 5G. And support for CBRS private LTE networks enables cost-effective wireless connectivity in the largest indoor and outdoor facilities.
  3. Unmatched battery technology
    Get full shift power and the intelligence to better manage batteries with Zebra’s PowerPrecision+ standard 4680 mAh and extended 7000 mAh batteries.
  4. Choose standard or advanced range scanning
    Choose the SE4720 1D/2D scan engine for
    standard scanning ranges or the SE55 1D/2D
    Advanced Range scan engine with Intellifocus™
    technology to scan items in hand or over 40 ft./12 m
    away (distance dependent on symbology type and size).
    Both options deliver split-second first-time capture of
    virtually every barcode, regardless of condition.

Download PDF brochure



Specifications

Physical Characteristics

Dimensions:
6.48 in. L x 3.04 in. W x 0.66 in. H
164.8 mm L x 77.35 mm W x 16.75 mm H
Weight:
10.3 oz./293 g with standard battery
Display:
6.0 in. Full High Definition; 1080x 2160; LED backlight; 600 NITS; optically bonded to touch panel
Touch Panel: Multi-mode capacitive touch with bare or gloved fingertip input or conductive stylus (sold separately), Corning Gorilla Glass; water droplet rejection; fingerprint resistant anti-smudge coating
Expansion Slot: User accessible MicroSD card supports up to 2 TB
Notifications: Audible tone; multi-color LEDs; haptic feedback
Keypad: On-screen keypad and enterprise keyboard
Audio: Three microphones with noise cancellation; vibrate alert; dual speakers for loudness; Bluetooth wireless headset support; high quality speaker phone; PTT headset (3.5 mm and Zebra USB-C) support; cellular circuit switch voice; HD voice; Super-wideband (SWB) and Fullband (FB) audio; 3.5 mm audio jack only on WLAN SKUs
Buttons: Programmable buttons for maximum flexibility: dual dedicated scan buttons, dedicated push-to-talk button, volume up/down buttons and trigger buttons of trigger handle via Back I/O.

Performance Characteristics

CPU: Qualcomm 6490 octa-core, 2.7 GHz
Operating System: Upgradeable to Android 16
Memory:
4GB RAM/64GB UFS Flash.
8GB RAM/64GB UFS Flash.
8GB RAM/128GB UFS Flash.

User Environment
Operating Temp: -4°F to 122°F/-20°C to 50°C
Storage Temp: -40°F to 158°F/-40°C to 70°C
Drop Specifications:
Multiple 6 ft./1.8 m drops to concrete over operating temp (-20°C to 50°C/-4°F to 122°F) with protective boot per MIL STD 810H
Multiple 5 ft./1.5 m drops to tile over concrete (-10°C to 50°C/14°F to 122°F) per MIL STD 810H
Sealing: IP68 and IP65 with battery per applicable IEC sealing specifications
Connectivity
Connectivity: TC53 WLAN, WPAN (Bluetooth) TC58 WWAN 5G
SIM: TC58 only: 1 nano SIM; 1 eSIM

Data Capture
Scanning: SE55 1D/2D Advanced Range Scan Engine with Intelli Focus™ technology; SE4720 1D/2D Scan Engine
Rear Camera: 16 MP; optional front camera 8 MP
Power
Standard battery: 4680 mAh
Extended battery: 7000 mAh
Wireless Communications
GPS, Wi-Fi Multimedia™
