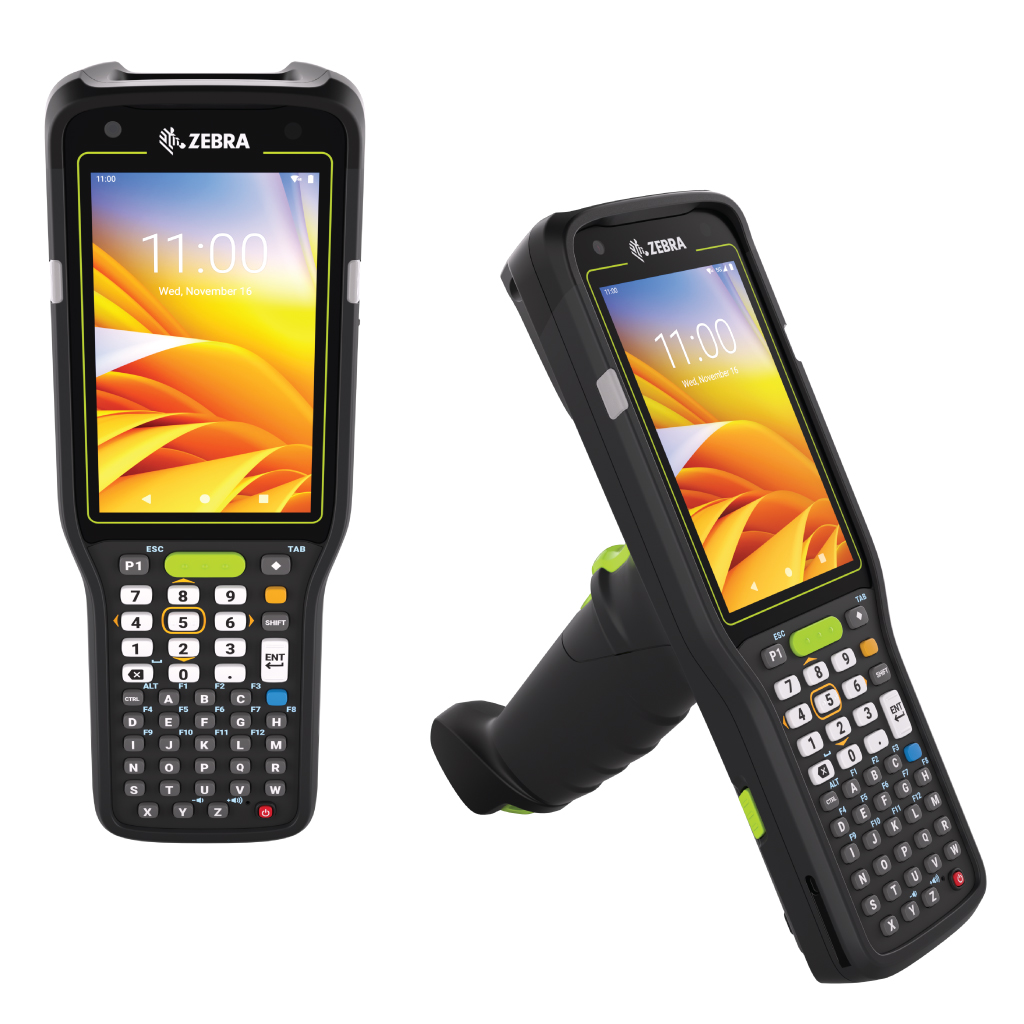

MC3400 MC3450 Mobile Computer

  • Qualcomm® 4490 octa-core, 2.4 GHz
  • 4 in WVGA (800 x 480), color display
  • Dual IP65 and 67
  • Handheld Mobile computer

  1. Keep workers connected, no matter where they are
    Wi-Fi 6E plus private and public 5G connectivity provides workers with fast and reliable wireless connections — from the production floor to the farthest corner of the warehouse, including vast outdoor ports and yards. And with a physical nano SIM and eSIM, you can support two networks on a single device.
  2. Faster, easier and more accurate data entry — even with gloves
    With larger keys and more space between the keys, data entry is easier — increasing productivity and reducing keying errors. And you can choose the keypad that best suits the type of data your workers enter with a choice of 47-key, 38-key and 29-key keypads.
  3. Power practically any application
    The Qualcomm® 4490 processor delivers nearly 2.5x more power, providing superior application performance. And with 50% more RAM and four times the Flash, there’s plenty of memory for data storage — and multi-tasking.
  4. More rugged, more reliable, more uptime
    The MC3400 and MC3450 are the most rugged MC3000 Series devices yet, now drop-proof, tumble-proof, dust-proof and waterproof — able to handle being submerged in water and hosed down.
  5. Choose the right scanner for the job
    Different use cases require different scanners. For standard barcode capture, choose the SE4710 1D/2D Scan Engine.To capture barcodes, photos and documents indoors and outdoors — even in bright sunlight — choose the SE4770 1D/2D Scan Engine with a red laser aimer. Need a flexible scan range? The SE55 1D/2D Advanced Range Scan Engine with Intellifocus™ technology captures barcodes in-hand and on a top warehouse rack — over 40 ft (12.2m) away. And if you need extended range scanning up to 100 ft (30.5m) away, the SE58 Extended Range 1D/2D Scan Engine is ideal for scanning containers in ports and yards. And all options deliver split-second first time capture of virtually every barcode, regardless of condition.

Download PDF brochure



Specifications

Physical Characteristics

Dimensions:
Straight Shooter: 8.2 in L x 2.9 in W x 1.5 in H
(208.5mm L x 73.5mm W x 37.1mm H)
Gun: 8.2 in L x 2.9 in W x 6.5 in H
(208.5mm L x 73.5mm W x 165.3mm H)
Weight:
Straight Shooter: 15.6 oz (442g)
Gun: 18.6 oz (528g)
Display:
4 in WVGA (800 x 480), color display,
Standard: 350 NITS (typical), Expanded/Full:
600 NITS (typical)
Touch Panel: Dual mode capacitive touch with finger,
gloved finger or stylus input (conductive
stylus sold separately) Corning Gorilla Glass
optically bonded
Expansion Slot: MicroSD supports up to 2 TB
Notifications: Audible tone; multi-color LEDs (2); haptic feedback
Keypad: Numeric (29 key), Function Numeric (38 key), Alpha Numeric (47 key)
Audio: Speaker, microphone, Push-to-Talk (PTT Voice; internal speaker, Bluetooth wireless headset support, USB-C headset)
Buttons: Trigger scan button (Gun); Keypad scan button, Side Scan Keys (Straight Shooter)

Performance Characteristics

CPU: Qualcomm® 4490 octa-core, 2.4 GHz
Operating System: Android; for supported Android versions
Memory:
Standard: 4 GB RAM/64 GB Flash
Expanded: 6 GB RAM/64 GB Flash
Full: 6 GB RAM/128 GB Flash

User Environment
Operating Temp: -4°F to 122°F/-20°C to 50°C
Storage Temp: -40°F to 158°F/-40°C to 70°C
Drop Specifications: Multiple 6 ft./1.8 m drops to concrete across the operating temperature range per MIL-STD-810G
Sealing: IP64 per applicable IEC sealing specifications

Connectivity
Connectivity: MC3400/MC3450: WLAN, WPAN (Bluetooth),
USB 2.0 High Speed (host and client); MC3450
only: WWAN 5G, data only
SIM: MC3450 only: 1 nano SIM; 1 eSIM

Data Capture

Scanning:
SE58 1D/2D Extended Range Scan Engine with
IntelliFocus™ technology; SE55 Advanced
Range Scan Engine with IntelliFocus™
technology; SE4770 1D/2D Scan Engine
SE4710 1D/2D Scan Engine
Rear Camera:
Front: 5 MP
Rear: 13 MP autofocus
flash LED generates balanced white light; supports Torch mode + HDR

Power
Standard Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.2 Wh); Hot swap battery backup with temporary session persistence
