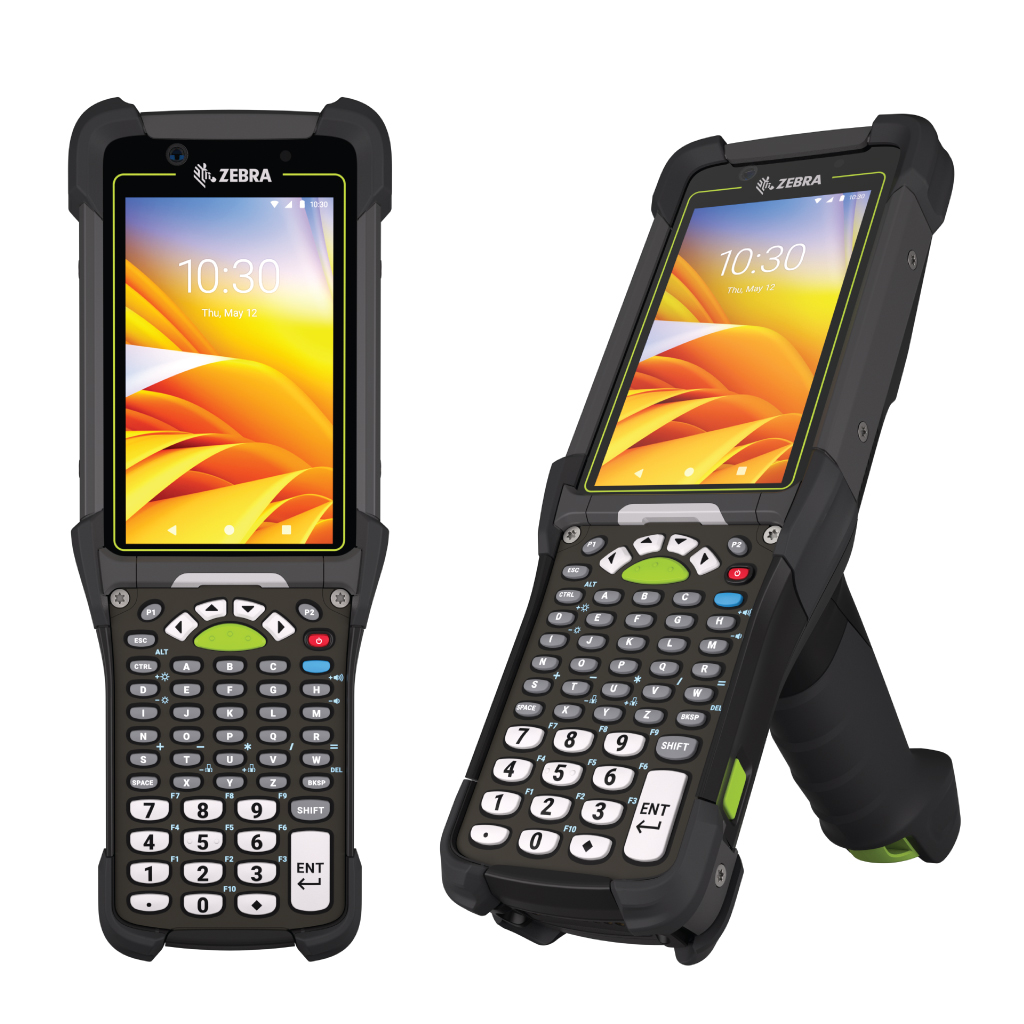

MC9400 MC9450 Mobile Computer

  • Qualcomm® 4490 octa-core, 2.4 GHz
  • 4.3 in WVGA (800 x 480), color display
  • Dual IP65 and 68
  • Handheld Mobile computer

  1. Private and public 5G — new cost-effective wireless options
    These are the first gun-style devices to offer private and public 5G wireless data connectivity, bringing new affordable wireless networking options to expansive outdoor and indoor environments. And with two SIM card options — nano SIM and eSim — you can support private and public 5G connections simultaneously for network redundancy or deploy different wireless networks in different areas of the business.
  2. The power to handle all your applications —
    simultaneously
    Voice and line of business apps, simple ‘green screen’ legacy
    apps, apps powered by augmented reality and artificial
    intelligence — no matter how many applications workers need
    to use, the MC9400/MC9450 can power them, all at once. Take
    application performance to the next level. Compared to the
    MC9300, the new Qualcomm platform delivers 2.5x more
    processing power, 50 percent more RAM, four times the Flash
    and eight times micro SD storage.
  3. The latest in advanced scanning technology
    Give your workers an unmatched scanning range with the new
    SE58 Extended Range Scan Engine with IntelliFocusᵀᴹ
    technology. Scan barcodes in hand to over 100 ft./30.5 m
    away² — substantially farther than any scanner on the market.
    And the innovative green laser aimer is up to seven times
    more visible than the typical red aimer dot, making it easy to
    scan items on top warehouse racks.

Download PDF brochure



Specifications

Physical Characteristics

Dimensions:
9.4 in. L x 3.5 in. W x 7.4 in. H
240 mm L x 88 mm W x 189 mm H
Weight:
26.2 oz./743 g with battery
Display:
4.3 in. WVGA (800 x 480), color display, 600
NITS (typical)
Touch Panel: Dual mode capacitive touch with finger,
gloved finger or stylus input (conductive
stylus sold separately); screen protector (sold
separately); Corning Gorilla Glass with air gap
(standard model) or optically bonded (freezer
model)
Expansion Slot: MicroSD supports up to 2 TB
Notifications: Audible tone; multi-color LED; haptic feedback
Keypad: Backlit, field replaceable keypads; 58 Key
AlphaNumeric, 53 Key AlphaNumeric STD, 53
Key Terminal Emulation (5250 and VT), 43
Key/34 Key Numeric/Function, 29 Key
Numeric/Calculation
Buttons: Trigger scan button (Gun); Keypad scan button, Side Scan Keys (Straight Shooter)

Performance Characteristics

CPU: Qualcomm® 4490 octa-core, 2.4 GHz
Operating System: Android; for supported Android versions
Memory:
Standard: 4 GB RAM/64 GB Flash
Expanded: 6 GB RAM/64 GB Flash
Full: 6 GB RAM/128 GB Flash

User Environment
Standard: -4°F to 122°F/-20°C to +50°C,
Freezer: -22°F to 122°F/-30°C to +50°C
Drop Specifications:
Exceeds per MIL-STD-810H: 12 ft./3.65 m to
concrete; Enterprise drops standard 8 ft. (2.4m) to concrete across temperature (-20°C to
50°C) exceeding MIL-STD-810H
Freezer version: 7 ft. (2.1 m) to concrete (-30°C
to 50°C) exceeding MIL-STD810H
Sealing: Dual IP65 and 68 rating with battery per applicable IEC sealing specifications
Connectivity
Connectivity: MC9400/MC9450: WLAN, WPAN (Bluetooth),
USB 2.0, High Speed (host and client); MC9450
only: WWAN 5G; data only
SIM: MC9450 only: 1 nano SIM; 1 eSIM
Data Capture

Scanning:
SE58 1D/2D Extended Range Scan Engine with
IntelliFocus™ technology; SE55 Advanced
Range Scan Engine with IntelliFocus™
technology; SE4770 1D/2D Scan Engine
Rear Camera:
Front: 8 MP
Rear: 16 MP autofocus
flash LED generates balanced white light; supports Torch mode + HDR

Power
Standard Rechargeable Li-Ion: 3.6V, 7000mAh (25.20 Wh); Optional BLE Battery Li-Ion 3.6V, 7000mAh (25.2 Wh); Hot swap battery backup with temporary session persistence
