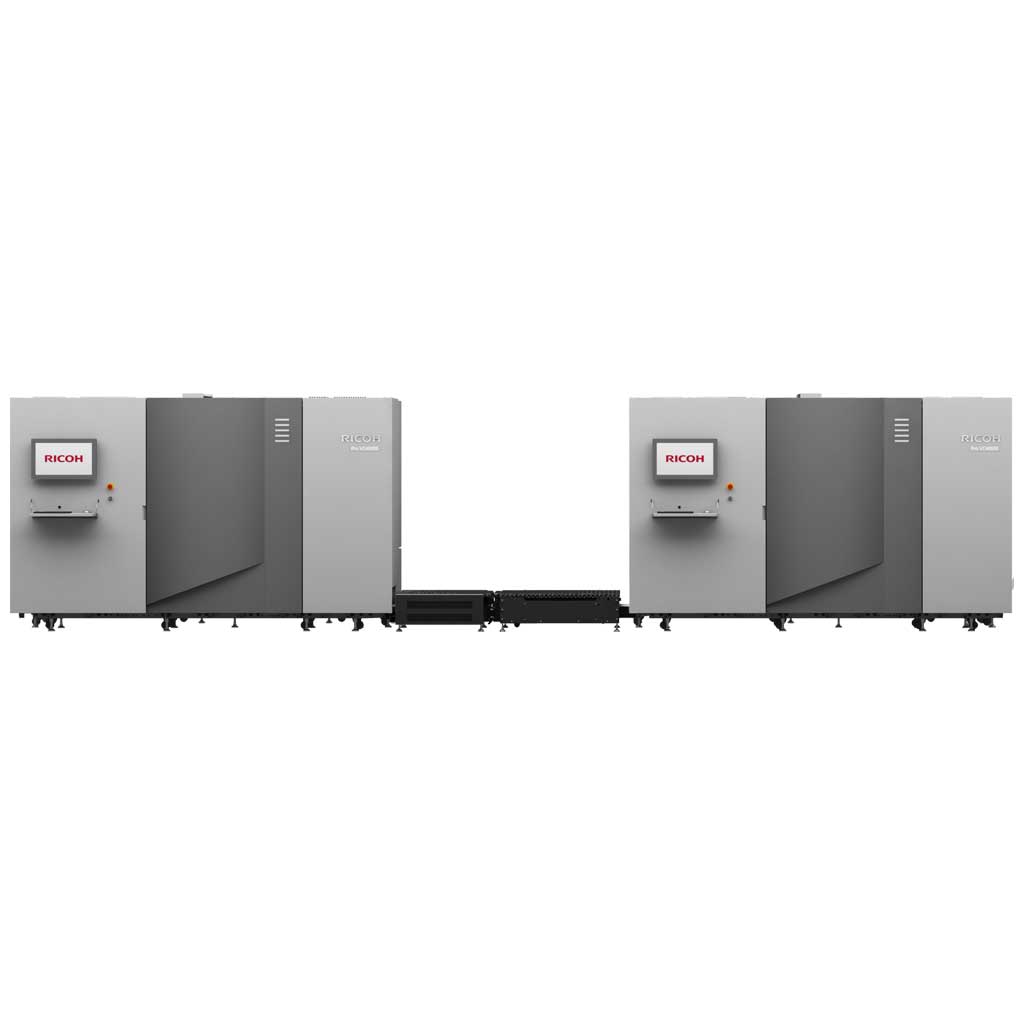

Pro VC40000 Continuous feed production printer

  • Prints up to 180 metres per minute—600 x 400 dpi
  • 600 x 400 dpi, 600 x 450 dpi, 600 x 600 dpi
  • Piezo Drop-on-Demand inkjet printheads—dynamic variable-drop size technology produces up to three different drop sizes
  • 4-colour (CMYK)—MICR ink option available

Consistent high quality results

Key features such as the latest aqueous inks, printheads with dynamic variable drop size, 600 dpi resolution, tight web, and advanced front and back page registration enable the Pro VC40000 to produce vivid, compelling materials that capture attention.

Simplified colour management

Produce the results your customers require every time with all the necessary tools to create your own profiles and help you understand how to get the most from the system. Ricoh's colour management experts can also assist with colour matching, colour calibration, staff training, and more.

  1. Expand your horizons
    Build a foundation for growth that enables you to attract new customers while strengthening current relationships.
  2. Power up your productivity
    Improve productivity and throughput so you can meet tight turnaround times as well as take on more jobs.
  3. Operate with confidence
    The Pro VC40000 is part of a continuous feed inkjet family that has demonstrated exceptional dependability in the most demanding production print environments for years.
  4. Rely on our expertise
    Ricoh's consultative approach and expertise ensure that you are making the right investment to enable your success.

Specifications

功能
Print
彩色
Yes
色彩控制器 - 選配
Ricoh TotalFlow R600A Digital Front End
Note: The Ricoh TotalFlow R600A controller is a mandatory option.
設備配置
Base unit (2 units per configuration)
2 print engines per duplex system in I (inline) or H configuration
體積(WxDxH)- 設備主體
3,240 x 1,870 x 1,971 mm—base unit
重量 - 設備主體
2,750 kg—base unit
紙張輸出配置 - 其他
Pre- and post-processing
Multiple partners provide a variety of unwind, rewind, cut, fold, dynamic perforation, vision systems and inline processing, including a solution for books
支援材質媒介
Uncoated, Ink Jet Treated, Ink Jet Coated
最大紙張尺寸
Length: 101.6–1371.6 mm, Width: 165–520 mm
紙張重量(g/m2)
40–250
送紙方向
Tight web
Web width—520.7 mm
彩色列印速度
4 colours, 2-bit, 2-up duplex
50 mpm, 100 mpm, 120 mpm, 180 mpm at 600 x 600 dpi—Black Enhanced and Monochrome modes
120 mpm, 150 mpm at 600 x 450 dpi
目標量
Up to 40 million impressions/month
印刷技術
Piezo Drop-on-Demand
Dynamic variable drop size
墨水種類
Pigment, Dye and MICR
Curing method
Radiant
墨水配置
4-colour CMYK
噴頭
Drop-on-Demand Piezo printhead
列印解析度
Up to 600 x 600 dpi
TotalFlow
Ricoh TotalFlow R600A Digital Front End

Industry leading colour management control
Enhanced impositioning tool
JDF/JMF enabled
Graphical user interface with remote access support

Data Stream Support
PostScript, PDF (APPE), PDF/VT, IPDS

Job Submission
FTP, IPP, LPR, Raw Port, Operator Console, Virtual Printer/Hot Folder Support

Graphical User Interface
Display on each print engine
Login by Role: Admin, Operator, Maintenance, or Customisable
Highly customisable user interface layout by role
Graphical Printer and Supplies Status
Operator Messages
Paper Catalogue/Paper Setup

Job Management
Graphical Job Ticketing/Job Preview – Native JDF
- Banner, Operator Comments, Sides Printed, Copies, Rotate, Reduce/Enlarge, Image Alignment, Special Marks
Job Imposition
Job Queue Management
- Submit, Suspend, Hold, Process Next, Delete Job
View Jobs
- Job Status: Active, Inactive, Stored, All Jobs, Job History

Colour Management
ICC Profile Support Enhanced Colour Management by Side and Object Type
Device Link Support
Spot colour dictionaries (Pantone, Toyo, DIC, and HKS)
CMR Support (AFP/IPDS)
安全標準

ISO 12100
ISO 13849-1
EN 60204-1
EN 1010-1
EN 1010-2
EN 60950-1
UL60950-1
CAN/CSA C22.2 No.60950-1
JIS C 6950-1
IEC60950-1

電磁兼容性(EMC)標準
EN 61000-6-2
EN 61000-6-4
EN 61000-3-2
EN 61000-3-3
FCC Part15 Subpart B (Class A)
DOC ICES-003 Class A
VCCI (Class A)
KN61000-6-2
KN11 (KN61000-6-4)
操作環境
Operating temperature
18–24° C

Operating humidity
40–60%
