135FTS-L 80 Film Base

  • High heat and water resistance
  • Plasticizer & alcohol resistance
  • Superior image quality and excellent image preservation
  • Special design for wristband's material

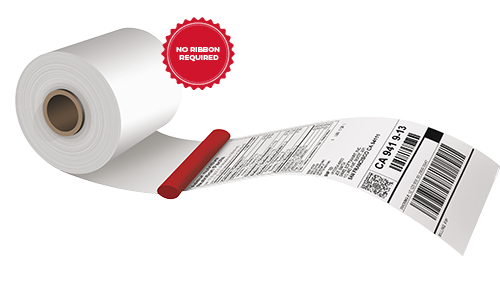

Ricoh Direct thermal paper no ribbon requiredRicoh Direct Thermal Paper (No ribbon required)
 1    Paper Quality Characteristics
Item UnitSpecificationTest Method
Basis weight
g/m270 ± 5
ISO 536
Thicknessμm84 ± 5
ISO 534
Tear strengthMDN0.20 minISO 1974
CDN0.15 min
Tensile strengthMDkN/M15 minISO 1924
CDkN/M20 min
Whiteness %85 minISO 2470
Smoothness s1000 min Oken type instrument
2    Preservation
ItemUnitSpecificationTest Method
 Water ResistanceImage 1.20 min20°C,15h
Background 0.20 max
Heat ResistanceImage -1.20 min90°C,Dry,1h
Background-0.25 max
Vegetable Oil ResistanceImage-1.00 min80°C, Dry, 24h
Background-0.20 max
Humidity ResistanceImage-1.20 min
40°C, 90%, 24h
Background-0.20 max
Light ResistanceImage-1.20 min5klx,100h,25°C, 50%
Background-0.20 max
Plasticizer Resistance FaceImage -1.20 min40°C,15h
Background -0.20 max

Restriction of Hazardous Substances



Material Safety Data Sheets



Forest Responsibility



BPA Free



Chemicals Standards


Applications suitable for:


Image Properties

Item UnitSpecificationTest Method
Image color - BlackVisual inspection
Static image sensitivity -1.25 minHeat gradient tester 200~160oC
Dynamic image sensitivity Mj/dot0.35 maxRicoh standard simulator
