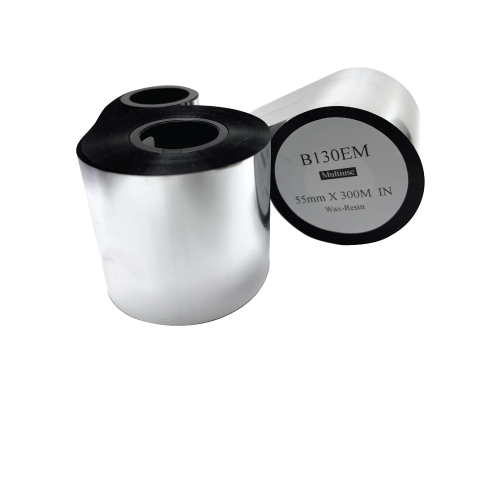

B130EM TTO Wax Resin

  • Adapt medium and high print speed
  • Wide range of flexible packaging and label materials
  • Abrasion resistance

Ribbon Properties

  • Base Film: BOPET
  • Base film thickness: 4.0 ± 0.2 μm
  • Total ribbon thickness: 6.2 ± 0.5 μm

 Application



Storage Condition

Usage conditions: 5 to 35°C at 30 to 85% of relative humidity.

Storage conditions: Keep indoors avoiding high temperature, high humidity, direct sunlight.

Storage life: 24 months after production.

Printed Image Durability

 TESTSRESULT

Abrasion resistance

 OPP: 100 times (200g weight)
Solvent resistance             OPP: 20 times (200g weight, 95% ethanol)
Oil resistanceOPP: 6 times (200g weight)
 Low temperature
No change in label print
(tested in closed cold box at -17°C for 20 hours)
***The above data represents product averages, allowing for industry accepted variances. These products should be tested in the end-use conditions to ensure that they meet the requirements of the specific application. Specifications may change without notice.

Certificates

MSDS   RoHS   Halogen Free
