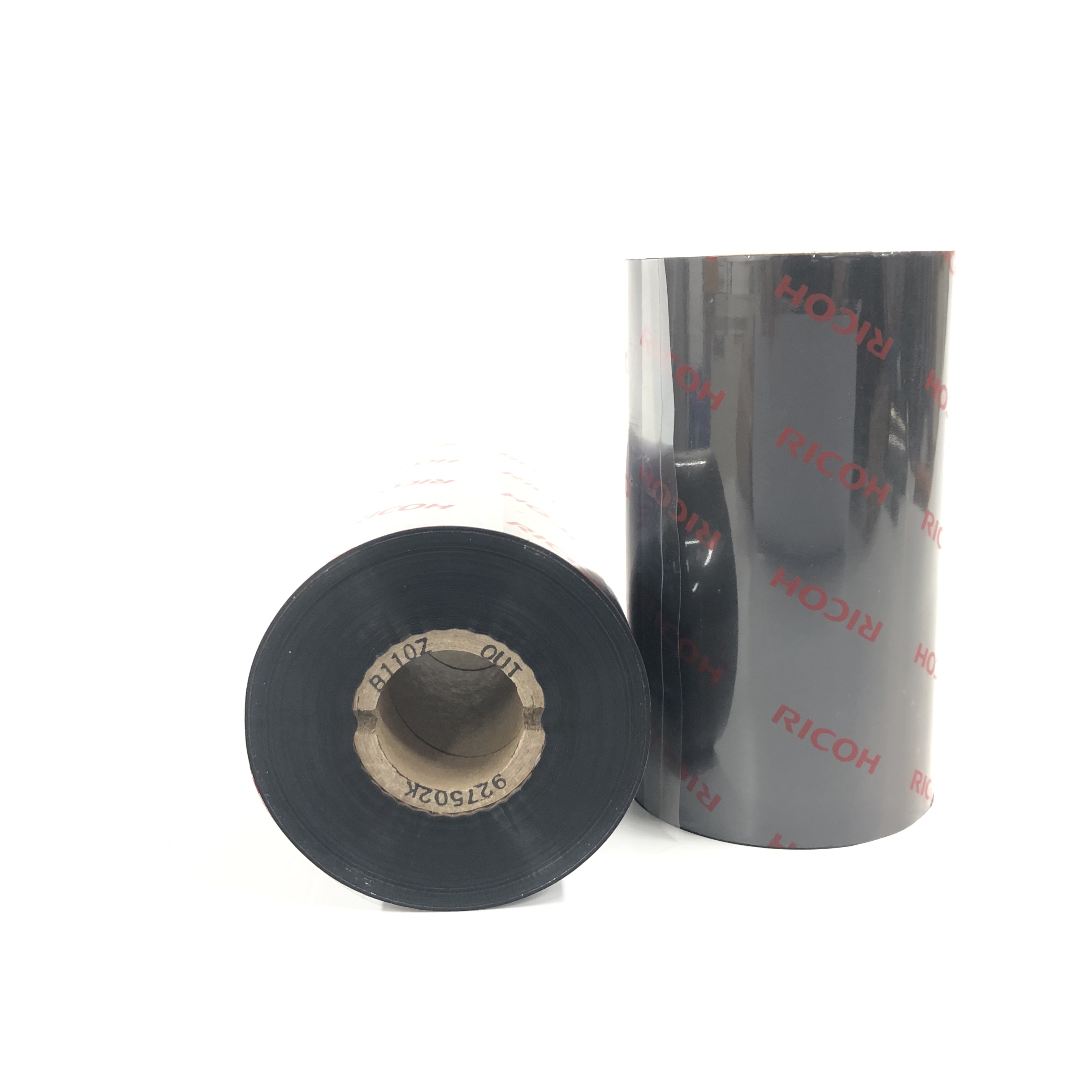

Ribbon B115Z Multipurpose Wax Resin

High scratch and smear resistance
High sensitivity at low energy levels
Applicable to a wide range of receiving labels: paper, coated paper, PET/PP/PE/PVC films...

Ribbon Properties

Total ribbon thickness: 9 μm
Polyester film thickness: 4.5 μm
Friction coefficient: < 0.035

Ink melting point: 84°C
Tearing resistance: > 200N/mm²
Transmission density: 1.00 mini

Download Datasheet

Request sample roll

Application

Blood bag label
Cloth Tag
Medicine Pack Label
Shelf Tag
Shipping Box Label
Test Tube

B115Z Durability

Storage Condition

Usage conditions: 5 to 35°C at 30 to 85% of relative humidity.

Storage conditions: Keep indoors avoiding high temperature, high humidity, direct sunlight.

Storage life: 24 months after production.

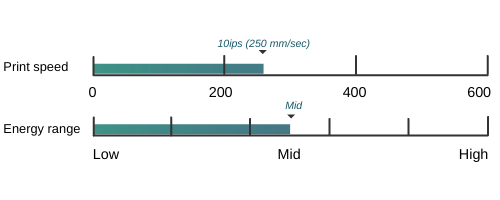

Sensitivity

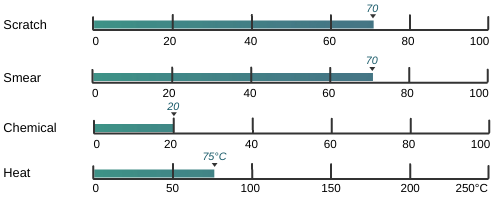

Resistance

Printed Image Durability

TESTS	RESULT
Smear + heat 100°C Smear with cardboard (weight 1kg - 50 back & forwards)	ANSI > B
Heat (220°C) Heat gradient 3.6kgF/cm²	No ink on fabric
Scratch 50 back and forwards with a rubbing tester	ANSI > B
Light Xenon lamp at 650 W/m²	ANSI A
Water 24 hours in water	ANSI A

Certificates

TSCA RoHS WEEE REACH (EC) 1935/2004

Related products

***The above data represents product averages, allowing for industry accepted variances. These products should be tested in the end-use conditions to ensure that they meet the requirements of the specific application. Specifications may change without notice.
