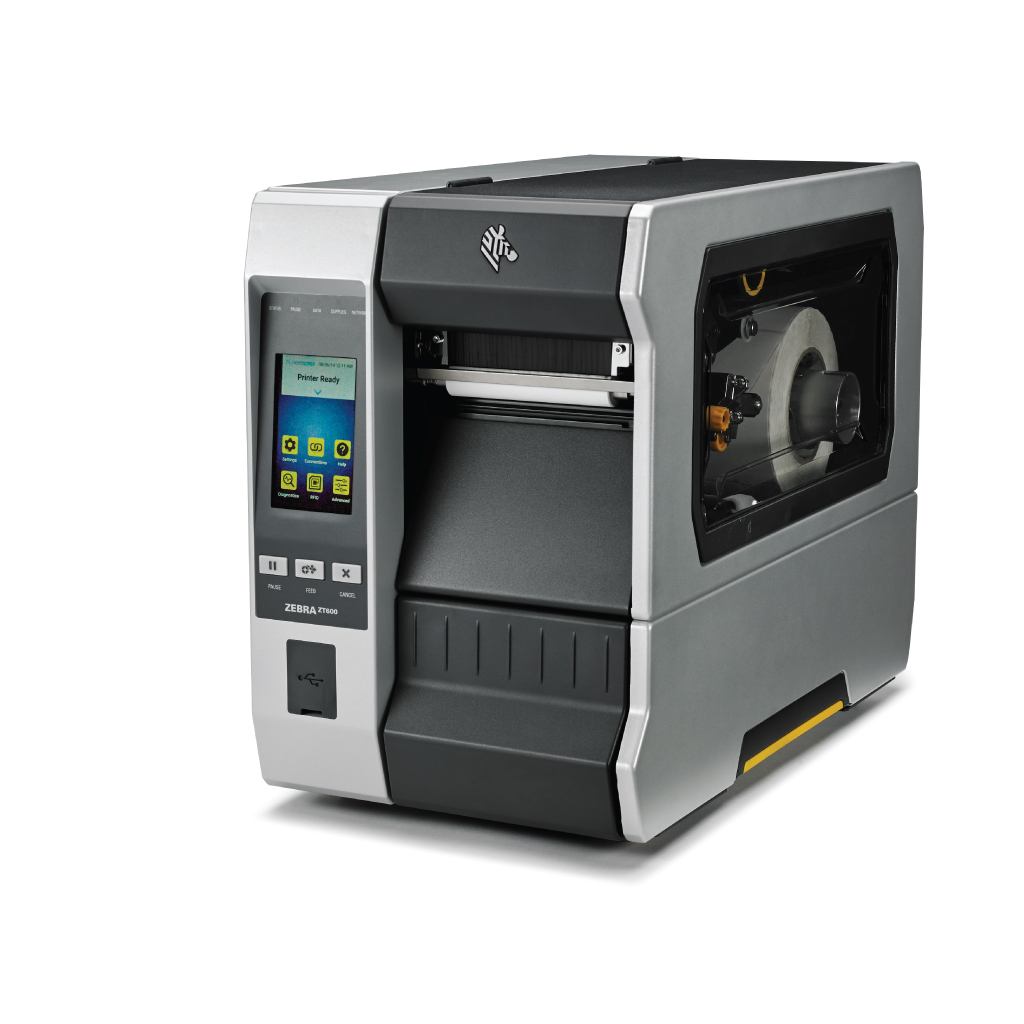

ZT600 Series Industrial Barcode Printer

  • Durable, suitable for industrial factories
  • Support printing volumes 10,000++ pieces per day
  • Large display screen to show the status of the machine
  • Barcode Printer, Label Printer, RFID Printer

  1. A Leap Forward in Industrial Thermal Printing
    Zebra’s industrial printers are well known for their durability, fast print speed, long life span and unparalleled reliability. The ZT610 and ZT620 build on that legacy, with the most advanced, comprehensive feature sets of any Zebra stationary printer series. To start, easily navigate printer settings and see status at a glance via the brightly lit, 4.3-inch full-color touch display. To keep your critical operations running smoothly across a broad range of applications, ZT600 Series printers provide.
  2. User-Friendly Setup, Use, Maintenance & Troubleshooting
    Intuitive Print DNA software, powered by Link-OS®, delivers unparalled intelligence and innovation for advanced connectivity, device management and privacy controls. User-friendly design features, including an optional color touch display, streamline everything from deployment to daily use to routine maintenance. Compatibility with other printing systems and technologies simplifies integration and management, while onboard sensors, diagnostics and help resources guide troubleshooting so users don’t have to call in support for every minor issue.
  3. Reliability in the Harshest Environments
    ZT600 Series printers are built to withstand the most demanding industrial conditions, virtually eliminating operational downtime due to printer failure. Plus, they meet your high-volume production needs, day in and day out, with superior print quality and speed across the widest range of applications.
  4. Micro-Consistent Printing for Top-Quality Micro Labels
    Featuring highly precise registration and print line adjustment, the ZT610 offers 600 dpi printing for labels as small as 3 mm high (length) for applications like circuit boards, chips and miniature components—all without wasting expensive media due to improper printing.

Download PDF brochure



Specifications

Physical Characteristics

Dimensions:
ZT610
19.88 in. L x 10.56 in. W x 15.58 in. H
505 mm L x 268.2 mm W x 395.68 mm H
ZT620
19.88 in. L x 13.44 in. W x 15.58 H
505 mm L x 341.45 mm W x 395.68 mm H
Weight:
ZT610: 50 lbs/22.7 kg
ZT620: 57.4 lbs/26 kg

Connectivity

Communication: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0
Connectivity
Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port
Media Handling
 Internally rewinds a full roll of printed labels on 3" core, or peels and rewinds liner
Cutter: Front-mount guillotine cutter and catch tray
Ink-side in ribbon supply spindle
RFID
Supports tags compatible with: UHF EPC Gen 2 V2, ISO/IEC 18000-63 and RAIN RFID protocols
Integrated RFID system is user-upgradable in the field and available on both 4" and 6" models
Adaptive Encoding Technology automatically selects optimum encode settings
Display
Brightly lit, 4.3-inch full-color touch display with clear navigation and immediate status visibility and support
Keyboard Display Unit
ZKDU™ keyboard display units for stand-alone printing applications

Printer Specifications

Printing system: Direct thermal or thermal transfer
Resolution:
203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
600 dpi/24 dots per mm (optional for ZT610 only)
Memory:
1 GB RAM memory
2 GB on-board linear Flash memory
Maximum Print Width:
ZT610: 4.09 in./104 mm
ZT620: 6.6 in./168 mm
Maximum Print Speed:
ZT610: 14 ips/356 mm per second
ZT620: 12 ips/305 mm per second

Media Characteristics

Maximum Media Width:
ZT610: 0.79 in./20 mm to 4.5 in./114 mm
ZT620: 2.0 in./51 mm to 7.1 in./180 mm
Media Roll Size:
8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core
Media Thickness:
0.0023 in./0.058 mm to 0.010 in./0.25 mm
