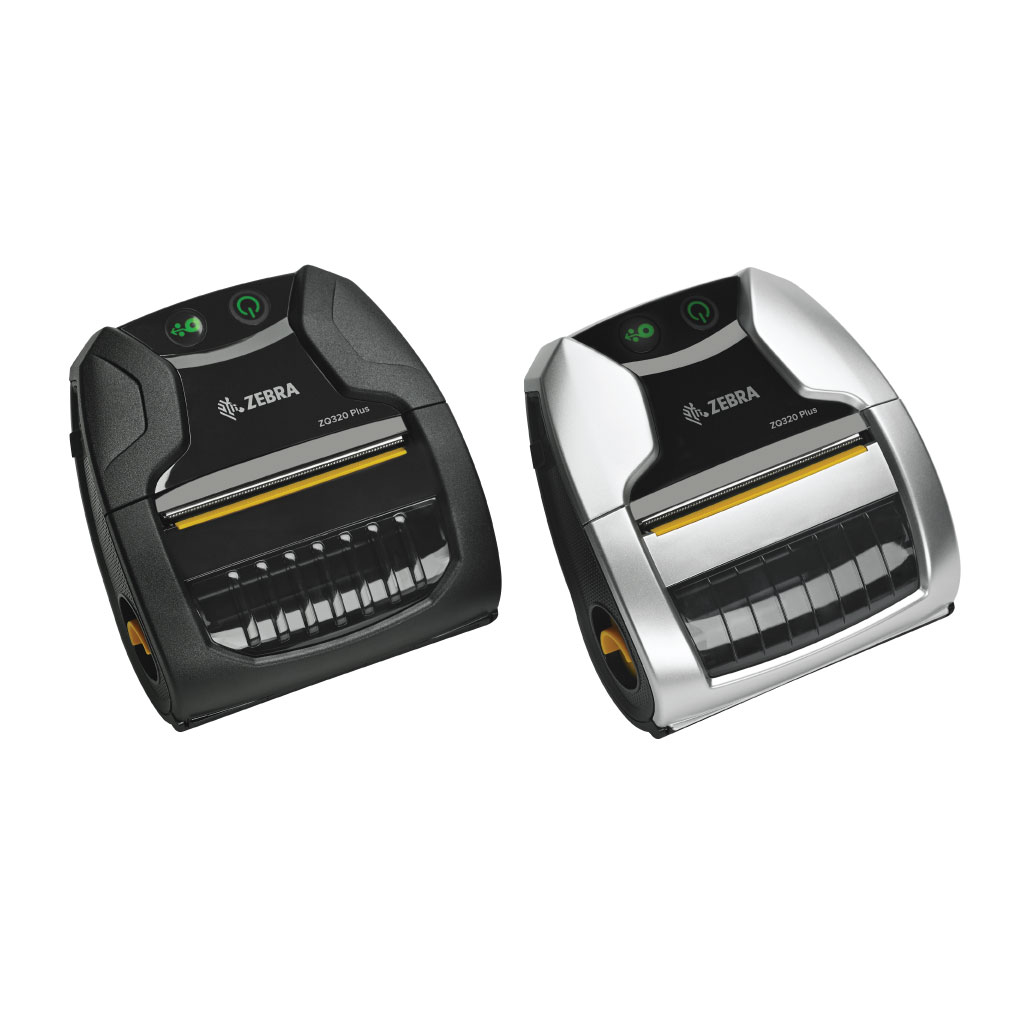

ZQ300 Plus Series Mobile Printer

Specifications

Physical Characteristics: Dimensions :
Direct Thermal:
8.69 in. L x 6.98 in. W x 5.93 in. H
220.8 mm L x 177.5 mm W x 150.7 mm H
Thermal Transfer Roll:
10.5 in. L x 8.0 in. W x 7.44 in. H
267 mm L x 202 mm W x 189 mm H
Thermal Transfer Cartridge:
10.0 in. L x 8.0 in. W x 7.0 in. H
254 mm L x 202 mm W x 177 mm H
Weight :
Direct Thermal: 2.98 lbs./1.35 kg
Thermal Transfer Roll: 4.52 lbs./2.05 kg
Thermal Transfer Cartridge: 5.0 lbs./2.3 kg
Connectivity: Connectivity: Bluetooth, USb, Type C™ connector
Printer Specifications: Printing system: Direct thermal
Resolution:
203 dpi/8 dots per mm
Memory:
128MB RAM, 256MB Flash (48 MB User Available)
Maximum Print Width:
ZQ310 Plus printer: 48 mm/1.89 in.
ZQ320 Plus printer: 72 mm/2.83 in.
Maximum Print Speed:
Up to 4 ips (100 mm/s)
Battery: Li-Ion 2280 mAh, 7.2V, Power Precision+
Cutter: Tear bar
Media Characteristics: Media Width:
ZQ310 Plus printer:
58 mm +0.75 mm/2.28 in. +0.02 in.; spacers available to support 50.8 mm +0.75 mm/2 in. +0.02 in.
ZQ320 Plus printer:
80 mm +0.75 mm/3.15 in. +0.02 in.; spacers available to support 76 mm +0.75 mm/3 in. +0.02 in.
Maximum Roll Outside Diameter:
40 mm/1.57 in.
Media Thickness:
0.05334 mm / 0.0021 in. to 0.16 mm/0.0063 in.
Media Types: Direct thermal: receipt paper, linerless labels
