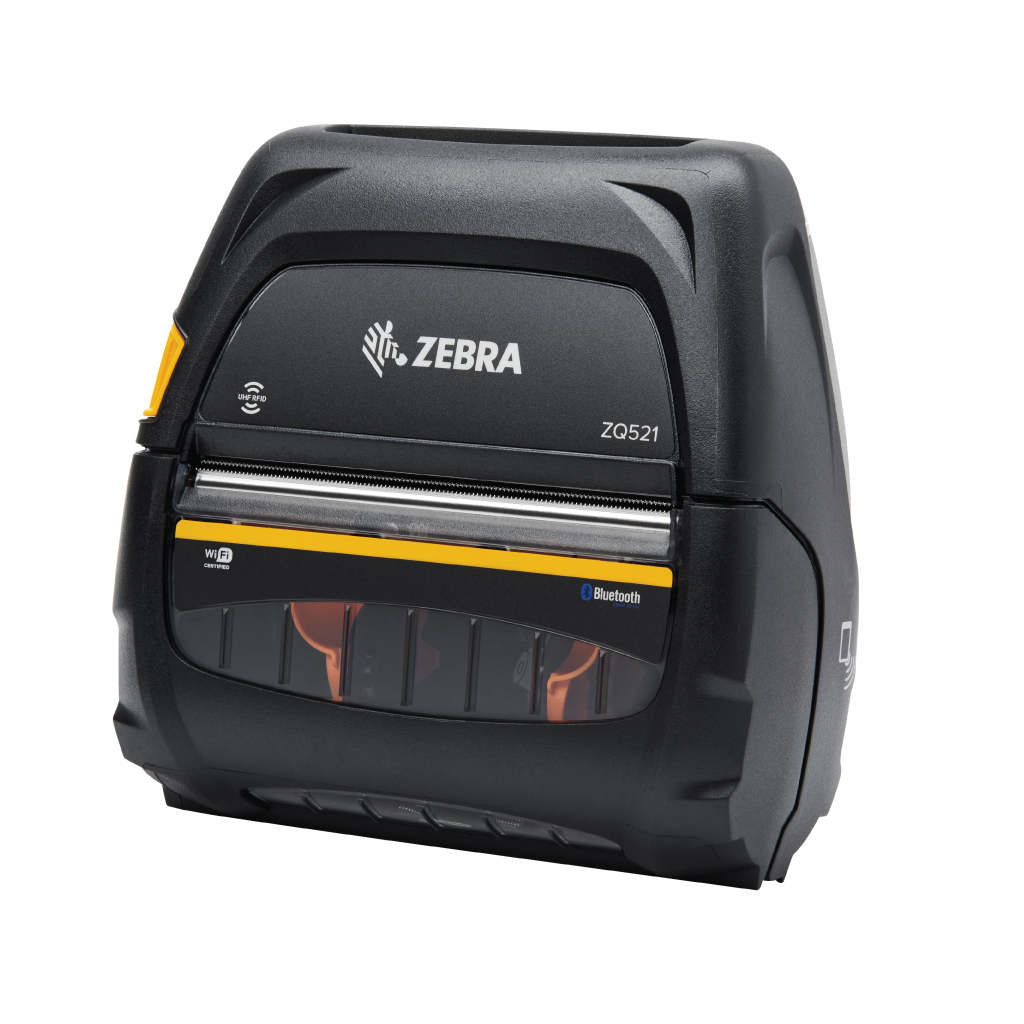

ZQ500 Series Mobile Printer

  • Extremely robust mobile printers for receipts and labels
  • For parcel and logistics, warehouse services label
  • Highly reliable no matter what the usage (IP54, with optional protective case, IP65)
  • Barcode Printer, Label Printer

  1. Rugged Design
    ZQ500 Series printers are engineered to endure serious abuse. They withstand the bumps, drops, accidents, liquids, dirt and environmental extremes that are common in mobile workplaces. Their patented military design meets third party-verified MIL-STD 810g military standards for shock, vibration and temperature exposure. An IP54-rating for resistance to dust and liquids. And the ZQ511 and ZQ521 are tumble tested per the IEC68-2-32 spec to handle 1300 tumbles from 3.3Ft. (1M).
  2. Intelligence and Security
    Zebra DNA for Printers suite of productivity, management, development and visibility tools. Configure, manage and maintain printers remotely anywhere around the globe. Oversee batteries in real time, automate processes, control security settings and much more. Gain visibility and manage your ZQ511 and ZQ521 Bluetooth printers inside and outside your four walls with the industry’s first Bluetooth Management. And safeguard your network with Zebra’s exclusive Print Secure.
  3. RFID or Linerless Capabilities
    Combine the convenience and flexibility of a mobile printer with the enhanced tracking capabilities of RFID. Print and encode Ultra High Frequency (UHF) RFID labels on-demand, anywhere. Automatically calibrate RFID media with Zebra’s exclusive adaptive encoding technology. Or, eliminate waste and improve your company’s green initiative with linerless printing. Spend less time disposing of waste and more time on the task at hand, improving your workforce productivity. Carry fewer rolls of media and change media rolls less frequently.

Download PDF brochure



Specifications

Physical Characteristics

Dimensions:
ZQ511:
5.9 in. L x 4.7 in. W x 2.4 in. H
150 mm L x 120 mm W x 62 mm
HZQ521:
6.2 in. L x 6.1 in. W x 2.6 in. H
158 mm L x 155 mm W x 67 mm H
Weight with Standard Battery
ZQ511: 1.39 lbs/0.63 kgs
ZQ521: 1.73 lbs/0.79 kgs

Connectivity

Connectivity: Bluetooth, USB

Printer Specifications

Printing system: Direct thermal
Resolution:
203 dpi/8 dots per mm
Memory:
128MB RAM, 256MB Flash (48 MB User Available)
Maximum Print Width:
ZQ511: 2.83 in./72mm
ZQ521: 4.09 in./104mm
Maximum Print Speed:
Up to 5 in./127 mm per second (with Draft Mode enabled)
Battery:
3250 mAh (nominal), removable, rechargeable PowerPrecision+ Li-Ion battery, with optional 6500 mAh extended battery

Media Characteristics

Media Width:
ZQ511: 2.83 in./72mm
ZQ521: 4.09 in./104mm
Maximum Media Roll Size:
ZQ511: 2.0 in./51 mm
ZQ521: 2.24 in./57 mm
Media Thickness:
0.0023 in./0.05842 mm for all media
Media Types:
Receipt, Gap/Black-mark Label, Tag, Linerless, RFID (Note: ZQ511R/ZQ521R require black mark RFID media and do not support gap sensing)
Note:
ZQ511R/ZQ521R require black mark RFID media and do not support gap sensing
