Pro 8310

Pro 8310 เป็นเครื่องพิมพ์ดิจิทัลขาวดำระดับโปรดักชันสำหรับการผลิตงานพิมพ์ในปริมาณสูง

Pro 8310 สามารถพิมพ์งานได้ที่ความเร็ว 111 ppm และมี GWNX controller มาเป็นมาตรฐาน โดยสามารถติดตั้งคอนโทรลเลอร์เสริม Fiery EB-35 เพื่อเพิ่มประสิทธิภาพการทำงานได้

Pro 8310 รองรับกระดาษขนาดใหญ่สุดถึง 13” x 19.2” และหนาสุดถึง 350 แกรม รวมถึงรองรับวัสดุพิมพ์ชนิดพิเศษได้หลากหลาย เช่น ซองจดหมาย หรือกระดาษ NCR

เครื่องยังมาพร้อมกับเทคโนโลยีและกลไกการทำงานที่พัฒนายิ่งขึ้นอีกมากมาย ซึ่งช่วยเพิ่มประสิทธิภาพให้มากขึ้น รองรับวัสดุพิมพ์ได้มากขึ้น อุปกรณ์เสริมสำหรับการเข้าเล่มที่หลากหลาย และการใช้งานที่ดียิ่งขึ้น

กลุ่มลูกค้าเป้าหมายของ Pro 8310 มุ่งเน้นไปที่การใช้งานในฝ่ายพิมพ์งานขององค์กร (CRD) และในโรงงานผลิต

LCT RT5130

Optional Large Capacity Tray accommodates paper sizes up to A4 and significantly increases the capacity of the device.

Configuration: Console type
Capacity: 5,000 sheets (1,100 sheets x 2 trays, 2,800 sheets x 1 tray)

Line speed:
Feeding
555 mm/s—Type A
736 mm/s—Type B
985 mm/s—Type C
Processing, Shifting
432 mm/s—Type A
500 mm/s—Type B
640 mm/s—Type C

Paper size: A4, B5, A5
Oversize paper: 305 x 230 mm, needs to be set in SP Mode
Paper weight: 52.3–216 g/m2 (Trays 4 and 5); 52.3–163 g/m2 (Tray 6)
Air assisted paper feed: Not available
Tray security lock: Supported with all trays
Note: ABUS lock T84MB (20 mm) is recommended.
Power source: From mainframe
Power consumption: 210 W
Dimensions (W x D x H): 540 x 730 x 1,000 mm
Weight: 106 kg or less

Notes:
Cannot be installed with LCT RT5110,Vacuum-Feed LCT RT5120,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,Multi-Bypass Tray BY5020
LCT RT5110

Optional Large Capacity Tray accommodates paper sizes up to 13" x 19.2" and significantly increases the capacity of the device.

Configuration: Console type
Capacity: 4,400 sheets
Paper size: A5–13" x 19.2"
Custom size: 100–330.2 x 139.7–487.7 mm
Paper weight : 52.3–256 g/m2 (Trays 4 and 6); 52.3–360 g/m2(Tray 5)
Note: Some media over 301 g/m2 can be supported but the vacuum-feed LCT RT5120 is recommended for media heavier than 301 g/m2.
Air-assisted paper feed: Supported with all trays
Active tray indicator LED: Supported
Power source: From mainframe
Dimensions (W x D x H): 865 x 730 x 1,000 mm
Weight: 185 kg or less

Notes:
Cannot be installed with LCT RT5130,Vacuum-Feed Banner Sheet Tray Type S9,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
Vacuum-Feed LCT RT5120

Optional Large Capacity Tray significantly increasing the capacity of the device. This option features a vacuum-feed mechanism for excellent paper feeding accuracy.

Capacity: 4,400 sheets (2 x 2,200 sheet trays); 2,200 sheets with Vacuum-Feed Banner Sheet Tray Type S9 attached
Paper size: A5–13" x 19.2"
Custom size: 100–330.2 mm x 139.7–487.7 mm
Paper weight: 52–470 g/m²
Note: Supported paper weight depends on mainframe.
Paper transfer method: Air pick
Active tray indicator LED: Supported
Dimensions (W x D x H) : 1,054 x 730 x 1,000 mm; 1,290 x 730 x 1,000 mm with Vacuum-Feed Banner Sheet Tray Type S9 attached
Weight: 220 kg  or less; 227 kg or less with Vacuum-Feed Banner Sheet Tray Type S9 attached
Power source: 220–240 V
Power consumption: 1,000 W or less

Notes:
Cannot be installed with LCT RT5130
Vacuum-Feed Banner Sheet Tray Type S9

Enables feeding of up to 700 mm banner sheet pages for a wider variety of applications. This option is attached to the upper tray of the Vacuum-Feed LCT RT5120.

Capacity: 730 sheets
Paper size: 210–330.2 mm x 420–700 mm
Paper weight: 52–300 g/m²
Note: Supported paper weight depends on mainframe.
Power source: From LCT RT5120
Dimensions (W x D x H): 1,290 x 730 x 1,000 mm—when attached to LCT RT5120; 1,290 x 730 x 1,302 mm—with cover open
Weight: 7 kg or less

Notes:
By choosing this option the Vacuum-Feed LCT RT5120 will be added to the configuration.
Cannot be installed with LCT RT5130,LCT RT5110
Multi-Bypass Tray BY5020

Feeds up to 500 sheets of uncoated paper stocks for expanded system capacity and document output types.

Capacity: 500 sheets
Paper size: A5–13" x 19.2"
Custom size: 100 x 330.2 x 139.7 x 487.7 mm
Paper weight: 52–216 g/m²
Power source: From mainframe
Paper volume sensors: In 4 steps, near end 0%, 50%, 100%
Dimensions (W x D x H): 690 x 561 x 210 mm
Weight: 20 kg or less

Notes:
One of the following must also be selected: Vacuum-Feed LCT RT5120 and Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9,LCT RT5110
Cannot be installed with LCT RT5130
Multi-Bypass Banner Sheet Tray Type S9

Extender for Multi-Bypass Tray BY5020 to accommodate oversize prints up to 700 mm in size and up to 216 g/m2 in weight.

Note: SR5000 Series Output Tray For Banner Sheet Type S6 or SR4000 Series Output Tray for Banner Sheet Type S6 is required for banner sheet output, as this option doesn’t include an output tray for finisher.

Capacity: 500 sheets
Paper size: A5–A3, 13” x 19.2” with LCT RT5110
Custom size: 100–330.2 x 139.7–700 mm
Note: Simplex printing up to 1,260 mm supported when sheets are fed individually.
Paper weight: 52.3–216 g/m²
Dimensions (W x D x H): 1,090 x 561 x 210 mm
Weight: 9.5 kg or less
Notes:
By choosing this option the Multi-Bypass Tray BY5020 will be added to the configuration.
Cannot be installed with LCT RT5130
Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
Required to configure the Multi-Bypass Tray BY5020 with the Vacuum-Feed LCT RT5120.
Notes:
By choosing this option the Vacuum-Feed LCT RT5120,Multi-Bypass Tray BY5020 will be added to the configuration.
Cannot be installed with LCT RT5130,LCT RT5110
A3/11"x17" Tray Unit TK5020

Converts the standard paper input tray from a tandem A4 tray to an A3 tray.

Capacity: 1,000 sheets
Paper size: A4, A3, B4
Paper weight : 52.3–216 g/m2
Dimensions (W x D x H): 490 x 530 x 175 mm
Weight: 11 kg

Decurl Unit DU5070

Reduces the natural paper curl that can occur, delivering sheets with optimal flatness. Ideal for applications that are frequently printed with high toner coverage on thin paper and paper with long grain.

Configuration: Optional internal module to be installed in the mainframe
Paper size: 100 x 139.7 mm–330.2 x 487.7 mm
Paper weight: 40–350 g/m2
Decurler functions:
Pressure adjustment
3 steps—from operation panel
Curl type
Back curl, face curl—from operation panel
Dimensions (W x D x H) : 71 x 509 x 181 mm
Weight: 5 kg or less
Power source: From mainframe
Power consumption: 30 W or less

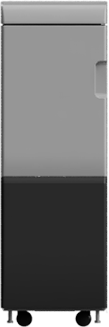

Buffer Pass Unit Type S11

Cools down printed paper to prevent toner adhesion or sticking before the paper is stacked or sent to the finishers. Recommended for printing on coated stocks, or with high toner coverage.

Paper size: Same as mainframe
Paper weight: Same as mainframe
Dimensions (W x D x H): 330 x 730 x 1,010 mm
Weight: 90 kg or less
Power source: 220–240 V, 50/60 Hz, 1.5 Amps
Power consumption: 200 W or less

Perfect Binder GB5010

A fully automated system that creates perfectly bound books up to 200 sheets. A cover inserter supports up to 300 g/m2 paper, and the trimming function creates 3 clean edges for the output of professionaly bound books.

Cutting directions: 3 edges, 1 edge, none
Booklet size: 201–297 x 139.7–216 mm
Booklet thickness: Less than 23 mm
Paper weight: 64–163 g/mfor body pages; 106–163 g/mup to 10 sheets as chapter pages; 90–300 g/mfor covers
Paper size: 257–320 x 182–228.6 mm for body pages; 257–330.2 x 364–487.7 mm for covers
Dimensions (W x D x H): 1,090 x 791 x 1,387 mm
Weight: 350 kg or less

Notes:
By choosing this option the Transit Pass Unit for Perfect Binder Type S1,Cover Interposer Tray for Perfect Binder Type S1 will be added to the configuration.
Cannot be installed with Ring Binder RB5030
Cover Interposer Tray CI5040

Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.

Capacity: 400 sheets (200 sheets x 2 trays)
Paper height: 22 mm
Paper size: A5–13" x 19.2"
Custom size: 139.7–330.2 mm x 139.7–487.7 mm
Available size: 139.7–1,260 mm (length), 100–330.2 mm (width)
Paper weight: 52.3–350 g/m2 with plain paper; 105.1—350 g/m2 with coated paper
Dimensions (W x D x H): 740 x 730 x 1,290 mm
Weight: 50 kg
Power source: From mainframe
Power consumption: 95 W, excluding peak consumption

Cover Interposer Tray Double-Feed Detection Kit Type S11

When attached to the cover interposer, detects double feeds from the interposer.

Dimensions (W x D x H): 126 x 317 x 56 mm
Weight: 0.4 kg

Notes:
By choosing this option the Cover Interposer Tray CI5040 will be added to the configuration.
Multi-Folding Unit FD5020

Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.

Folding types:
Single sheet mode
Z-fold, Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out, Double parallel/print inside, Double parallel/print outside, Gate fold/print inside, Gate fold/print outside
Multiple sheet mode (up to 3 sheets)
Half-fold/print inside, Half-fold/print outside, Letter fold-in/print inside, Letter fold-in/print outside, Letter fold-out
Note: Coated paper is also supported.

Paper size: A4—13" x 19.2"
Paper weight:
64–105 g/m2—single sheet mode
64–80 g/m2—multiple sheet mode

Power source: External, 220–240 V, 50–60 Hz
Power consumption: 240 W or less
Dimensions (W x D x H): 470 x 730 x 1,000 mm
Weight: 92 kg or less

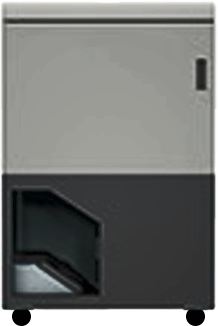

Ring Binder RB5030

Automates the creation of ring bound booklets, saving both time and costs. Jobs can run continually, and rings for up to 50 or 100 sheets are available.

Paper size in binding mode: A4 LEF
Paper weight in binding mode: 64–256 g/m2
Ring binding capacity: 2–50 sheets (50 sheets ring); 4–100 sheets (100 sheets ring)
Number of holes (A4): 23
Ring supply:
A4, black, 50 sheets
A4, black, 100 sheets
A4, white, 50 sheets
A4, white, 100 sheets
Cartridge capacity; 80 rings
Note: Ring supply consumables must be purchased and installed to use the Ring Binder RB5030.
Tab stock: Supported
Stack capacity:
9 sets, 100 sheets per set in binding mode
100 sheets, or 200 duplex pages in punching mode
Power source: External, 100–240 V, 50/60 Hz
Power consumption: 400 W or less
Dimensions (W x D x H): 660 x 700 x 1,010 mm
Weight: 120 kg or less

Notes:
Cannot be installed with Perfect Binder GB5010,Cover Interposer Tray for Perfect Binder Type S1,Transit Pass Unit for Perfect Binder Type S1

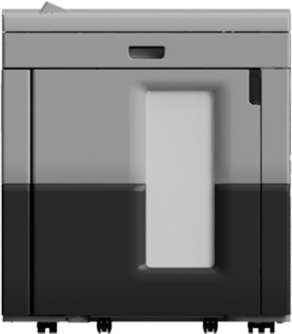

High Capacity Stacker SK5040

Allows to handle large volume of output and move it with a roll-away cart that is included as standard. Up to 2 stackers can be configured in one system. An additional roll-away cart is available.

Proof tray:
Stack capacity: 250 sheets
Paper size: A6–13" x 19.2"
Paper weight: 52–470 g/m2
Note: 487–700 mm banner sheet supported when finisher is not attached.

Shift tray:

Stack capacity: 5,000 sheets—A4–13" x 19.2"; 2,500 sheets—B5
Paper size: 139.7 x 139.7 mm–331 x 488 mm (13" x 19.2")
Paper weight: 52–470 g/m2
Note: Actual supported paper weight is dependent on the mainframe.

Output jogger: Standard
Roll-away cart: Includes 1 cart. Additional cart is optional.
Door lock: Optional; includes a bracket for the lock
Dimensions (W x D x H): 900 x 730 x 1,010 mm
Weight: Less than 120 kg, roll-away cart 15 kg
Power source: 220–240 V, 50–60 Hz, 0.8 Amps
Power consumption: Less than 120 W

Notes:
By choosing this option the Roll-Away Cart Type 5010 will be added to the configuration.
Roll-Away Cart Type 5010

An additonal roll-away cart for the High-Capacity Stacker SK5040.

Weight: 15 kg

Notes:
By choosing this option the High Capacity Stacker SK5040 will be added to the configuration.
Finisher SR5110

Provides 100-sheet stapling and optional hole punching.

Paper size:
Max. 330.2 x 487.7 mm (13" x 19.2"); min. 139.7 x 139.7 mm—without Z-fold
Banner sheet 330.2 x 700.0 mm
Max. 304 x 457 mm; min. 139.7 x 139.7 mm—with Z-fold

Paper weight:
40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)—without Z-fold
64–105 g/m2 —with Z-fold
Note: Supported paper weight is dependent on the mainframe.

Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: 64–80 g/m2 (without Z-fold); 64–105 g/m2 (with Z-fold)
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option
Weight: 135 kg
Power source: 220–240 V ±10%, 50/60 Hz
Power consumption: 150 W

Notes:
Cannot be installed with Booklet Finisher SR5120,Trimmer Unit TR5050
Booklet Finisher SR5120

Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Comes with dual shift trays for ‘non-stop delivery.’ Punch option is available.

Capacity: 3,500 sheets (dual shift tray)

Paper size:
Without Z-fold
Max. 330.2 x 487.7 mm (13" x 19.2"), min. 139.7 x 139.7 mm
Banner sheet 330.2 x 700.0 mm
With Z-fold
Max. 304 x 457 mm, min. 139.7 x 139.7 mm

Paper weight:
Without Z-fold
40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)
With Z-fold
64–105 g/m2
Note: Supported paper weight is dependent on the mainframe.

Staple capacity: 100 sheets (A4); 50 sheets (A3)
Staple positions: top, bottom, 2 staple, top slant
Staple paper weight: without Z-fold: 64–80 g/m2; with Z-fold: 64–105 g/m2
Saddle stitch staple: 30 sheets (120-page booklet) with 80 g/m2 paper
Optional punch unit PU5030 available
Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option
Weight: 160 kg
Power consumption: 150 W

Notes:
Cannot be installed with Finisher SR5110
Trimmer Unit TR5050

Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5120 is required in order to attach this option.

Stacker full detection: Supported
Limitless stack: Supported
Note: This setting is not user configurable; it needs to be configured by a Ricoh service engineer.
Power source: External, universal power supply, 100–240 V, 50 Hz
Power consumption: 75 W—average; 250 W—maximum
Dimensions (W x D x H): 1,115 x 591 x 555 mm
Weight: 75 kg

Notes:
By choosing this option the Booklet Finisher SR5120 will be added to the configuration.
Cannot be installed with Finisher SR5110
SR5000 Series Output Tray for Banner Sheet Type S6

Required for banner sheet output for selected Ricoh finishers and booklet finishers.

Capacity: 200 sheets (0.11mm/sheet)
Paper size: width 210–330.2 mm, length 420–700 mm
Paper weight: 52.3–300.0 g/m2

Notes:
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 NA

Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages.

Number of punch: 2 or 3 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m2
Performance: Same as engine speed

Notes:
Cannot be installed with Punch Unit PU5030 EU ,Punch Unit PU5030 SC
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 EU

Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages.

Number of punch: 2 or 4 holes interchangeable
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m2
Performance: Same as engine speed

Notes:
Cannot be installed with Punch Unit PU5030 NA,Punch Unit PU5030 SC
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 SC

Installed in a finisher of a printing device to enable automatic 4-hole punching of pages.

Number of punch: 4 holes
Punch registration: Supported; resist roller and side registration sensor
Paper weight: 52–300 g/m2
Performance: Same as engine speed

Notes:
Cannot be installed with Punch Unit PU5030 NA,Punch Unit PU5030 EU
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Printer Controller EB-35

An external printer controller that provides fast processing speed, outstanding image quality, and time-saving workflow.

PostScript 3 Unit Type S11
Genuine Adobe PostScript 3 printer driver. Recommended for printing more complex colour and PDF files.
IPDS Unit Type S11
Genuine Intelligent Printer Data Stream unit for use in AS/400 environments. It provides more accurate interpretation of IPDS data, which means less errors and faster file processing than emulations.
XPS Direct Print Option Type S11
Allows users to print XPS format directly from the printer, without using an XPS-based driver.
OCR Unit Type M13
Scans and creates editable text files from hardcopy originals via Optical Character Recognition. Enables the creation of searchable PDF documents at the MFP.
Unicode Font Package for SAP 1 Licence
Supports multilingual data without restrictions.
Unicode Font Package for SAP 10 Licence
Supports multilingual data without restrictions.
IEEE 802.11a/g/n Interface Unit Type M19
Enables WiFi connectivity and wireless printing.
Media Identification Unit Type S3
Used for searching and registering media. Displays media options with similar printing setting characteristics that are already registered in the paper catalog and the customer paper list.
VM Card Type P18
Java Virtual Machine that supports the installation of embedded software applications.

Standard inclusions

Current configuration

Pro 8310
1141 mm x 900 mm x 1750 mm (W x D x H)
413 kg
Selected Options:

    {"configuratorid":"97d4bee0-15db-4ac3-a461-aaef33426acc","productid":"0036baa8-8808-4a8d-9480-cf0f107c36de","edpcode":"409244","productdisplayname":"Pro 8310","width":1141.0,"height":1750.0,"depth":900.0,"weight":413.0,"mainframe_imageurl":"/-/media/all-regional/images/product-images/commercial-and-industrial-printing-solutions/cut-sheet/pro-8300s-pro-8310-and-pro-8320-series/configurator/mainframe.png?dmc=0&hash=F13C73B84686A5D5A682332D891C16C2D97BEAB2","configurator_hash":"cdeec040-3e1c-413b-9118-57ee163148d9","options":{"409257":{"edpcode":"409257","displayname":"LCT RT5130","extras":[],"width":540.0,"height":1000.0,"depth":730.0,"weight":106.0,"show_image":true,"hide_until_required":false},"409117":{"edpcode":"409117","displayname":"LCT RT5110","extras":[],"width":865.0,"height":1000.0,"depth":730.0,"weight":185.0,"show_image":true,"hide_until_required":false},"409083":{"edpcode":"409083","displayname":"Vacuum-Feed LCT RT5120","extras":[1,2],"width":1054.0,"height":1000.0,"depth":730.0,"weight":220.0,"show_image":true,"hide_until_required":false},"404652":{"edpcode":"404652","displayname":"Bridge Unit BU5010","extras":[],"width":330.0,"height":1000.0,"depth":730.0,"weight":40.0,"show_image":true,"hide_until_required":true},"409095":{"edpcode":"409095","displayname":"Vacuum-Feed Banner Sheet Tray Type S9","extras":[],"width":236.0,"height":0.0,"depth":0.0,"weight":7.0,"show_image":false,"hide_until_required":false},"409090":{"edpcode":"409090","displayname":"Multi-Bypass Tray BY5020","extras":[],"width":690.0,"height":210.0,"depth":561.0,"weight":20.0,"show_image":true,"hide_until_required":false},"409099":{"edpcode":"409099","displayname":"Multi-Bypass Banner Sheet Tray Type S9","extras":[],"width":1090.0,"height":210.0,"depth":561.0,"weight":9.5,"show_image":false,"hide_until_required":false},"409096":{"edpcode":"409096","displayname":"Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409338":{"edpcode":"409338","displayname":"A3/11\"x17\" Tray Unit TK5020","extras":[],"width":490.0,"height":175.0,"depth":530.0,"weight":11.0,"show_image":false,"hide_until_required":false},"409337":{"edpcode":"409337","displayname":"Decurl Unit DU5070","extras":[],"width":71.0,"height":181.0,"depth":509.0,"weight":5.0,"show_image":false,"hide_until_required":false},"409263":{"edpcode":"409263","displayname":"Buffer Pass Unit Type S11","extras":[],"width":330.0,"height":1010.0,"depth":730.0,"weight":90.0,"show_image":true,"hide_until_required":false},"404543":{"edpcode":"404543","displayname":"Perfect Binder GB5010","extras":[],"width":1090.0,"height":1387.0,"depth":791.0,"weight":350.0,"show_image":true,"hide_until_required":false},"404544":{"edpcode":"404544","displayname":"Transit Pass Unit for Perfect Binder Type S1","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":true},"404545":{"edpcode":"404545","displayname":"Cover Interposer Tray for Perfect Binder Type S1","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":true},"409258":{"edpcode":"409258","displayname":"Cover Interposer Tray CI5040","extras":[],"width":740.0,"height":1290.0,"depth":730.0,"weight":50.0,"show_image":true,"hide_until_required":false},"409259":{"edpcode":"409259","displayname":"Cover Interposer Tray Double-Feed Detection Kit Type S11","extras":[],"width":126.0,"height":56.0,"depth":317.0,"weight":0.4,"show_image":false,"hide_until_required":false},"404541":{"edpcode":"404541","displayname":"Multi-Folding Unit FD5020","extras":[],"width":470.0,"height":1000.0,"depth":730.0,"weight":92.0,"show_image":true,"hide_until_required":false},"409261":{"edpcode":"409261","displayname":"Ring Binder RB5030","extras":[],"width":660.0,"height":1010.0,"depth":700.0,"weight":120.0,"show_image":true,"hide_until_required":false},"409094":{"edpcode":"409094","displayname":"High Capacity Stacker SK5040","extras":[1,2],"width":900.0,"height":1010.0,"depth":730.0,"weight":120.0,"show_image":true,"hide_until_required":false},"404218":{"edpcode":"404218","displayname":"Roll-Away Cart Type 5010","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409251":{"edpcode":"409251","displayname":"Finisher SR5110","extras":[],"width":1113.0,"height":1490.0,"depth":730.0,"weight":135.0,"show_image":true,"hide_until_required":false},"409252":{"edpcode":"409252","displayname":"Booklet Finisher SR5120","extras":[],"width":1113.0,"height":1490.0,"depth":730.0,"weight":160.0,"show_image":true,"hide_until_required":false},"409255":{"edpcode":"409255","displayname":"Trimmer Unit TR5050","extras":[],"width":1115.0,"height":555.0,"depth":591.0,"weight":75.0,"show_image":true,"hide_until_required":false},"404877":{"edpcode":"404877","displayname":"SR5000 Series Output Tray for Banner Sheet Type S6","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409268":{"edpcode":"409268","displayname":"Punch Unit PU5030 NA","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409269":{"edpcode":"409269","displayname":"Punch Unit PU5030 EU ","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409270":{"edpcode":"409270","displayname":"Punch Unit PU5030 SC ","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409264":{"edpcode":"409264","displayname":"Printer Controller EB-35","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409328":{"edpcode":"409328","displayname":"PostScript 3 Unit Type S11","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409334":{"edpcode":"409334","displayname":"IPDS Unit Type S11","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"409342":{"edpcode":"409342","displayname":"XPS Direct Print Option Type S11","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417430":{"edpcode":"417430","displayname":"OCR Unit Type M13","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"413009":{"edpcode":"413009","displayname":"Unicode Font Package for SAP 1 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"413010":{"edpcode":"413010","displayname":"Unicode Font Package for SAP 10 Licence","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"417493":{"edpcode":"417493","displayname":"IEEE 802.11a/g/n Interface Unit Type M19","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"404882":{"edpcode":"404882","displayname":"Media Identification Unit Type S3","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false},"418067":{"edpcode":"418067","displayname":"VM Card Type P18","extras":[],"width":0.0,"height":0.0,"depth":0.0,"weight":0.0,"show_image":false,"hide_until_required":false}},"rules":[{"condition":{"condition_name":"TrueCondition","trigger_options":["409257"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409117","409083","409095","409099","409096","409090"],"should_validate_after_excute":false,"excludes":["409117","409083","409095","409099","409096","409090"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409117"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409257","409095","409096"],"should_validate_after_excute":false,"excludes":["409257","409095","409096"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409083"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409257"],"should_validate_after_excute":false,"excludes":["409257"]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["409083"],"compare_quantity":1,"comparer":"GreaterThan"},"actions":[{"action_name":"BridgeOptionAction","affect_to_options":["404652"],"should_validate_after_excute":false,"bridge_option":"404652","base_option":"409083"}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409095"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409083"],"should_validate_after_excute":false,"requires":["409083"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409257","409117"],"should_validate_after_excute":false,"excludes":["409257","409117"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409099"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409090"],"should_validate_after_excute":false,"requires":["409090"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409257"],"should_validate_after_excute":false,"excludes":["409257"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409096"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409083","409090"],"should_validate_after_excute":false,"requires":["409083","409090"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409257","409117"],"should_validate_after_excute":false,"excludes":["409257","409117"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404543"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["404544","404545"],"should_validate_after_excute":false,"requires":["404544","404545"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409261"],"should_validate_after_excute":false,"excludes":["409261"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409259"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409258"],"should_validate_after_excute":false,"requires":["409258"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409261"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404543","404545","404544"],"should_validate_after_excute":false,"excludes":["404543","404545","404544"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409094"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["404218"],"should_validate_after_excute":false,"requires":["404218"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404218"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409094"],"should_validate_after_excute":false,"requires":["409094"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409251"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409252","409255"],"should_validate_after_excute":false,"excludes":["409252","409255"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409252"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409251"],"should_validate_after_excute":false,"excludes":["409251"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409255"]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409252"],"should_validate_after_excute":false,"requires":["409252"]},{"action_name":"ExcludeOptionAction","affect_to_options":["409251"],"should_validate_after_excute":false,"excludes":["409251"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["404877"]},"actions":[{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409268"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409269","409270"],"should_validate_after_excute":false,"excludes":["409269","409270"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409269"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409268","409270"],"should_validate_after_excute":false,"excludes":["409268","409270"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409270"]},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["409268","409269"],"should_validate_after_excute":false,"excludes":["409268","409269"]},{"action_name":"RequireOneAction","affect_to_options":["409251","409252"],"should_validate_after_excute":true,"require_ones":["409251","409252"]}]},{"condition":{"condition_name":"LogicalCondition","trigger_options":["409090","409083"],"logical_operator":"And","sub_conditions":[{"condition_name":"LogicalCondition","trigger_options":["409090","409083"],"logical_operator":"And","sub_conditions":[{"condition_name":"QuantityCondition","trigger_options":["409090"],"compare_quantity":1,"comparer":"GreaterThanOrEqual"},{"condition_name":"QuantityCondition","trigger_options":["409083"],"compare_quantity":1,"comparer":"GreaterThanOrEqual"}]}]},"actions":[{"action_name":"RequireOptionAction","affect_to_options":["409096"],"should_validate_after_excute":false,"requires":["409096"]}]},{"condition":{"condition_name":"TrueCondition","trigger_options":["409090"]},"actions":[{"action_name":"RequireOneExtendAction","affect_to_options":["409083","409096","409117"],"should_validate_after_excute":true,"must_select_one_options":[],"or_must_select_options":[["409083","409096"],["409117"]]},{"action_name":"ExcludeOptionAction","affect_to_options":["409257"],"should_validate_after_excute":false,"excludes":["409257"]}]},{"condition":{"condition_name":"QuantityCondition","trigger_options":["409094"],"compare_quantity":1,"comparer":"GreaterThan"},"actions":[{"action_name":"ExcludeOptionAction","affect_to_options":["404541","404543","409261","404544","404545"],"should_validate_after_excute":false,"excludes":["404541","404543","409261","404544","404545"]}]}],"affect_group":[["409257","409117","409083","409095","409099","409096","404652","409090"],["409338"],["409337"],["409263"],["404543","404544","404545","409261","404541","409094","404218"],["409258","409259"],["409251","409252","409255","404877","409268","409269","409270"],["409264"],["409328"],["409334"],["409342"],["417430"],["413009"],["413010"],["417493"],["404882"],["418067"]],"preselect_configs":{},"min_config":{"must_select_at_least_one_option":false,"requires":[],"requireones":[]}}
