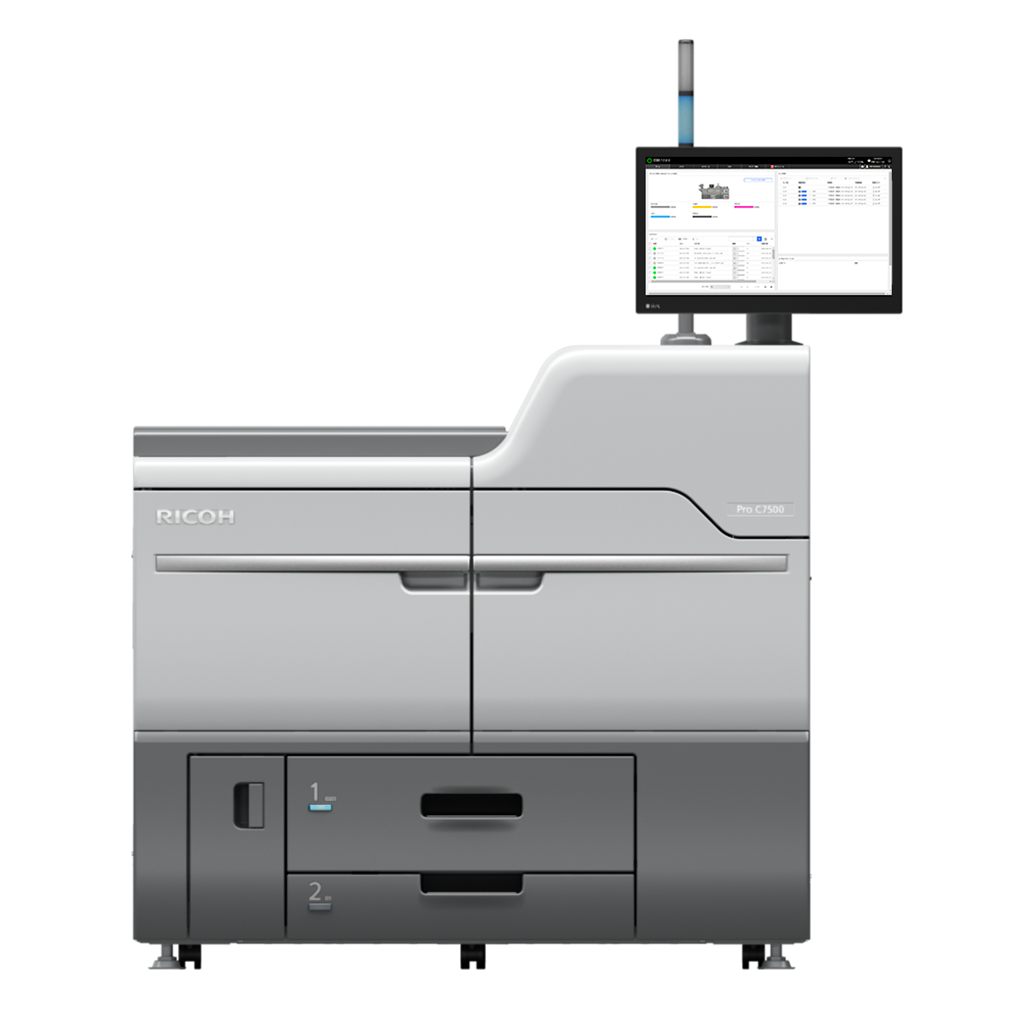

The Pro C7500 is a medium volume digital colour production printer.
It comes with a base print speed of 85 ppm that can be upgraded to 95 ppm by purchasing an optional productivity upgrade unit.
Additionally, its standard 4-station toner configuration can be upgraded to include a 5th station for special colour printing. A choice of clear, white, neon yellow, neon pink, invisible red, silver, or gold toner is available for the 5-station configuration.
The Pro C7500 comes with the RICOH GC OS controller that is specially designed for commercial printing environments and can be utilised with the Color Controller N-50A or Color Controller N-70A mandatory options.
An EFI 5th Station Hardware Upgrade Kit is required to activate the special colour features on these optional controllers if customers choose the 5-station configuration.
Other notable features are a larger 21.5” operation panel, 40–470 g/m2 paper handling, up to 960 mm continuous duplex banner sheet printing, and support for new options such as an improved vacuum-feed LCT and multi-folding unit.
A3/11"x17" Tray Unit TK5010
Converts the standard paper input tray from a tandem A4 tray to an A3 tray.
Capacity: 1,000 sheets Paper size: B4, A3, A4 SEF Paper weight: 52–216 g/m2 Dimensions (W x D x H): 495 x 530 x 175 mm Weight: 10 kg
Vacuum-Feed LCIT RT5150
Optional Large Capacity Tray significantly increasing the capacity of the device. This option features a vacuum-feed mechanism for excellent paper feeding accuracy. Note: Up to three Vacuum-Feed LCIT RT5150 units can be configured. A Bridge Unit BU5010 is required between each unit when more than one Vacuum-Feed LCIT RT5150 is connected.
Capacity: 4,400 sheets—0.11 mm paper thickness; 4,840 sheets—0.1 mm paper thickness Paper size: A5–13" x 19.2" Custom size: 100–330.2 mm x 139.7–487.7 mm Paper weight: 40–470 g/m² Note: Only for Trays 3 and 4. Weight above 400 g/m2 not supported in Trays 5, 6, 7, and 8 since the Bridge Unit doesn’t support over 400 g/m2. Paper transfer method: Air pickup Dimensions (W x D x H) : 1,054 x 730 x 1,000 mm; 1,290 x 730 x 1,000 mm—with Vacuum-Feed Banner Sheet Tray Type S9 attached; 1,519 x 730 x 1,000 mm—with Extension Vacuum-Feed Banner Sheet Tray Type S14 attached Weight: 230 kg Power source: 220–240 V Power consumption: 1,000 W
Bridge Unit BU5010
Need to be attached between LCTs when more than 1 Vacuum-Feed LCT RT5120 units are configured to the system.
Paper size: A5–13" x 19.2" Paper weight: 52–400 g/m2 Note: Paper weight support depends on the mainframe. Dimensions (W x D x H): 330 x 730 x 1,000 mm Weight: 40 kg or less
Vacuum-Feed Banner Sheet Tray Type S9
Enables feeding of up to 700 mm banner sheet pages for a wider variety of applications. This option is attached to the upper tray of the Vacuum-Feed LCIT RT5150.
Capacity: 730 sheets Paper size: 210–330.2 mm x 420–700 mm Paper weight: 52–300 g/m² Note: Supported paper weight depends on mainframe. Power source: From LCT Dimensions (W x D x H): 1,290 x 730 x 1,000 mm—when attached to LCT; 1,290 x 730 x 1,302 mm—with cover open Weight: 7 kg or less
Notes:
By choosing this option the Vacuum-Feed LCIT RT5150 will be added to the configuration.
Multi-Bypass Tray BY5020
Feeds up to 500 sheets of uncoated paper stocks for expanded system capacity and document output types.
Capacity: 500 sheets Paper size: A5–13" x 19.2" Custom size: 100 x 330.2 x 139.7 x 487.7 mm Paper weight: 52–216 g/m² Power source: From mainframe Paper volume sensors: In 4 steps, near end 0%, 50%, 100% Dimensions (W x D x H): 690 x 561 x 210 mm Weight: 20 kg or less
Notes:
By choosing this option the Vacuum-Feed LCIT RT5150,Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9 will be added to the configuration.
Multi-Bypass Attachment Kit for Vacuum-Feed LCT Type S9
Required to configure the Multi-Bypass Tray BY5020 with the Vacuum-Feed LCIT RT5150.
Notes:
By choosing this option the Multi-Bypass Tray BY5020,Vacuum-Feed LCIT RT5150 will be added to the configuration.
One of the following must also be selected: Vacuum-Feed LCIT RT5150
Multi-Bypass Banner Sheet Tray Type S9
Extender for Multi-Bypass Tray BY5020 to accommodate oversize prints up to 700 mm in size and up to 216 g/m2 in weight.
Note: SR5000 Series Output Tray For Banner Sheet Type S6 is required for banner sheet output, as this option doesn’t include an output tray for finisher.
Capacity: 500 sheets Paper size: A5–A3, 13” x 19.2” Custom size: 100–330.2 x 139.7–700 mm Note: Simplex printing up to 1,260 mm supported when sheets are fed individually. Paper weight: 52.3–216 g/m² Dimensions (W x D x H): 1,090 x 561 x 210 mm Weight: 9.5 kg or less
Notes:
By choosing this option the Multi-Bypass Tray BY5020,Vacuum-Feed LCIT RT5150 will be added to the configuration.
Extension Vacuum Feed Banner Sheet Tray Type S14
Enables feeding of up to 960 mm banner sheet pages for a wider variety of applications. This option is attached to the Vacuum-Feed LCIT RT5150.
Capacity: 500 sheets—0.1 mm paper thickness Paper size: 210–330.2 mm x 420–960 mm Paper weight: 52.3 g/m2–470 g/m2—420–487.7 mm; 52.3 g/m2–400 g/m2—487.8–700 mm; 63.1 g/m2–310 g/m2—700.1–960 mm; 63.1–300 g/m2—420.0–960.0 mm Note: Paper weight support dependent on mainframe.
Dimensions (W x D x H): 1,519 x 730 x 1,000 mm—when attached to Vacuum-Feed LCIT RT5150
Weight: 23 kg or less
Notes:
By choosing this option the Vacuum-Feed LCIT RT5150 will be added to the configuration.

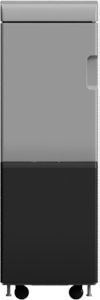

Buffer Pass Unit Type S9
Cools down printed paper to prevent toner adhesion or sticking before the paper is stacked or sent to the finishers. Recommended for printing on coated stocks, or with high toner coverage.
Paper weight: 40–470 g/m² Note: Paper weight support dependent on mainframe. Power source: 220–240 V, 50–60 Hz, 1.5 A Power consumption: Less than 200 W Dimensions (W x D x H): 330 x 730 x 1,010 mm Weight: Less than 90 kg
Cover Interposer Tray CI5040
Allows pre-printed covers and inserts to be easily fed into the finishing workflow from two sources. Eliminates the need for time-consuming offline manual insertion and reduces the wear and tear on originals.
Capacity: 400 sheets (200 sheets x 2 trays) Paper height: 22 mm Paper size: A5–13" x 19.2" Custom size: 139.7–330.2 mm x 139.7–487.7 mm Available size: 139.7–1,260 mm (length), 100–330.2 mm (width) Paper weight: 52.3–350 g/m2 with plain paper; 105.1—350 g/m2 with coated paper Dimensions (W x D x H): 740 x 730 x 1,350 mm; width for connecting part is 330 mm Weight: 60 kg Power source: From mainframe Power consumption: 110 W, excluding peak consumption
Notes:
One of the following must also be selected: High Capacity Stacker SK5040,Finisher SR5110,Booklet Finisher SR5120
Cover Interposer Tray Double-Feed Detection Kit Type S11
When attached to the cover interposer, detects double feeds from the interposer.
Dimensions (W x D x H): 126 x 317 x 56 mm Weight: 0.4 kg
Notes:
By choosing this option the Cover Interposer Tray CI5040 will be added to the configuration.
Multi-Folding Unit FD5030
Provides automatic inline document folding with the ability to deliver folded output in several different patterns. Ideal for finished documents such as newsletters, brochures, menus, and marketing materials.
Folding types: Single sheet mode Half-fold, Z-fold, Letter fold-in, Letter fold out Multiple sheet mode (up to 3 sheets) Letter fold-in, Letter fold out
Paper size: A4—13" x 19.2" Paper weight: 64–150 g/m2—single sheet mode 64–80 g/m2—multiple sheet mode
Power source: 220–240 V Power consumption: 60 W or less Dimensions (W x D x H): 209 x 730 x 1,000 mm Weight: 45 kg or less
High Capacity Stacker SK5040
Allows to handle large volume of output and move it with a roll-away cart that is included as standard. Up to 2 stackers can be configured in one system. An additional roll-away cart is available.
Proof tray: Stack capacity: 250 sheets Paper size: A6–13" x 19.2" Paper weight:40–470 g/m2 Note: 487–1,260 mm banner sheet supported when finisher is not attached. Actual supported paper weight is dependent on the mainframe. Shift tray: Stack capacity: 5,000 sheets—A4–13" x 19.2"; 2,500 sheets—B5 Paper size: 139.7 x 139.7 mm–331 x 488 mm (13" x 19.2") Paper weight: 40–470 g/m2 Note: Actual supported paper weight is dependent on the mainframe.
Output jogger: Standard Roll-away cart: Includes 1 cart. Additional cart is optional. Door lock: Optional; includes a bracket for the lock Dimensions (W x D x H): 900 x 730 x 1,010 mm Weight: 131 kg or less: 135 kg or less with roll-away cart Power source: 220–240 V, 50–60 Hz, 0.8 Amps Power consumption: Less than 120 W
Notes:
By choosing this option the Buffer Pass Unit Type S9 will be added to the configuration.
Roll-Away Cart Type 5010
An additonal roll-away cart for the High-Capacity Stacker SK5040.
Weight: 15 kg
Notes:
By choosing this option the High Capacity Stacker SK5040 will be added to the configuration.
Finisher SR5110
Provides 100-sheet stapling and optional hole punching.
Paper size: Max. 330.2 x 487.7 mm (13" x 19.2"); min. 139.7 x 139.7 mm—without Z-fold 330.2 x 1,260 mm—with banner sheet output tray Max. 304 x 457 mm; min. 139.7 x 139.7 mm—with Z-fold
Paper weight: 40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray)—without Z-fold 64–105 g/m2 —with Z-fold Note: Supported paper weight is dependent on the mainframe.
Staple capacity: 100 sheets (A4); 50 sheets (A3) Staple positions: top, bottom, 2 staple, top slant Staple paper weight: 64–80 g/m2 (without Z-fold); 64–105 g/m2 (with Z-fold) Optional punch unit PU5030 available Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray) Weight: 135 kg Power source: 220–240 V ±10%, 50/60 Hz Power consumption: 150 W
Notes:
Cannot be installed with Booklet Finisher SR5120,Trimmer Unit TR5050
Booklet Finisher SR5120
Creates flat-fold, saddle-stitched booklets, and folded unstapled booklets with a professional appearance and no manual intervention. Comes with dual shift trays for ‘non-stop delivery.’ Punch option is available.
Capacity: 3,500 sheets (dual shift tray)
Paper size: Without Z-fold Max. 330.2 x 487.7 mm (13" x 19.2"), min. 139.7 x 139.7 mm 330.2 x 1,260 mm—with banner sheet output tray With Z-fold Max. 304 x 457 mm, min. 139.7 x 139.7 mm
Paper weight: Without Z-fold 40–350 g/m2 (upper tray), 40–470 g/m2 (lower tray) With Z-fold 64–105 g/m2 Note: Supported paper weight is dependent on the mainframe.
Staple capacity: 100 sheets (A4); 50 sheets (A3) Staple positions: top, bottom, 2 staple, top slant Staple paper weight: without Z-fold: 64–80 g/m2; with Z-fold: 64–105 g/m2 Saddle stitch staple: 30 sheets (120-page booklet) with 80 g/m2 paper Optional punch unit PU5030 available Dimensions (W x D x H): 1,113 x 730 x 1,490 mm ; 1,334 x 730 x 1,622 mm with banner sheet option Type S6; 1,876 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the upper tray); 1,926 x 730 x 1,617 mm—with banner sheet option Type S14 (installed on the lower tray) Weight: 160 kg Power consumption: 150 W
Notes:
Cannot be installed with Finisher SR5110
Trimmer Unit TR5050
Cuts the front edge of the book block after the book block is saddle stitched. Booklet Finisher SR5120 is required in order to attach this option.
Stacker full detection: Supported Limitless stack: Supported Note: This setting is not user configurable; it needs to be configured by a Ricoh service engineer. Power source: External, universal power supply, 100–240 V, 50 Hz Power consumption: 75 W—average; 250 W—maximum Dimensions (W x D x H): 1,115 x 591 x 555 mm Weight: 75 kg
Notes:
By choosing this option the Booklet Finisher SR5120 will be added to the configuration.
Cannot be installed with Finisher SR5110,RPIP Interface Box Type S3
SR5000 Series Output Tray for Banner Sheet Type S6
Required for banner sheet output for selected Ricoh finishers and booklet finishers.
Capacity: 200 sheets (0.11mm/sheet) Paper size: width 210–330.2 mm, length 420–700 mm Paper weight: 52.3–300.0 g/m2
Notes:
Cannot be installed with Extension Output Banner Sheet Tray Type S14
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Extension Output Banner Sheet Tray Type S14
Required for banner sheet output for selected Ricoh finishers and booklet finishers. Can be installed on an upper tray or lower tray. Note: A maximum of two units can be installed (upper tray and lower tray).
Paper capacity (0.1 mm paper thickness): When installed on upper tray 230 sheets—488–762 mm 100 sheets—up to 1,030 mm 50 sheets—up to 1,230 mm
When installed on lower tray 300 sheets—488–762 mm 100 sheets—up to 1,030 mm 50 sheets—up to 1,230 mm
Paper size: Width: 100 x 330.2 mm Length: 139.7 x 1,260 mm
Paper weight: When installed on upper tray 40–350 g/m2—487.7 mm or less 105.1–350 g/m2—487.8–700 mm 105.1–310 g/m2—up to 960 mm 163.1–310 g/m2—up to 1,260 mm
When installed on lower tray 40–470 g/m2—487.7 mm or less 52.3–470 g/m2—487.8–700 mm 105.1–310 g/m2—up to 960 mm 163.1–310 g/m2—up to 1,260 mm Note: Only limited media support is available for 300 g/m2 and above.
Notes:
Cannot be installed with SR5000 Series Output Tray for Banner Sheet Type S6
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 NA
Installed in a finisher of a printing device to enable automatic 2-hole or 3-hole punching of pages.
Number of punch: 2 or 3 holes interchangeable Punch registration: Supported; resist roller and side registration sensor Paper weight: 52–300 g/m2 Performance: Same as engine speed
Notes:
Cannot be installed with Punch Unit PU5030 EU ,Punch Unit PU5030 SC
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 EU
Installed in a finisher of a printing device to enable automatic 2-hole or 4-hole punching of pages.
Number of punch: 2 or 4 holes interchangeable Punch registration: Supported; resist roller and side registration sensor Paper weight: 52–300 g/m2 Performance: Same as engine speed
Notes:
Cannot be installed with Punch Unit PU5030 SC ,Punch Unit PU5030 NA
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
Punch Unit PU5030 SC
Installed in a finisher of a printing device to enable automatic 4-hole punching of pages.
Number of punch: 4 holes Punch registration: Supported; resist roller and side registration sensor Paper weight: 52–300 g/m2 Performance: Same as engine speed
Notes:
Cannot be installed with Punch Unit PU5030 EU ,Punch Unit PU5030 NA
One of the following must also be selected: Finisher SR5110,Booklet Finisher SR5120
RPIP Interface Box Type S3
Enables the inline connectivity of a Ricoh mainframe with a selected third party finishing option.
Dimensions (W x D x H): 265 x 253 x 136 mm Weight: 0.55 kg
Notes:
Cannot be installed with Trimmer Unit TR5050
Color Controller N-50A
An external colour controller that is targeted at mid-volume production environments. System version: Fiery FS500 Pro Configuration: Optional CPU: Intel i5-8500 Memory: 8 GB HDD: 256 GB SSD SATA—OS; 1 TB HD SATA—data Base operating system: Windows 10 IoT Enterprise 2019 LTSC Network protocol: Windows—TCP/IP; Mac—TCP/IP, EtherTalk, Bonjour Interfaces: 10Base-T/100Base-Tx (Ethernet), 1000Base-T (Gigabit Ethernet), USB 2.0 x 4—rear, USB 3.0 x 5—2 ports on the rear, 3 ports on the Fiery Quick Touch operation panel
Notes:
Cannot be installed with Color Controller N-70A
Color Controller N-70A
An external colour controller that is targeted at mid-volume production environments. System version: Fiery FS500 Pro Configuration: Optional CPU: Intel Xeon 4214 (Silver) Memory: 32 GB HDD: 480 GB SSD SATA—OS; 2 TB HD x 2 SATA—data Base operating system: Windows 10 IoT Enterprise 2019 LTSC Network protocol: Windows—TCP/IP; Mac—TCP/IP, EtherTalk, Bonjour Interfaces: 10Base-T/100Base-Tx (Ethernet), 1000Base-T (Gigabit Ethernet), USB 3.0 x 7—rear USB 3.0 x 4 ports, x 3 ports on the Fiery Quick Touch operation panel
Notes:
Cannot be installed with Color Controller N-50A
Productivity Upgrade Unit Type S14
USB dongle to upgrade Pro C7500 base model print speed from 85 ppm to 95 ppm.
5th Station Upgrade Kit Type S14
Upgrade kit to add a 5th toner station for special colour printing.
EFI 5th Station Hardware Upgrade Kit Type S9
Mandatory option to enable 5th station printing on the Color Controller N-50A or Color Controller E-70A.
Notes:
One of the following must also be selected: Color Controller N-50A,Color Controller N-70A
Standard inclusions
21.5" operation panel
RICOH GC OS controller
40–470 g/m2 paper support
960 mm continuous duplex printing
Upgradeable to 5-station configuration
Current configuration
Pro C7500
1320 mm x910 mm x1218 mm (W x D x H)
590 kg
