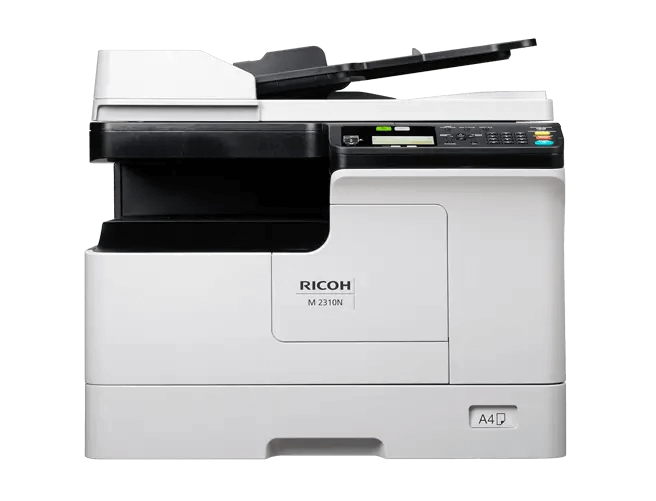

The M 2310N provides A3 printing, copying, and scanning with built-in Ethernet network connectivity in a compact design.
Ideal for shared workgroup environments, it ensures smooth document processing with a 23 ppm speed, convenient Scan to USB, Mobile, and Folder modes, duplex as standard, and an intuitive 4-line LCD panel. A Typical Electricity Consumption (TEC) value of just 0.35 kWh and 0.94 W energy usage in Sleep Mode help maintain a minimal environmental footprint. The standard 350-sheet input capacity (standard + bypass tray) can be expanded to 600 sheets via an optional paper feed unit to minimise paper refills.
A cost-effective networked solution, the M 2310N can be configured with either a platen cover or Automatic Reversing Document Feeder (ARDF) for added flexibility.
Note: The image in the Device Configurator displays the mainframe with the ARDF and standard tray only and does not reflect any additional options selected during configuration.
Platen Cover PN2020
A cover for the platen glass. No automated feeding to scan and copy documents.
Physical dimensions (W x D x H): 566 x 432 x 32 mm Weight: 1.4 kg
Notes:
Cannot be installed with ARDF DF2040
ARDF DF2040
Automatic Reversing Document Feeder. Feeds originals one page at a time into a scanner or copier without users having to manually replace each page.
Capacity: 50 sheets—80 g/m2 paper, less than 9.5 mm Dimensions (W x D x H): 570 x 445 x 88 mm Weight: 4.5 kg Power consumption: 40 W or less
Notes:
Cannot be installed with Platen Cover PN2020
Paper Feed Unit PB2080
Optional 1-tray paper feed unit that increases the paper capacity of the device.
Capacity: 250 sheets Paper size: A5R–A3 Paper weight: 64–80 g/m2 Dimensions (W x D x H): 575 x 565 x 117.3 mm Weight: 5.5 kg Power consumption: 0.92 W
Standard inclusions
250-sheet standard input tray
100-sheet bypass tray
100-sheet output tray
512 MB RAM
4-line LCD panel
Ethernet network connectivity
Current configuration
M 2310N
575 mm x565 mm x402 mm (W x D x H)
24.4 kg
Selected Options:
