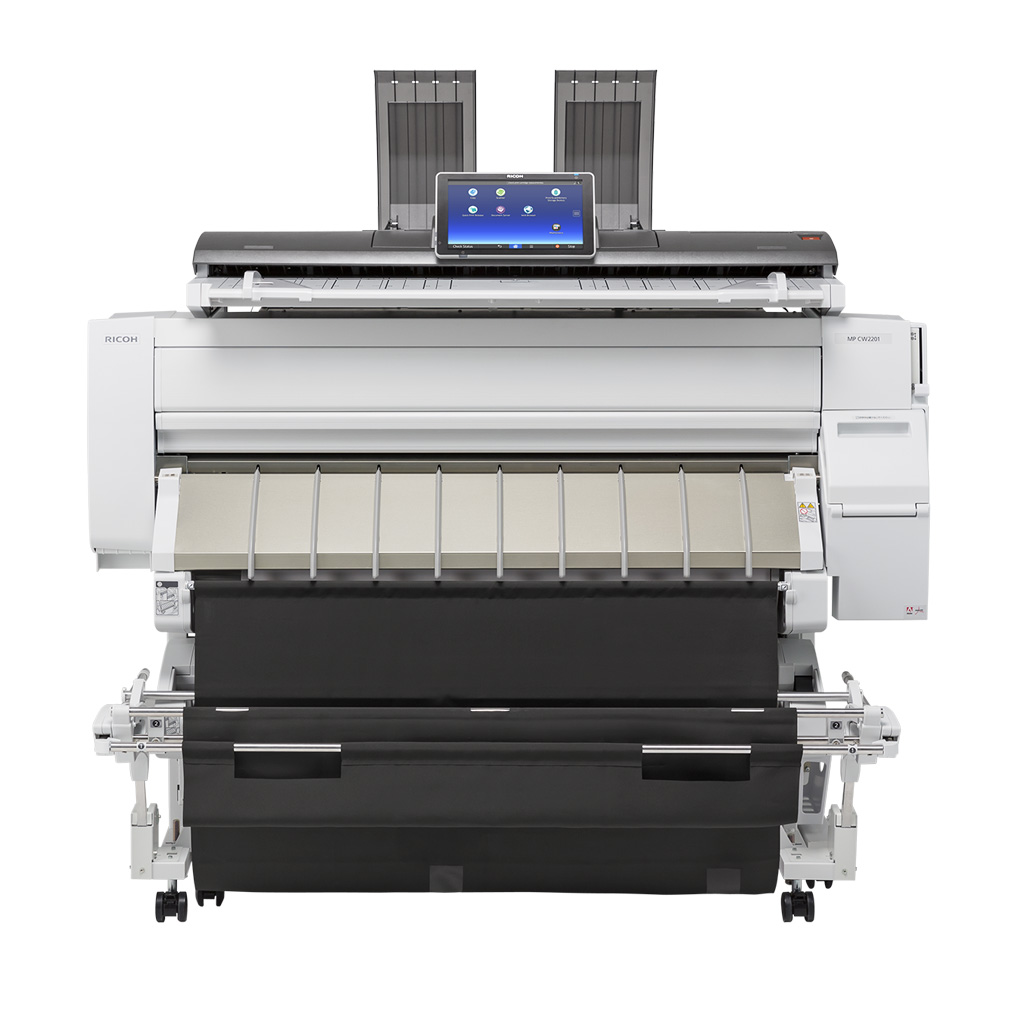

MP CW2201SP เครื่องพิมพ์ Wide Format สี
- พิมพ์, ถ่ายเอกสาร, สแกน
- พิมพ์งานขาวดำขนาด A1 ที่ความเร็ว 3.8 ppm
- ความละเอียด 1,200 x 1,200 dpi
- รองรับกระดาษยาวสูงสุด 15 เมตร
หัวพิมพ์แบบคู่ และเทคโนโลยีหมึกพิมพ์แบบ pigment จะทำให้งานพิมพ์ของคุณมีคุณภาพยอดเยี่ยมในทุกๆ แผ่น
พิมพ์งาน CAD drawing ได้รวดเร็วและสีสันสดใส
MP CW2201SP เครื่องพิมพ์หน้ากว้างที่ช่วยให้คุณสแกนและส่งไฟล์ได้อย่างง่ายดาย เหมาะสำหรับธุรกิจที่ต้องพิมพ์งานที่ต้องใช้ความละเอียดสูง คมชัดแม้รายละเอียดเล็กๆ
พิมพ์ได้ยอดเยี่ยม และสแกนได้คล่องตัว
MP CW2201SP สามารถพิมพ์งาน drawing สีความละเอียดสูงแบบหน้ากว้าง เหมาะสำหรับการใช้งานภายออฟฟิศที่ทำงานด้านก่อสร้าง วิศวกรรม หรือสถาปัตยกรรม โดยสามารถพิมพ์ สแกน และถ่ายเอกสารต้นฉบับขนาดใหญ่ถึง A1 และ A0 แบบความละเอียดสูงได้ ตัวเครื่องมาพร้อมหน้าจอแผงควบคุมเครื่องขนาดใหญ่ ใช้งานง่ายด้วยระบบสัมผัส สามารถสร้าง shortcut หรือติดตั้งแอปพลิเคชันที่ทำงานร่วมกับระบบคลาวด์เพื่อให้คุณทำงานได้ง่ายยิ่งขึ้นได้ นอกจากนี้ สแกนเนอร์ที่มาพร้อมกับตัวเครื่อง ยังช่วยให้คุณสแกนและส่งไฟล์ไปยังอีเมลหรือโฟลเดอร์ได้ในยามที่คุณต้องการ และยังสามารถพิมพ์งานหรือสแกนไปยังหน่วยความจำ USB หรือ SD card ได้โดยตรง พร้อมคุณลักษณะต่างๆ ที่ช่วยเพิ่มความปลอดภัยให้กับข้อมูลของคุณ
ออกแบบให้ใช้งานง่าย เพื่องานดีไซน์สุดล้ำ
ไม่ว่าคุณจะเป็นสถาปนิก วิศวกร ผู้รับเหมา หรือดีไซน์เนอร์ คุณจะต้องทึ่งกับคุณลักษณะอันเหนือชั้น และดีไซน์ที่ยอดเยี่ยมของ MP CW2201SP ที่ทำให้เครื่องใช้งานง่าย โดยผู้ใช้สามารถเปลี่ยนม้วนกระดาษหรือตลับหมึกได้จากด้านหน้าเครื่อง และมี paper basket ที่ช่วยรองรับงานพิมพ์ที่ออกมาจากเครื่องให้เป็นระเบียบ
- ประหยัดพลังงาน
Low Power Mode และ Sleep Mode ช่วยให้เครื่องใช้พลังงานน้อยลง - ได้งานพิมพ์คุณภาพ
หมึกพิมพ์แบบแห้งไว และเม็ดสีที่ละเอียดคมชัด ช่วยให้งานพิมพ์มีคุณภาพและพร้อมใช้งานได้ทันที - เข้าถึงภายในตัวเครื่องได้ง่าย
สามารถเติมกระดาษหรือเปลี่ยนตลับหมึกได้จากด้านหน้าเครื่อง และมี paper basket ที่ช่วยรองรับงานพิมพ์ที่ออกมาจากเครื่องให้เป็นระเบียบ - ใช้พื้นที่ในการติดตั้งน้อย
MP CW2201SP มาพร้อมดีไซน์ที่สามารถติดตั้งได้แม้ภายในออฟฟิศขนาดเล็ก
Specifications
- ฟังก์ชัน
- Copy, print, scan
- สี
- Yes
- พรินเตอร์คอนโทรลเลอร์—มาตรฐาน
- GWNX
- HDD
- 320 GB
- Document server
- 320 GB—document server HDD capacity
3,000 documents
1,000 pages per document
3,000 pages of all documents - CPU มาตรฐาน
- 1.75 GHz
- หน่วยความจำ—มาตรฐาน
- 4 GB
- แผงควบคุมการปฏิบัติงานเครื่อง
- 10.1-inch Smart Operation Panel
- ขนาดเครื่อง (ก X ย X ส)—ตัวเครื่อง
- 1,384 x 675 x 1,220 mm
- ขนาดเครื่อง (ก X ย X ส)—อื่นๆ
- 1,108 x 398 x 432 mm—roll feeder
1,049 x 160 x 160 mm—roll holder - น้ำหนัก—ตัวเครื่อง
- 120 kg
- น้ำหนัก—อื่นๆ
- 14.5 kg—roll feeder
1.5 kg—roll holder - พื้นที่ในการจัดวาง
- Front—2,000 mm
Left—600 mm
Back—600 mm
Right—600 mm
- ปริมาณการพิมพ์เฉลี่ยต่อเดือน
- 120 metres
- ปริมาณการพิมพ์สูงสุดต่อเดือน
- 1,200 metres
- อายุการใช้งาน
- 72 km or 5 years, whichever comes first
- PM cycle
- 16,840 copies (A1 LEF) or 10,000 metres
- Mean Copies Between Calls (MCBC)
- 5,260 copies (A1 LEF) or 10,000 metres
- วัสดุสิ้นเปลือง
- Black and white printing
529 copies or 314 m per 200 ml black cartridge
708 copies or 421 m per 100 ml cyan cartridge
699 copies or 415 m per 100 ml magenta cartridge
700 copies or 416 m per 100 ml yellow cartridge
Colour printing
352 copies or 209 m per 200 ml black cartridge
472 copies or 280 m per 100 ml cyan cartridge
466 copies or 277 m per 100 ml magenta and yellow cartridge
Note: All toner yields are measured using A1 LEF paper with 6% black and white/20% colour (5% x 4 colours) coverage, and a 40% colour ratio, 60% black and white ratio.
Waste tank capacity
425 ml or 5 years, whichever comes first
120 m
40% colour ratio
Waste tank use conditions
23 degrees Celcius and 50% humidity
- ความจุกระดาษ—มาตรฐาน (แผ่น)
Roll feed
One roll each—297–914 mm wide x 150,000 mm long, or max diameter 176 mm
Bypass
1 sheet- ความจุสำเนา—มาตรฐาน (แผ่น)
10 sheets plain paper—packet stack
Note: 2-inch core rolls can’t be stacked because the curvature factor is small.
- ส่วนประกอบการป้อนกระดาษ - มาตรฐาน
- 1-sheet bypass tray, 1-roll feeder
- ส่วนประกอบการป้อนกระดาษ - อุปกรณ์เสริม
- 1-roll feeder, roll holder
- ส่วนประกอบการจัดการสำเนา - มาตรฐาน
- Output basket
- วัสดุการพิมพ์ที่รองรับ
Paper types
Plain paper, recycled paper, inkjet plain paper, tracing paper, matte film, coated paper, coated paper—CAD, special paper
Output paper weight
51–200 g/m²—roll paper
51–220 g/m²—cut sheet- ขนาดกระดาษสูงสุด
- 914 mm x 15,000 mm
- น้ำหนักกระดาษ (แกรม)
- 51–220
- อินเทอร์เฟซ—มาตรฐาน
- 10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
USB host mini Type A
USB 2.0
SD card slot - อินเทอร์เฟซ—อุปกรณ์เสริม
- IEEE 802.11a/g/n (Wireless LAN)
- เน็ตเวิร์กโปรโตคอล—มาตรฐาน
- TCP/IP (IPv4, IPv6)
- การรองรับ MIB
- Standard
MIB-II (RFC1213)
Host Resources MIB (RFC1514)
Printer MIB (RFC1759)
Private
Ricoh original MIB
- ความเร็วในการถ่ายเอกสาร
A1 LEF—black and white
2.0 cpm—Standard Mode
3.8 cpm—High Speed ModeA1 LEF—colour
1.2 cpm—Standard Mode
2.1 cpm—High Speed Mode
A0 SEF—black and white
1.1 cpm—Standard Mode
1.9 cpm—High Speed ModeA0 SEF—colour
0.6 cpm—Standard Mode
1.1 cpm—High Speed Mode- เวลาในการถ่ายเอกสารแผ่นแรก
A1 LEF—black and white
41 seconds—Standard Mode
29 seconds—High Speed ModeA1 LEF—colour
84 seconds—Standard Mode
53 seconds—High Speed Mode
A0 SEF—black and white
71 seconds—Standard Mode
51 seconds—High Speed ModeA0 SEF—colour
155 seconds—Standard Mode
81 seconds—High Speed Mode- ความละเอียดของสำเนา
- 600 x 600 dpi—Standard Mode
600 x 300 dpi—High Speed Mode - ความกว้างต้นฉบับ
- 210, 257, 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm
- ความกว้างม้วนกระดาษ
- 297, 364, 420, 440, 490, 515, 594, 620, 625, 660, 680, 707, 728, 800, 841, 880, 914 mm
- การป้อนต้นฉบับ
- Sheet
- ขนาดใหญ่สุด
- 914 x 15,000 mm—roll feeder
914 x 2,000 mm—bypass - ขนาดเล็กสุด
- 210 x 210 mm
- การตั้งค่าตำแหน่ง
- Centre
- กระบวนการตัดกระดาษ
- Preset size, synchronised cut, variable cut
- Image shift
- Front, rear, left, right—0 to ±200 mm in 1 mm steps
- การหยุดแบบฉุกเฉิน
- Supported—key
- การเลือกจำนวน
- 1–99
- Copy reservations
- 8 reservations
- โปรแกรมงานที่ตั้งค่าไว้
- Up to 25 program modes
- อัตราการซูม
- 25%–400% in 0.1% steps
- อัตราส่วนการขยาย
- 141.4%, 200%, 282.8%, 400%
- อัตราส่วนการย่อ
- 25%, 35.4%, 50%, 70.7%
- การปรับความเข้มจางภาพ
- 7 levels, black and white, greyscale, full colour—manual ; black and white, greyscale—Auto density selection
- การปรับความเข้มจางภาพ
- Automatic, manual—9 steps
- โหมดถ่ายเอกสาร
- Black and white
Drawing mode—default
Text mode, Generation mode, Map mode, Background Line mode, Pasted Original mode, Highlighter mode
Text/Photo mode, Photo mode—printed, glossy, copied
Colour
Drawing mode—default
Text mode, Generation mode, Map mode
Text/Photo mode, Photo mode—printed, glossy, copied - การเลือกกระดาษอัตโนมัติ (APS)
- 1st roll, 2nd roll (optional), bypass tray
- ถ่ายเอกสารรวมหน้า (Combine copy)
- 2, 4, or 8 into 1 up to A1
- Interrupt copy
- Not supported
- Auto tray change
- Supported
- User codes
- 1,000 user codes, 8 digits in each code
- การใส่แผ่นแทรก
- Supported
- การจัดเรียงแบบอิเล็กทรอนิกส์ (Sort)
- Rotate sort up to A1
- การปรับขอบ/ลบขอบ
- Margin adjustment
0–200 mm in 1 mm steps
Erase Border
2–99 mm in 1 mm steps
Inside, Outside
0–1,220 mm in 0.1 mm steps - การปรับภาพ
- 7 levels—sharpen/soften
9 levels—contrast
9 levels—background density
9 levels—Under Colour Removal (UCR) adjustment
5 levels—colour sensitivity
15 colours—colour program registration - การสร้างภาพ
- Repeat, mirror, positive/negative, double copy—up to A1
- การสร้างสี
- Colour conversion, colour erase
- การประทับตรา
- 8 stamps, 2 sizes—presets
40 stamps can be registered—user presets
5 styles—date stamp
6 styles—page stamp
9 digits supported, zero suppression not supported—Bates stamping - การกลับภาพ
- Supported
- คุณลักษณะการถ่ายเอกสารอื่นๆ
- Auto density adjustment, Colour adjustment, Colour balance adjustment, Auto start, Job preset, Sample copy, Simplified Display, Login/logout button, Job log data report, Document server, Unauthorised copy prevention, Partial copy—210–15,000 mm length can be defined as partial, OHP slip sheet—bypass only, Paper type display—standard tray, Image border—3 mm or less all edges (roll paper); 3 mm or less leading edge/18 mm or less training edge/3 mm or less right/left edges (bypass)
- ความเร็วในการพิมพ์—สี
- 2.1 ppm
- ความเร็วในการพิมพ์—ขาวดำ
- 3.8 ppm
- กระบวนการพิมพ์
- On demand Piezo inkjet system
- ส่วนประกอบหมึก
- Pigment-based ink—all four colours
- ความละเอียดในการพิมพ์
Speed Priority (Drawing) Mode, Speed Priority Mode
600 x 300 dpiStandard Mode
600 x 600 dpiQuality Priority Mode with coated paper, film (matte) and special paper
1,200 x 1,200 dpiQuality Priority Mode with other paper types
600 x 600 dpiNote: Some paper types not supported in Speed Priority (Drawing) Mode.
Print resolution by paper type
For information about the print resolution by paper type, refer to the Sales handbook.- Page description languages (PDLs)
- PostScript3, PDF Direct, RP-GL/GL2, RTIFF, Media Print JPEG, Media Print TIFF
- พรินเตอร์ไดรฟ์เวอร์
- PostScript 3, HDI
- ฟอนต์
- 136 Roman fonts—PostScript 3
- Print from USB/SD
- Supported—JPEG, TIFF, PDF
- คุณลักษณะการพิมพ์อื่นๆ
- One direction, Unauthorised copy prevention—print, WSD printer, Colour matching, POP, Colour Universal Design (CUD), AutoCAD support, Ink Save Mode—save ratio 50%, available with PostScript 3, Supported AutoCAD versions with HDI driver—2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016
- ความเร็วในการสแกน
- Black and white
80 mm/second—600 dpi
160 mm/second—200 dpi
Colour
26.7 mm/second—600 dpi
40 mm/second—200 dpi - กระบวนการสแกน
- Scan to USB/SD, Scan to email, Scan to folders (FTP, SMB), Scan to URL
- สแกนสี
- Supported
- โหมดสแกน
- Scan modes
Black and white
Text/Line Art—default, Text, Text/Photo, Grayscale
Colour
Text/Photo, Photo - ความละเอียดในการสแกน
- 150, 200, 300, 400, 600 dpi—Scan to email/folder
150–2,400 dpi—TWAIN
Note: 2,400 dpi is only supported using A4 paper. - การตรวจจับขนาดอัตโนมัติ
- Auto detect, preset paper size, custom size
- พื้นที่ในการสแกน
- 210 x 210 mm—minimum
Black and white—maximum
914.4 x 15,000 mm
Note: Optional file format converter is required when the paper length is greater than 2,774 mm.
Colour—maximum
914.4 x 2,774 mm—600 dpi
914.4 x 4,161 mm—400 dpi
914.4 x 5,548 mm—300 dpi
914.4 x 8,323 mm—200 dpi
914.4 x 11,097 mm—150 dpi
Note: PDF1.4 is supported up to 5,080 mm. - การรองรับ sRGB
- Standard
- การบีบอัดการสแกน
- Black and white
MH, MR, MMR—default, JBIG2
Note: JBIG2 supported using PDF file format.
Colour
5 levels—JPEG - การปรับความเข้มจางภาพ
- 7 levels, black and white, greyscale, full colour—manual ; black and white, greyscale—Auto density selection
- Scan to email—คุณลักษณะอื่นๆ
Protocols
SMTP gateway, TCP/IP
Authentication
SMTP, POP before SMTP
Scan resolution
150, 200—default, 300, 400, 600 dpi
Email addresses stored in HDD
2,000—maximum email addresses
100 groups—maximum registered group addresses
500 addresses in one group—maximum
Maintain email addresses in HDD
Via the operation panel, Web Image Monitor
Enter email addresses on the operation panel
Maximum 100 destinations per job
Search email addresses in HDD
By name and email address
LDAP
Supported
Maximum number of email addresses per send
500—from HDD
100—direct input
100—via LDAP
Attention
To, Cc, Bcc
Scan to email size
128–102,400 KB—with restriction, default 2,048 KB
975 MB—without restriction
File types
Single-page
TIFF, JPEG, PDF, high compression PDF, PDF/A, Searchable PDF
Multi-page
TIFF, PDF, high compression PDF, PDF/A, Searchable PDFNote: Searchable PDF supported by optional OCR unit.
Program user settings
Up to 25 programs
Divide and send email
Divide by page or by size; default divide by size
Resend
Yes, No; default Yes- Scan to folder
Protocols
SMB, FTP
Security
Client folder logon (logon name and password), encryption of logon name and password during transmission
Scan resolution
150, 200—default, 300, 400, 600 dpi
Registered client folders in HDD
Maximum 2,000 folders
Maintain folder addresses in HDD
Via operation panel, Web Image Monitor
Destination folder address input via operation panel
Supported
SMB—Network path->Client folder->Password
FTP—Server->Network path->User account->Password
Search client folder
SMB—browsing directly to the designated folder
FTP—by folder name
Maximum client folders/PCs per send
50 folders
Destination combination
Supported
Maximum group addresses
100—destinations from a maximum of 50 folders
Input subject
Not supported
Scan to file size
Up to 2,000 MB
File size when combined with Scan to email
128–102,400 KB—default 2,048 KB, setting range
975 MB—available range
File types
Single-page
TIFF, JPEG, PDF, high compression PDF, PDF/A, Searchable PDF
Multi-page
TIFF, PDF, high compression PDF, PDF/A, Searchable PDFNote: Searchable PDF supported by optional OCR unit.
Program user settings
Up to 25 programs
Divide and send email
Divide by page or by size; default divide by size
Resend
Yes, No; default Yes- TWAIN scanning
- Scanning speed
Black and white
80 mm/second—600 dpi
160 mm/second–200 dpi
Colour
26.7 mm/second—600 dpi
40 mm/second—200 dpi
Resolution
150–2,400 dpi—black and white
100–2,400 dpi—colour
Scan mode
Standard, Diazo
Image adjustment
Brightness, Contrast, Threshold, Gamma Adjustment, Halftone Pattern
Operating systems
32-bit
Windows Server 2003, Windows Server 2008, Windows 7, Windows 8, Windows 8.1
64-bit
Windows Server 2003, Windows Server 2008, Windows Server 2008 R2, Windows Server 2012 R2, Windows 7, Windows 8, Windows 8.1 - คุณลักษณะแฟกซ์อื่นๆ
- Gradation—1-bit in black and white, 8-bit in greyscale, 8-bit/24-bit in colour
- DataOverwriteSecurity System (DOSS)—มาตรฐาน
- Yes
- DataOverwriteSecurity System (DOSS)—อุปกรณ์เสริม
- Type M19—supports the requirements for Common Criteria certification, conforming to IEEE 2600.1
- การเข้ารหัส
- Authentication password encryption
Encrypted communication over Secure Sockets Layer (SSL)
HDD data encryption
Locked print data encryption
Address book encryption
Encryption of data sent via Scan to email (S/MIME)
PDF encryption (password and transmission) - การกำหนดสิทธิ์
- Administrator authentication
User authentication—Windows (via Kerberos), LDAP, basic, user code
802.1x wired authentication - คุณลักษณะความปลอดภัยอื่นๆ
- Secure Internet Protocol communication (IPsec)
SNMPv3 support
Network protocol on/off
Restrict use of destination for ‘scan to’ functions
Permit adding destination for ‘scan to’ destinations
- Windows
- 32- and 64-bit
Windows Vista
Windows 7
Windows Server 2003
Windows Server 2008
Windows 8
Windows 8.1
64-bit
Windows Server 2008 R2
Windows Server 2012 R2 - การรองรับ Citrix
- Citrix Presentation Server 4.5
Citrix XenApp 5, Citrix XenApp 6 - Macintosh
- OS X Native v10.7 or later
- ระบบปฏิบัติการอื่นๆ ที่รองรับ
- Novell
NetWare 4.x, 5.0, 6.0, 6.5
OES 1.0, 2.0
- มาตรฐาน
- @Remote Embedded
Web Image Monitor
Device SDK - อุปกรณ์เสริม
- @Remote Office
Device Manager NX
PrintCopyTool
Global Scan NX (v2.4.1 will be supported after the device release)
- พลังงานไฟฟ้า
- 220–240 V, 50/60 Hz, 8 A
- การใช้พลังงาน
- 180 W or less—maximum power
1.2 W or less—Energy Saver Mode (Sleep Mode) - เวลาในการอุ่นเครื่อง
- 40 seconds or less
- การตั้งเวลา
- Auto Off, Energy Saver, Panel Off, System Reset
- เวลาในการกลับคืนการทำงาน
- 7 seconds or less—from Energy Saver Mode (Sleep Mode)
- ระดับพลังเสียง
- 40 dB or less—standby
68 dB or less—copying - ระดับความดันเสียง
- 36 dB or less—standby
60 dB or less—copying - ระดับการปล่อยมลพิษ
- Styrene—1.8 mg/h or less
- การลดการใช้วัสดุที่มีผลกระทบต่อสิ่งแวดล้อม
- Complies with Reduction of Hazardous Substances (RoHS) requirements
- มาตรฐานด้านสิ่งแวดล้อม
- Energy Star
R&TTE—2.4 GHz, 5 GHz
C-Tick—Australia
C-Tick RCM—New Zealand
EN62311 (CE marking)
RoHS
EURoHS
China RoHS
REACH
Directive 2006/66/EC
Directive 94/62/EC
WEEE
India E-waste
RECSIS - มาตรฐานความปลอดภัย
- IEC60950-1 (CB Authentication)
EN60950-1
EAC (CU-TR)
CCC (GB4943) - มาตรฐาน Electromagnetic Compatibility (EMC)
- EMC
EN55022 (Class A)
EN55024
EN61000
EAC (CU-TR)
EN61000-3-2
EN61000-3-3
RMC Mark (AS/NZS CISPR22)
C-Tick—Australia, New Zealand
CCC (GB4943, GB17625.1) - การระบุส่วนประกอบที่เป็นพลาสติก
- All plastic components weighing more than 25 g are identified in accordance with DIN548490 and ISO11469.
