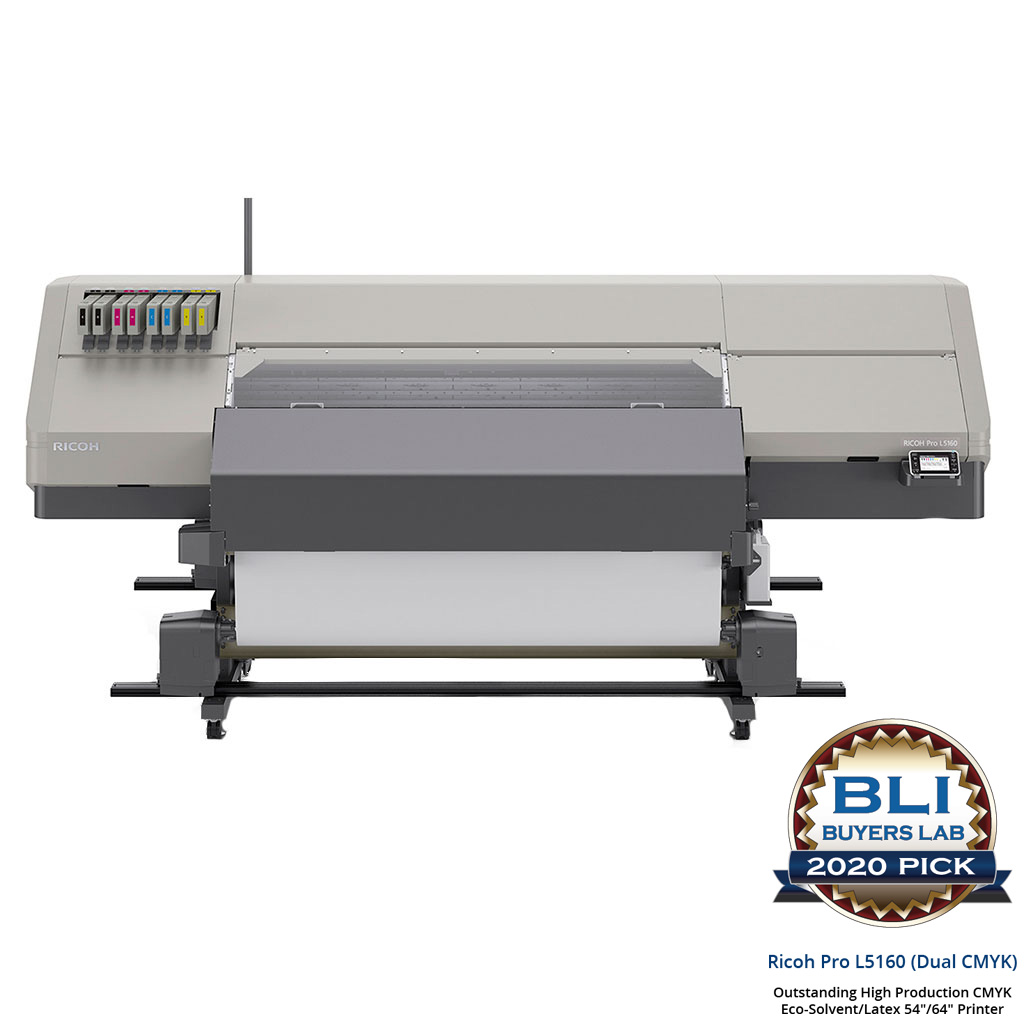

Pro L5160 เครื่องพิมพ์หน้ากว้างระบบหมึกลาเท็กซ์

500 mm—left and right
1,000 mm—front
1,250 mm—rear
4,259 mm—total width
3,249 mm—total depth

No starter ink cartridge included in the mainframe
600 ml—Standard-yield ink cartridge L5160
1,200 ml—High-yield ink cartridge L5160 H
2,000 ml—Waste ink bottle Type C2
1.5 months (based on APV)—Cleaning cartridge Type C2
600 ml—Displacement cartridge Type C2
200 ml—Flushing cartridge Type C2
12 pieces per unit—Cleaning stick Type C2
200 ml bottle of flushing solution/3 x rubber gloves/2 x droppers—Maintenance kit Type C2

Ink settings

4-colour printing
K-K-M-M-C-C-Y-Y

4-colour + white printing
K-M-C-Y-W-W-W-W

Roll media
Roll width
1,625 mm—maximum
297 mm—minimum

Thickness
432 µm—maximum
100 µm—minimum

Maximum roll outside diameter
250 mm or less

Maximum roll inside diameter
2" or 3"

Maximum roll weight
55 kg or less

Maximum media feed length
300 m or less

Cut sheet media
Media width
1,625 mm—maximum
297 mm—minimum

Media thickness
432 µm—maximum
100 µm—minimum

Recommended media types
PVC, banner, PET, PP, coated paper, textile (canvas)

46.7 m²/h—4-colour outdoor standard
25.0 m²/h—4-colour indoor standard
7.7 m²/h—white layer printing

Latex ink—2nd generation AR ink

C, M, Y, K—4-colour (default)
C, M, Y, K, W—4-colour + white

Note: Changes to ink configuration after installation can only be made by a service engineer, additional costs apply.

450 dpi, 600 dpi, 900 dpi, 1,200 dpi

Static red light
System error
Out of supply

Flashing yellow light
Ink nearly out
Waste ink bottle nearly full

Note: Flashing yellow light will display only when printing.

Flashing blue light
Data in

Static blue light
Completion of data in
Printing

Auto-cutting
On/Off

Cutting positioning at auto-cutting
60 mm, 80 mm, 100 mm selectable distance from the end of image data

ONYX RIPCenter (software RIP)

Requirements for client PC
Operating system
Windows 7 64-bit (Professional, Enterprise, Ultimate) or
Windows 8.1 64-bit (Professional, Enterprise) or
Windows 10 64- bit (Professional, Enterprise)

CPU
Inter Core i7 or later

RAM
16 GB or more

HDD
750 GB or more

USB port
2

Network
Gigabit Ethernet adapter

Monitor
1,280 x 1,024 dpi or more

Note: PC specifications will vary according to required environment by every RIP and Ricoh unique driver. Ricoh will guarantee product specifications with bundled RIP software.

Requirements for unique Ricoh driver (embedded in each RIP)
CPU
SSE 4.1 or later

HDD
+500 GB or more for each Pro L5100 series printer

Input data
Selectable file format
PostScript, EPS, PDF, Remote Proofing, TIFF, Targa, Bitmap, DIB, Scitex CT, JPEG, Photoshop, Photoshop Large, GIF, PC Paintbrush, Photo CD, MrSID, ILS, PNG, JDF

Rendering
Photoshop core
Adobe Normalizer

PDF core
Adobe PDF Print Engine (APPE 4.8)

Dot
2 bit—4 values

Selectable dot pattern
Stochastic, FDRP Enhanced, FDRP Diffusion, FDRP Line, FDRP Plus, Ordered Dither, Screen, Halftone, Line Screen, Smooth Screen

Colour matching
Input profile
Defined by quickset or design file

Grey balance
Defined by input profile and/or print mode

Monitor
Not available

Colour exchange
Available condition
Colour replacement on Job editor

Special colour print
Available condition
Using spot colour in PDF, the spot should named ’Spot1’

Profile
Device
User needs to import and select

Import
Input profile: ICC Profile Setup -> Browse
Device profile: Configure Printer -> Media -> Import

Export
Input profile: No need to export
Device profile: Configure Printer -> Media -> Export

Delete
Input profile: No need to delete
Device profile: Configure Printer -> Media -> Delete

Image editing
Resizing, Cropping, Rotation, Step and Repeat, Tiling, Adding Offsets/Bleed/Grommets/Marks/Labels

Image layout
Automatic nesting—proprietary at print time/Job list order

Insert method
Drop in Hot Folder

Print
Print method
Print after RIP

Multiple print
Active Printers: 1
Active RIP: 1
Active Print: 1

Interface
Ethernet / TCP/IP

Print/Status
RIP information
Status, Preview, Size, Copies, Order Number, Company Name, Customer Name, Printer, Media, Prints Due, Print Mode, Resolution, Pattern, Reflected, RIP time, Cutter, User, File Name, File Size, Time, Ink Use (millilitres), Total Ink, Ink Coverage, Due Date, Notes, Media Source

On-screen
Yes

Manuals
Installation manual
PDF

Operation manual
Downloadable at help.onyxgfx.com

Protection
USB dongle

Colour printing
600 x 450 dpi—6 pass bi/uni
600 x 600 dpi—8 pass bi/uni
600 x 900 dpi—12 pass bi/uni
600 x 1,200 dpi—16 pass bi/uni
1,200 x 1,200 dpi—32 pass bi/uni

White printing
600 x 900 dpi—12 pass bi/uni

PostScript, EPS, PDF, Remote Proofing, TIFF, Targa, Bitmap, DIB, Scitex CT, JPEG, Photoshop, Photoshop Large, GIF, PC Paintbrush, Photo CD, MrSID, ILS, PNG, JDF

Display
Japanese, English, German, French, Italian, Spanish, Dutch, European Portuguese, Russian, Korean

Software RIP
English, French, Spanish, Italian, German, Czech, Polish, Turkish, Portuguese, Japanese, Simplified Chinese, Traditional Chinese, Korean

6,000 W or less—maximum
5.35 W or less—Energy Saver Mode (Sleep Mode)
0.5 W or less—Auto Power-off

7 minutes or less

67 dB or less—standby
72 dB or less—operating

Installation environment
15–30 °C—usable temperature
20–25 °C—precision guaranteed temperature
35–80%—usable humidity (relative humidity—no condensation)
40–60%—precision guaranteed (relative humidity)
Office equivalent—dust

Storage conditions
-20–40 °C—temperature
35–40 °C—temperature (maximum 31 days)
75 % or less—humidity
1 carton—stack height
Maximum 18 months from date of manufacture—storage period

Transportation conditions
-30–50 °C—temperature
30–85 % or less—humidity
1 carton—stack height
