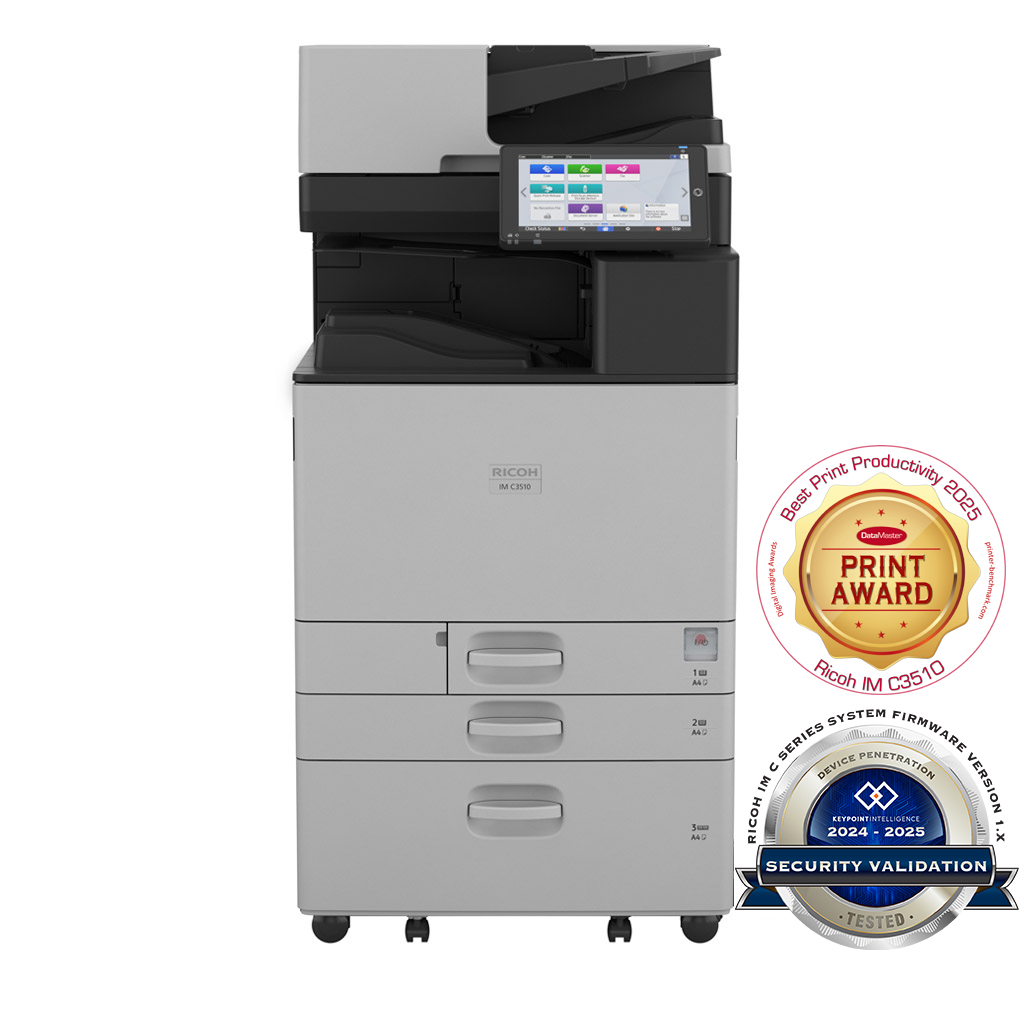

IM C3510 A3 colour multifunction printer

  • Copy, print, scan, optional fax
  • Prints up to 35 ppm
  • Top environmental performance
  • Robust security

Improved paper handling

An updated Single Pass Document Feeder (SPDF) lets you enjoy faster, professional results along with wider scanning possibilities, such as for business cards and cheques.

More intuitive operation

Our familiar Smart Operation Panel has been upgraded with improved brightness, touch sensitivity, and position detection, to deliver a more enjoyable user experience.

  1. Transitioning to the cloud
    Our cloud software solutions are readily available and easy to integrate with your existing IT infrastructure, allowing you to enhance the capabilities the IM C3510.
  2. Keep your device current
    Update your device as your business expands by downloading the latest features, upgrades, and applications as you need them.
  3. More energy savings
    A host of enhanced energy saving features, such as a new low-melt toner and lower fusing temperature, help to make this one of the most energy-efficient devices around.
  4. Reliable security
    Rely on the latest security features to protect your business critical documents and data.

Download PDF brochure


Specifications

Functions
Copy, print, scan, optional fax
Colour
Yes
HDD
256 GB SSD
Memory - standard
8 GB—4 GB mainframe + 4 GB Smart Operation Panel
Operation panel
10.1" Smart Operation Panel
Physical dimensions (WxDxH)—mainframe
587 x 701 x 963 mm
Weight—mainframe
99.3 kg
Standard input capacity (sheets)
1,200
Maximum input capacity (sheets)
4,850
Standard output capacity (sheets)
500
250—B4 or larger
Maximum output capacity (sheets)
1,625
Paper input configuration - standard
2 x 550-sheet paper trays, 100-sheet bypass tray, 220-sheet SPDF, duplex unit
Paper output configuration - standard
500-sheet face-down internal output tray
Supported media

Tray 1
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper

Tray 2
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high gloss coated paper, coated paper, envelope

Optional trays
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper

Bypass tray
Plain paper (paper type not displayed), recycled paper, special paper 1–3, colour paper, letterhead, cardstock, pre-printed paper, bond paper, high-gloss coated paper, envelope, coated paper, label paper

Maximum paper size
SRA3
Media weight (g/m2)
52–300
Interfaces - standard

Mainframe
10Base-T/100Base-Tx (Ethernet)
1000Base-T (Gigabit Ethernet)
USB Host Type A—2 ports
USB Type B—1 port

Smart Operation Panel
Bluetooth 5.21
 USB Host Type A—USB Flash memory
USB Host Type A—optional 1 port for USB keyboard

1
—Cannot be used for printing

Interfaces - optional

IEEE 802.11 a/b/g/n/ac Interface Unit Type M52
Device Server Option Type M52 (additional Ethernet/Gigabit Ethernet port)

Network protocols - standard
TCP/IP (IPv4, IPv6)
Copy speed
35 cpm
First copy time
4.5 seconds—black and white
6.9 seconds—colour
Copy resolution

100, 200, 300, 400, 600 dpi—scanning
1,200 x 1,200 dpi (maximum)—printing

Zoom range
25%–400% in 1% steps
Enlargement ratios
115%, 122%, 141%, 200%, 400%
Reduction ratios
93%, 87%, 82%, 71%, 61%, 50%, 25%
Duplex copy
Simplex to duplex, duplex to duplex—with SPDF, book to duplex, front and back to duplex
Book copy
Booklet, magazine, layout and booklet
Print speed colour
35 ppm
Print speed black and white
35 ppm
First print time
4.0 seconds black and white, 6.6 seconds colour
Print resolution

1,200 x 1,200 dpi / 4,800 x 1,200 dpi equivalent (maximum)

Page description languages (PDLs)

Standard
PCL 5c, PCL 6, PostScript 3 emulation, PDF Direct emulation

Optional
Genuine Adobe PostScript 3, PDF Direct from Adobe

Printer drivers

Standard
PCL 5c, PCL 6, PostScript 3 emulation

Optional
Genuine Adobe PostScript 3

Duplex printing
Standard
Mobile printing
Yes
Scan speed

Via SPDF
150 ppm—simplex, 200 x 200 dpi
120 ppm—simplex, 300 x 300 dpi
300 ppm—duplex, 200 x 200 dpi
220 ppm—duplex, 300 x 300 dpi

Scan methods

Scan to USB, Scan to email, Scan to folder, Scan to URL, Scan to MSB, Scan to FTP, Scan to PDF/A, Scan to digitally signed PDF, Scan to searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Colour scanning
Standard
Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi, 1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.
Scan to file types

Single- and multi-page TIFF
Single-page JPEG
Single- and multi-page PDF, PDF/A
Single- and multi-page high-compression PDF

Scan to email

Protocols
SMTP gateway, TCP/IP, POP, IMAP 4

Authentication

SMTP authentication, POP before SMTP authentication

Scan resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Scan to email file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

Scan to folder

Protocols
SMB, FTP

Resolution
100 dpi, 200 dpi (default), 300 dpi, 400 dpi, 600 dpi

Search for client folders
SMB—browsing directly to the designated folder
FTP—by folder name

Scan to folder file types
Single-page
TIFF, JPEG, PDF, PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Multi-page
TIFF, PDF (default), PDF/A, high-compression PDF, encrypted PDF, searchable PDF

Note: Optional OCR unit is required to support scanning to a searchable PDF.

TWAIN scanning

Scan mode
Standard, Photo, OCR, Filing
Note: Optional OCR unit required for OCR scanning.

Scan resolution
100–1,200 dpi
Note: 1,200 dpi scanning is supported only with A5 or smaller paper size.

Fax types
G3 fax, Internet fax (T.37), IP fax (T.38), LAN-Fax, Paperless fax, Direct SMTP fax
Fax circuit
PSTN, PBX
Fax compatibilty
ITU-T (CCITT), G3—maximum 3 lines
Fax modem speed
2,400 bps–33.6 Kbps—G3, standard with automatic shift down
Fax compression methods
MH, MR, MMR, JBIG
Fax resolution

Standard mode
200 x 100 dpi—8 x 3.85 lines/mm

Detail mode

200 x 200 dpi—8 x 7.7 lines/mm

Super Fine mode
400 x 400 dpi—8 x 15.4 lines/mm
400 x 400 dpi—16 x 15.4 lines/mm

Note: Super Fine mode is supported with the optional SAF memory.

G3 fax transmission speed
3 seconds approximately—JBIG, ITU-T No. 1 chart, TTI off, memory transmission
3 seconds approximately—MMR, ITU-T No. 1 chart, TTI off, memory transmission
Fax SAF memory capacity
Standard
4 MB—approximately 320 pages

With optional SAF memory

60 MB—approximately 4,800 pages
Fax memory backup
1 hour
Quick dials
2,000 numbers
Encryption

SSD, PDF, Secure print, WEP, WPA
Authentication password
Encryption of data sent via Scan to email and Fax forwarding (S/MIME)

Authentication

802.1x wired authentication
Administrator authentication
IEEE 802.11i security (WPA2)
IPv6
Quota setting
User authentication—Windows and LDAP via Kerberos, basic, user code
WiFi Protected Setup (WPS) support

Windows
PCL 5c, PCL 6, and PostScript 3
Windows 8.1
Windows 10
Windows Server 2012
Windows Server 2012 R2
Windows Server 2016
Windows Server 2019
Windows Server 2022
Macintosh
MacOS v10.15 or later—PostScript 3 only
Unix
PCL 5c, PostScript 3
Sun Solaris, HP-UX, SCO OpenServer, Red Hat Linux, IBM AIX
SAP
PCL 5c
R/3, S/4
Standard
@Remote Embedded
Web Image Monitor
Optional

Streamline NX V3
GlobalScan NX
Enhanced Locked Print NX
Card Authentication Package

Mobile apps
RICOH Smart Device Connector
Power source
220–240 V, 50/60 Hz—Asia Pacific
110 V, 60 Hz—Taiwan
Power consumption
1,700 W or less—maximum power, Asia Pacific
1,584 W or less—maximum power, Taiwan
500.5 W—operating power, black and white
543.6 W—operating power, colour
38.5 W—Ready Mode
0.3 W—Energy Saver Mode (Sleep Mode)
Typical Electricity Consumption (TEC)
0.35 kWh
Warm-up time

24 seconds

Recovery time

From Energy Saver Mode
6.2 seconds

Green labels
The Thai Green Label Scheme
Other environmental features
Eco-friendly indicator, Energy Saver Timer, System Reset Timer
