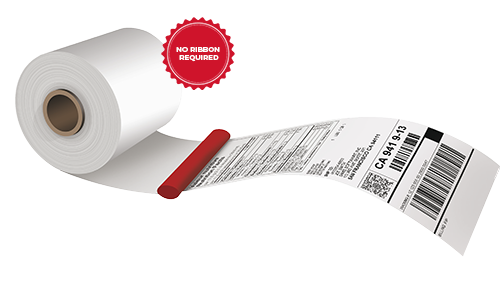

    135FTS-L100Ricoh Direct Thermal Paper (No ribbon required)
    		 Item UnitSpecificationTest Method
     Basis weight g/m283 ± 5ISO 536
     Thickness μm102 ± 5ISO 534
     Tear Strength MD N0.25 min  ISO 1974
     CDN  0.20 min
     Clark stiffness MD- 40 min  JIS P-8143
     CD -50 min
     Whiteness
    		%85 minISO 2470
     Smoothnesss1000 min.Oken type instrument

    135FTS-L100

    Restriction of Hazardous Substances

     135FTS-L100

    Material Safety Data Sheets

     135FTS-L100

    BPA Free

     135FTS-L100

    Chemicals Standards

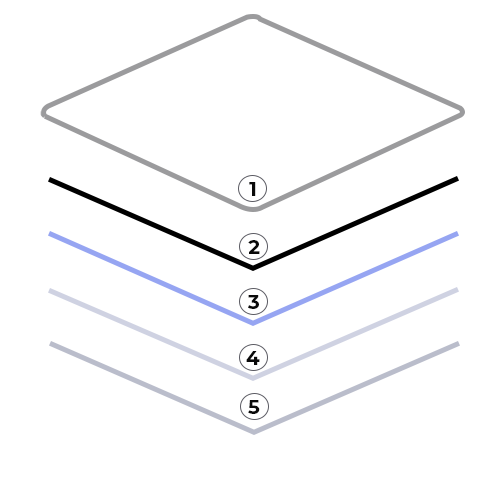

    The different layers of our thermal paper

    At Ricoh, our thermal papers consists of five different chemical layers that create the unique thermal and protection properties. The following is an overview of these layers. Please note that this overview does not include information on the adhesive layer or the Silicon release liner.


    135FTS-L100
    1. Top coat
      Protection of thermal image. Image preservation and pre-printability
    2. Thermal coat
      Image density, sensitivity, and preservation
    3. Under
      Smoothing coat that determines sensitivity, density and brightness of the image
    4. Basis paper of film
    5. Back coat
      Protection against outside aggressions

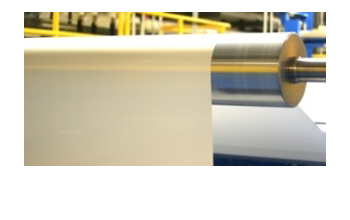

    Thermal paper is relatively fragile. Because of this, certain precautions must be followed to prevent any premature deterioration during storage or while handling until the end of its use.


    135FTS-L100
    Care in Storage
    Before unpacking:

    Ricoh Thermal papers can be unused without any deterioration for a long time after production if they are stored in the dark at temperatures that do not exceed 95° F and a relative humidity not exceeding 85%.

    After Unpacking:

    In addition to the above care, avoid long term exposure to direct sunlight and strong fluorescent light sources. These light sources can generate some background coloration if left unchecked. Do not place Ricoh Thermal paper near heat sources.

    Care in Handling

    Avoid any contact with materials composed of, or containing, solvents or plasticizer. Avoid/ minimize any scratching or rubbing as this may cause unwanted thermal revelation. Avoid any contact with water.
